ST235RAG23NJRZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> ST235RAG23NJRZ

ST235RAG23NJRZ: DescriptionGeneral Purpose Inductor, 0.023uH, 5%, Ceramic-Core, 0402; CategoryPassive components inductor; File Size139KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

ST235RAG23NJRZ Overview

General Purpose Inductor, 0.023uH, 5%, Ceramic-Core, 0402

ST235RAG23NJRZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0402
structure	Chip
core material	Ceramic
DC Resistance	0.165 Ω
Nominal inductance(L)	0.023 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.61 mm
Package length	1.14 mm
Package form	SMT
Package width	0.61 mm
method of packing	TR, Paper, 7 Inch
Minimum quality factor (at nominal inductance)	25
self resonant frequency	1750 MHz
series	ST235RAG
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

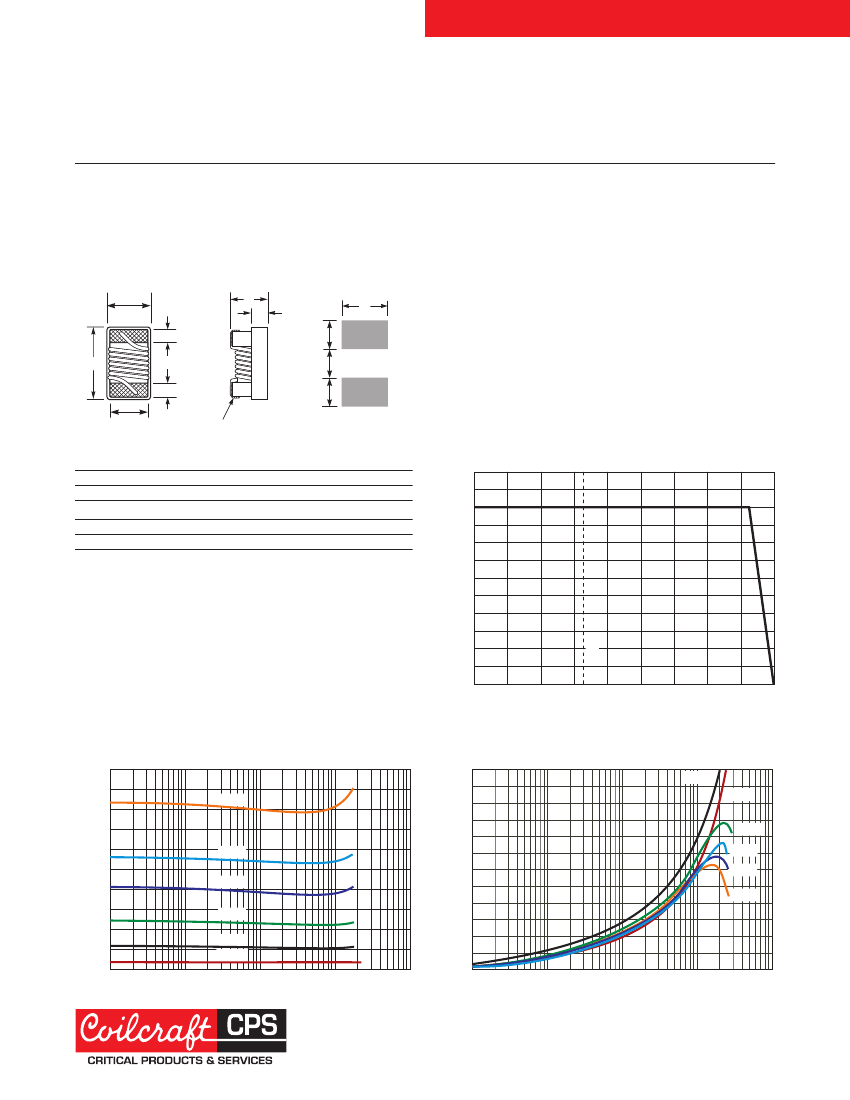

0402 CHIP INDUCTORS

Chip Inductors for Critical Applications

ST235RAG

■

Higher Q and lower DCR than other 0402 inductors

Very high SRF values – as high as 16 GHz

Excellent current handling capability – up to 2300 mA

39 inductance values from 1.0 to 40 nH

overall

Core material

Ceramic

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

0.7 – 1.0 mg

Ambient temperature

–40°C to +125°C with

Imax

current, +125°C

to +140°C with derated current

Storage temperature

Component: –55°C to +140°C.

Tape and reel packaging: –55°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL)

+25 to +125 ppm/°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

terminal

Terminal wraparound:

approx 0.007/0,18 both ends

Suggested

Land Pattern

Packaging

2000 per 7″ reel Paper tape: 8 mm wide, 0.66 mm thick,

2 mm pocket spacing

A max

0.045

1,14

0.010

0,25

0.020

0,51

0.020 – 0.028

0,51 – 0,71

0.008

0,20

0.024

0,61

0.026

0,66

C max

0.024

0,61

0.014

0,36

Current Derating

120

110

100

inches

Percent of rated

rms

0.020

0,51

inches

-40

-20

100

120 140

Note: Dimensions are before optional solder application. For maximum

overall dimensions including solder, add 0.0025 in / 0,064 mm to

and 0.006 in / 0,15 mm to

and

Ambient temperature (°C)

Typical L vs Frequency

39 nH

Typical Q vs Frequency

120

110

100

5.6 nH

2.0 nH

11 nH

27 nH

19 nH

39 nH

Inductance (nH)

27 nH

19 nH

11 nH

5.6 nH

2.0 nH

100

1000

10000

Q Factor

25°C

100

1000

10000

Frequency (MHz)

Document ST526-1 Revised 06/13/13

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specifications subject to change without notice.

Please check our web site for latest information.

1102 Silver Lake Road

Cary, IL 60013

Phone 800-981-0363

Fax 847-639-1508

Email cps@coilcraft.com

www.coilcraft-cps.com
