KMM377S1620CT3-GH datasheet, PDF

KMM377S1620CT3-GH: DescriptionSynchronous DRAM Module, 16MX72, 6ns, CMOS; Categorystorage storage; File Size217KB，12 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KMM377S1620CT3-GH Overview

Synchronous DRAM Module, 16MX72, 6ns, CMOS

Parameter Name	Attribute value
package instruction	DIMM, DIMM168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	6 ns
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	1207959552 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	72
Number of functions	1
Number of ports	2
Number of terminals	168
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum standby current	0.02 A
Maximum slew rate	2.45 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

KMM377S1620CT3

Revision History

Revision 0.1 (May. 24, 1999)

- Changed "Detail C" in PCB Dimension.

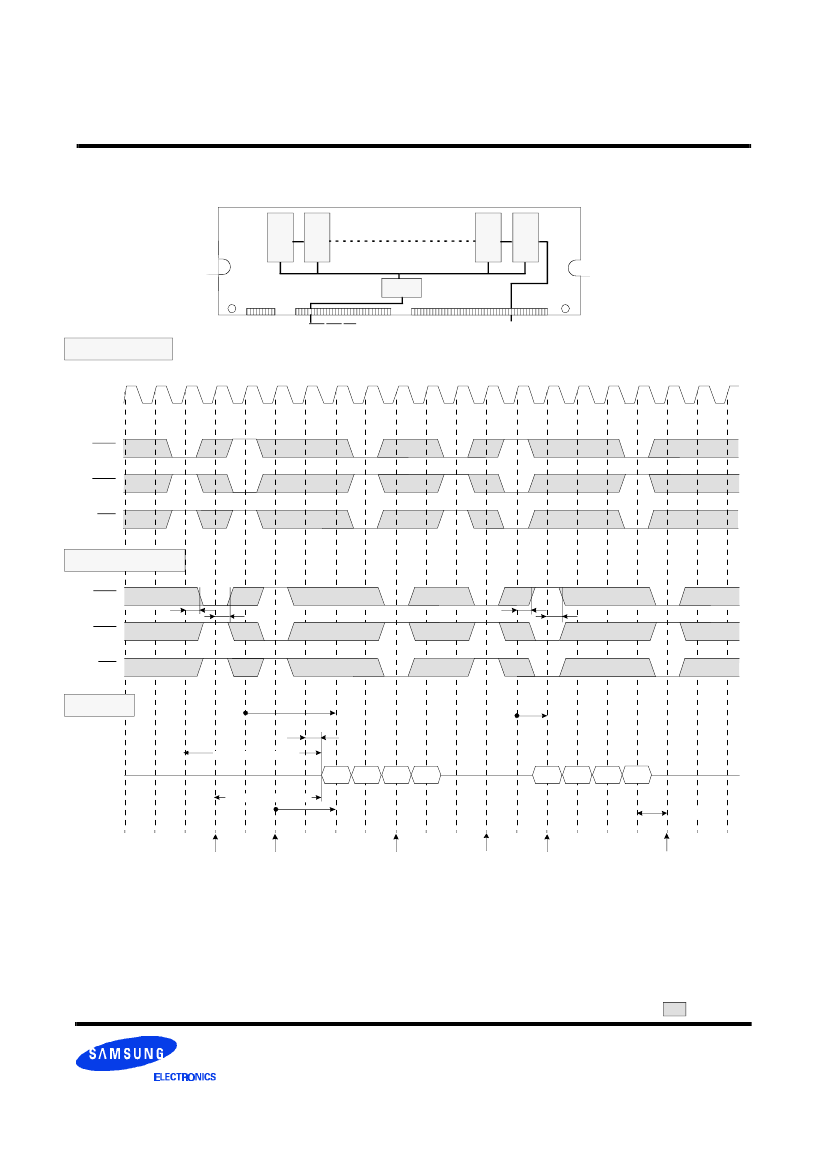

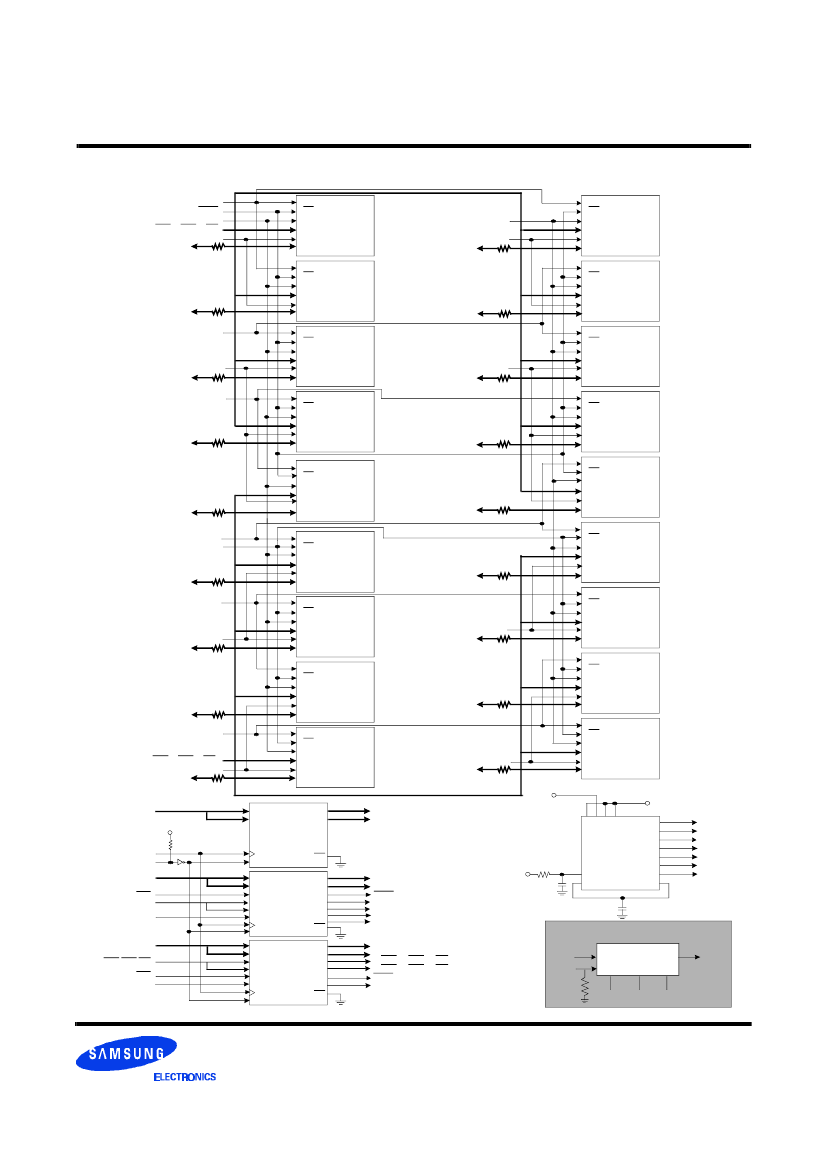

PC100 Registered DIMM

Rev. 0.1 May. 1999

	KMM377S1620CT3-GH	KMM377S1620CT3-GL
Description	Synchronous DRAM Module, 16MX72, 6ns, CMOS	Synchronous DRAM Module, 16MX72, 6ns, CMOS
package instruction	DIMM, DIMM168	DIMM, DIMM168
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	6 ns	6 ns
Maximum clock frequency (fCLK)	100 MHz	100 MHz
I/O type	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168
memory density	1207959552 bit	1207959552 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	72	72
Number of functions	1	1
Number of ports	2	2
Number of terminals	168	168
word count	16777216 words	16777216 words
character code	16000000	16000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	16MX72	16MX72
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
refresh cycle	4096	4096
Maximum standby current	0.02 A	0.02 A
Maximum slew rate	2.45 mA	2.45 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
