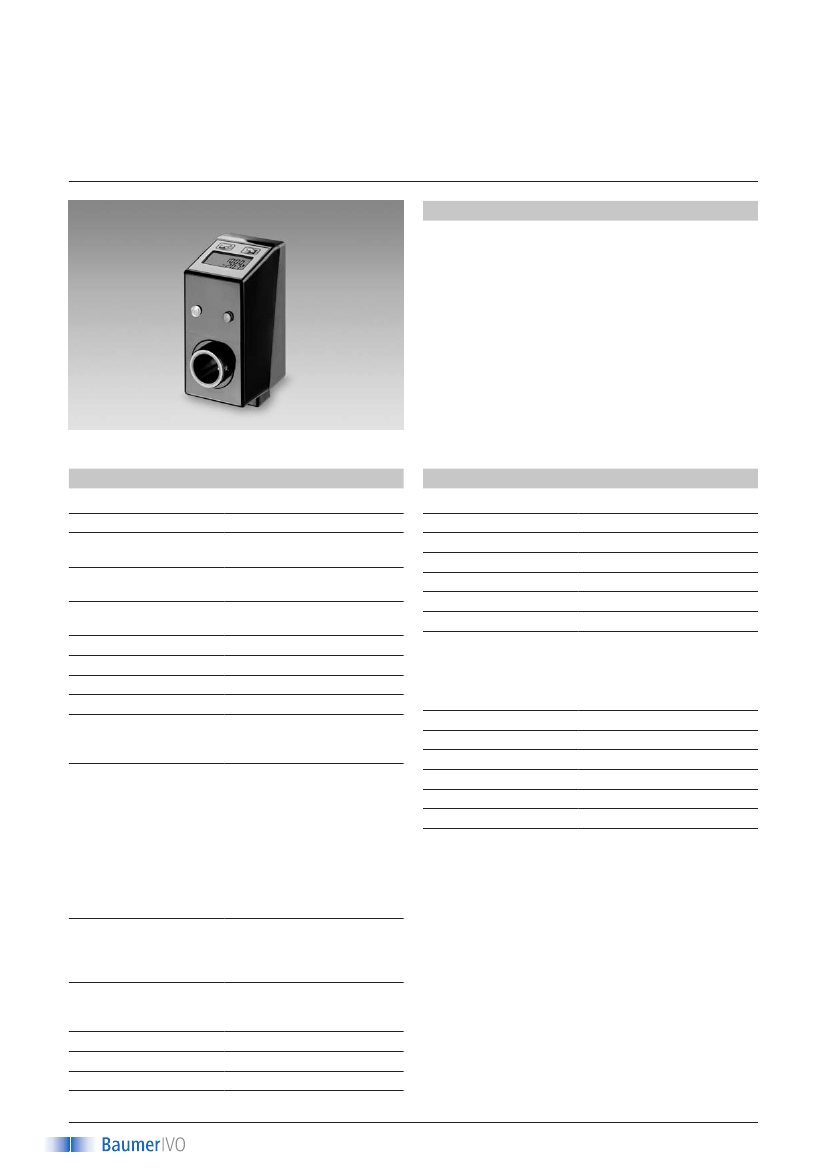

Spindle Position Displays
Hollow shaft max. ø14 mm, with infrared interface
Format alignment by power tool, interface RS485
N 153
Features
– Infrared interface for format alignment by power tool
– Absolute multiturn measuring system
– Display: LCD backlit, two lines
– Actual value and target display
– LED status display
– Interface RS485
– Resolution: 1440 steps/revolution ±4096 revolutions
– Two operating keys for format alignment touch by
touch
N 153 with cable output
Technical data - electrical ratings
Voltage supply
Current consumption
Display
Measuring principle
Measuring range
Steps per turn
Number of turns
Spindle pitch
Interface
Data memory
24 VDC ±10 %
≤40 mA
LCD, 7-segment display,
2-lines, backlit
Absolute multiturn measuring
system
-99.99...+999.99 mm
-9.999...+99.999 inch
1440
4096 / 12 bit
≤14 mm
RS485 (ASCII protocol)
Parameter buffer: EEPROM
Current value buffer: >10 years
by integrated 3 V lithium battery
Display position horizontal/
vertical
Measuring unit mm/inch
Counting direction
Spindle pitch
Spindle tolerance
Positioning direction
Direction arrows
Tolerance window
Round up/down
Two softkeys for format
alignment
Connected to power tool by
infrared interface
Protection class II
Overvoltage category II
Pollution degree 2
DIN EN 61000-6-3
DIN EN 61000-6-2
UL/cUL
Operation / keypad
Housing type

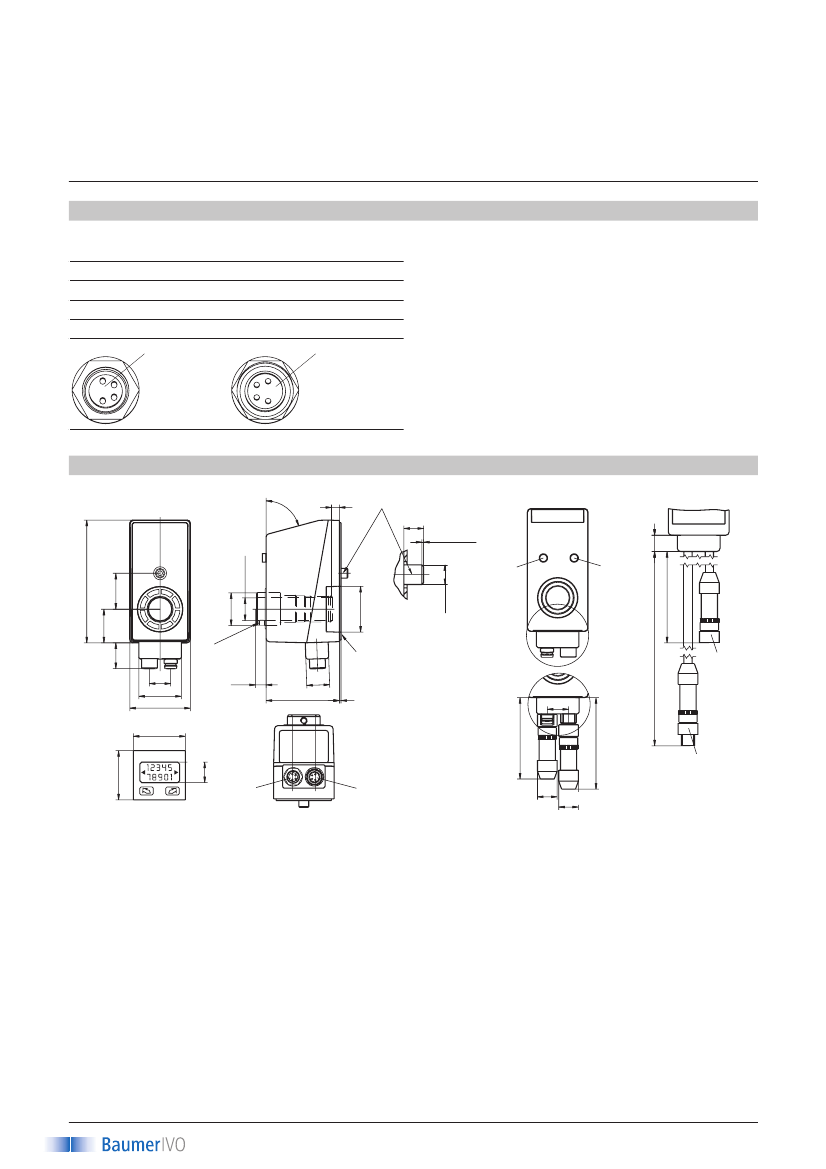

Dimensions W x H x L
Mounting
Weight approx.
Material
Technical data - mechanical design
Hollow shaft
Operating speed
Protection DIN EN 60529
Operating temperature
Storing temperature
Relative humidity
Torque support
E-connection
ø14 mm
≤600 rpm (short-term)
IP 65
-10...+50 °C
-20...+70 °C
80 % non-condensing
Torque pin provided at housing
- Male/female connector M8,
4-pin
- Cable output (30/15 cm) with
male/female connector M8,
4-pin
Membrane with two keys
Surface-mount with hollow shaft
Surface-mount with hollow shaft
120 g
Polyamide black, UL 94V-0
Subject to modification in technic and design. Errors and omissions excepted.
30/10/2008
Programmable
parameters
37 x 75 x 45 mm
Motive positioning
Standard
DIN EN 61010-1
Emitted interference
Interference immunity
Approval
1
www.baumerivo.com
Hollow shaft max. ø14 mm, with infrared interface
Format alignment by power tool, interface RS485
Spindle Position Displays
N 153
Part number
N 153.
1
3
A
A
01
Description
multicon AccuDrive is an economical system for mobile,
motive format alignment. By AccuDrive positioning of shafts
to the desired format is quick, accurate and less fussy hand
crank operations. Saving setup times and avoiding editing
errors are consequently the most convincing arguments.
The electrically commutated professional power tool ASMIR
serves as mobile actuator that communicates with N 153
spindle position displays by infrared interface. Red and
green status LEDs provided at the position display indicate
the operator which shafts require alignment. A flashing LED
indicates the positioning order.
The power tool is a vital help in aligning the respective
shafts to the new format. Select the desired positioning di-
rection by aid of the two pushbuttons provided at the power
tool. Press and hold the start button to start the positioning
operation at slow speed with increasing acceleration. This
way, the operator is able to proceed the positioning opera-
tion in direct sight with an accuracy of ±1/100 mm.
Any shaft positions once effected can be filed under a
parameter profile in the control to be recalled any time. By
serial interface maximum 32 spindle position displays may
be networked to PC or PLC. Through solutions are real-
ized by memory controller N 242 as memory and operating
terminal where max. 100 format profiles can be entered and
saved by Teach-in.
Hollow shaft
A Hollow shaft ø14 mm
Display
A Inclined
Voltage supply
3 24 VDC
E-connection
0
Connector output M8
1
Cable output M8
Interface
1 RS485
Accessories
Connectors and cables
(page %S)
Z 178.A01
Z 178.AW1
Z 178.B01
Z 178.D05
Z 178.S01
Z 178.V01
Adaptor cable between cable connector M8
and female M16, 1 m
Cable connector M8, 4-pin, less cable with
integrated terminating resistor 120 Ω
Mating connector M8, 4-pin, less cable
Data and supply cable M8, Master to N 150
and N 155, 5 m
Cable connector M8, 4-pin, less cable
Coupling cable 1 m between M8 and M8
2
www.baumerivo.com
30/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
