PA560 datasheet, PDF - EEWORLD Datasheet

PA560: DescriptionWide Band Low Power Amplifier, 5MHz Min, 400MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size417KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

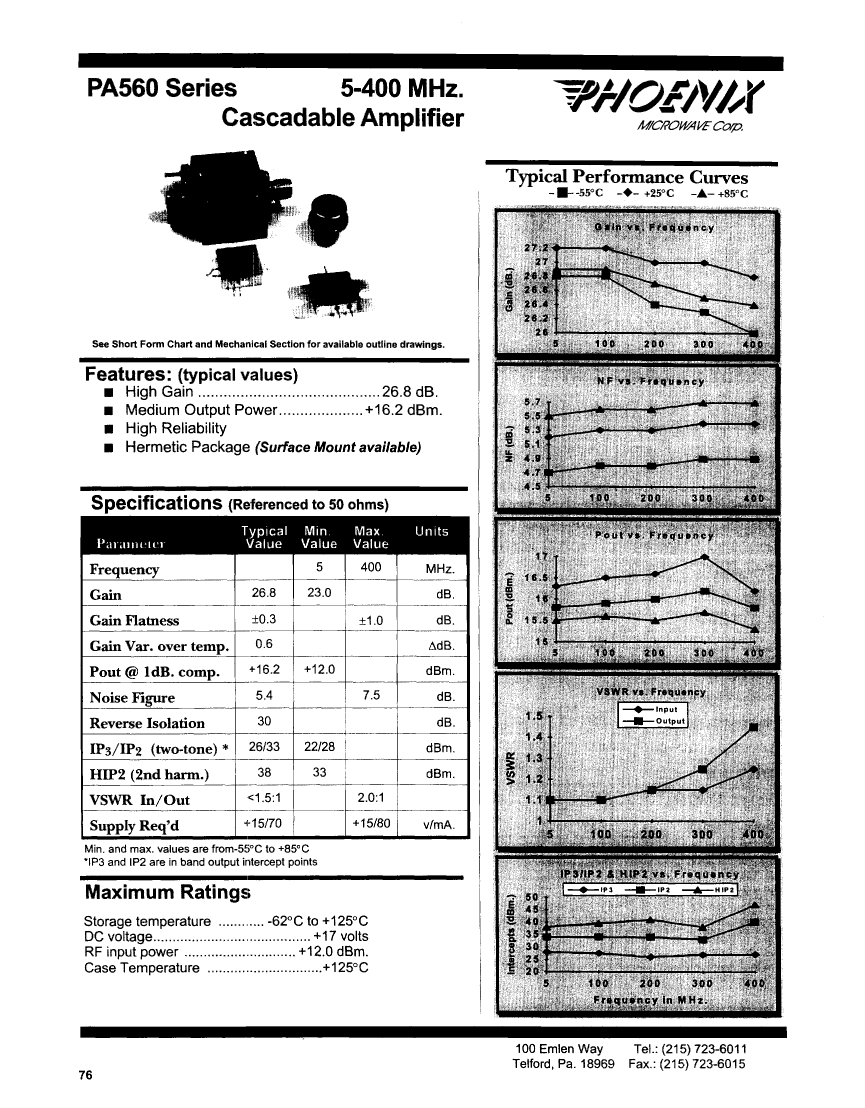

PA560 Overview

Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	12 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

	PA560	PA560CS	PA560C	PA560FH	PA560F	PA560MH	PA560M
Description	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	12 dBm	12 dBm	12 dBm	12 dBm	12 dBm	12 dBm	12 dBm
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2
Base Number Matches	1	1	1	1	1	1	1
