DDU-7C-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DDU-7C-100

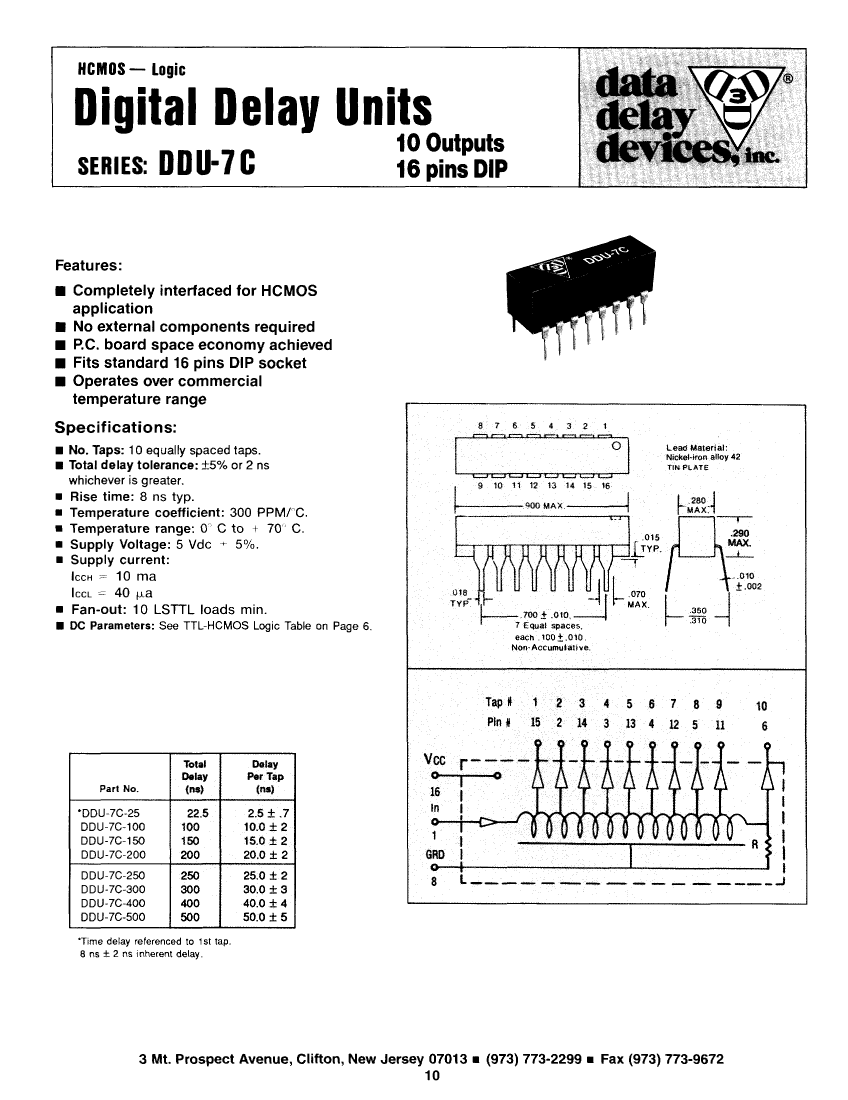

DDU-7C-100: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16; Categorylogic logic; File Size94KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

DDU-7C-100 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16

DDU-7C-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compliant
Other features	MIN. FAN OUT OF 10 LSTTL LOADS
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e3
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	10 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	100 ns
Certification status	Not Qualified
Maximum seat height	7.747 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	100 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DDU-7C-100 Related Products

	DDU-7C-100	DDU-7C-25	DDU-7C-250	DDU-7C-400	DDU-7C-500	DDU-7C-200	DDU-7C-300	DDU-7C-150
Description	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16	Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDIP16, DIP-16
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP16,.3	DIP,	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16	16	16	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	MIN. FAN OUT OF 10 LSTTL LOADS	INPUT TO 1ST TAP DELAY = 8+-2NS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1	1
Number of taps/steps	10	10	10	10	10	10	10	10
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
programmable delay line	NO	NO	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN	Tin (Sn)	TIN	TIN	TIN	TIN	TIN	TIN
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Total delay nominal (td)	100 ns	30.5 ns	250 ns	400 ns	500 ns	200 ns	300 ns	150 ns
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Encapsulate equivalent code	DIP16,.3	-	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	10 mA	-	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Prop。Delay @ Nom-Sup	100 ns	-	250 ns	400 ns	500 ns	200 ns	300 ns	150 ns
Base Number Matches	1	1	1	1	1	1	1	-
