L78M12CS13TR datasheet, PDF - EEWORLD Datasheet

L78M12CS13TR: Description12V FIXED POSITIVE REGULATOR, PSSO3, SOT-194, 3 PIN; CategoryPower/power management The power supply circuit; File Size184KB，9 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

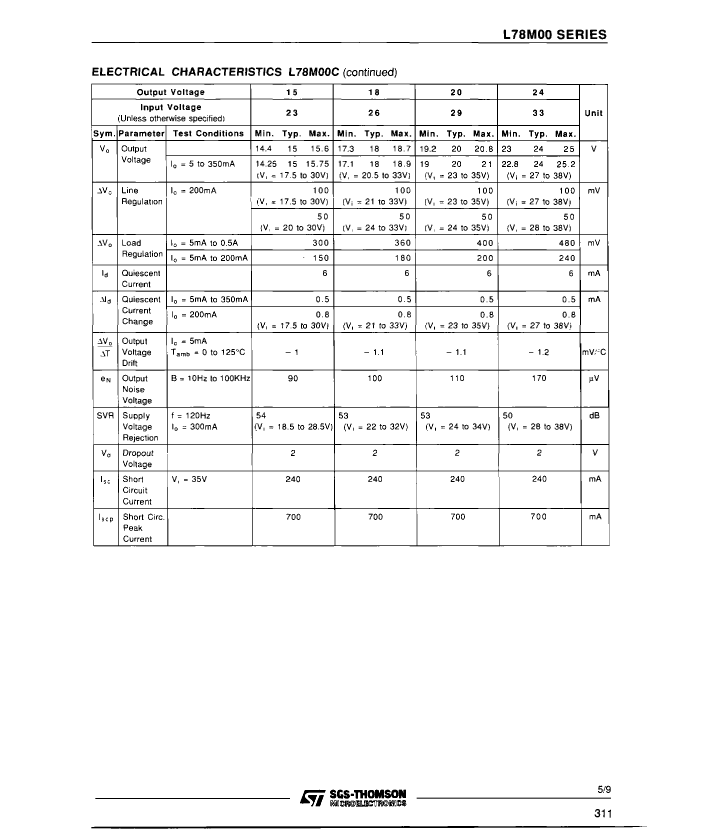

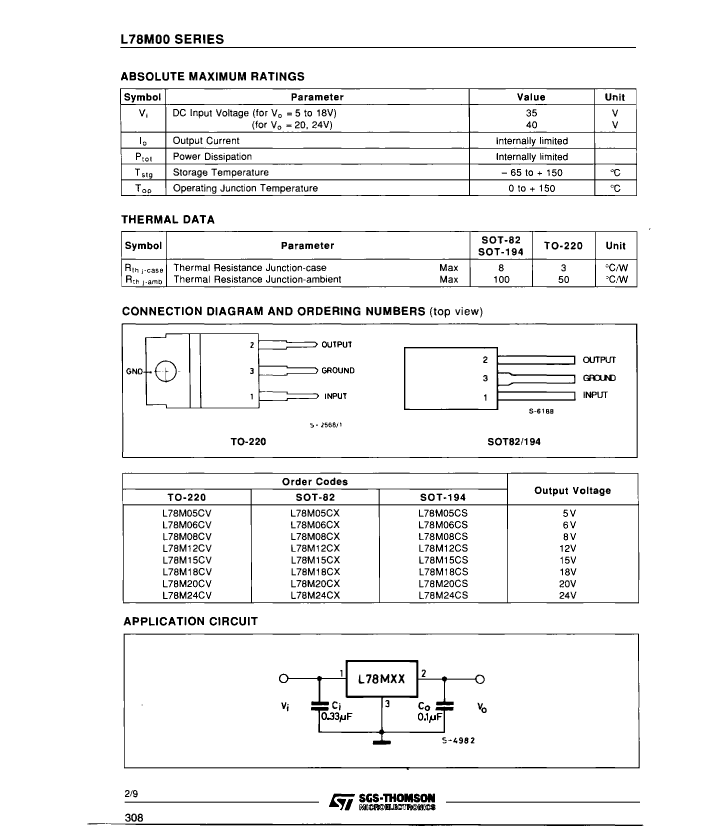

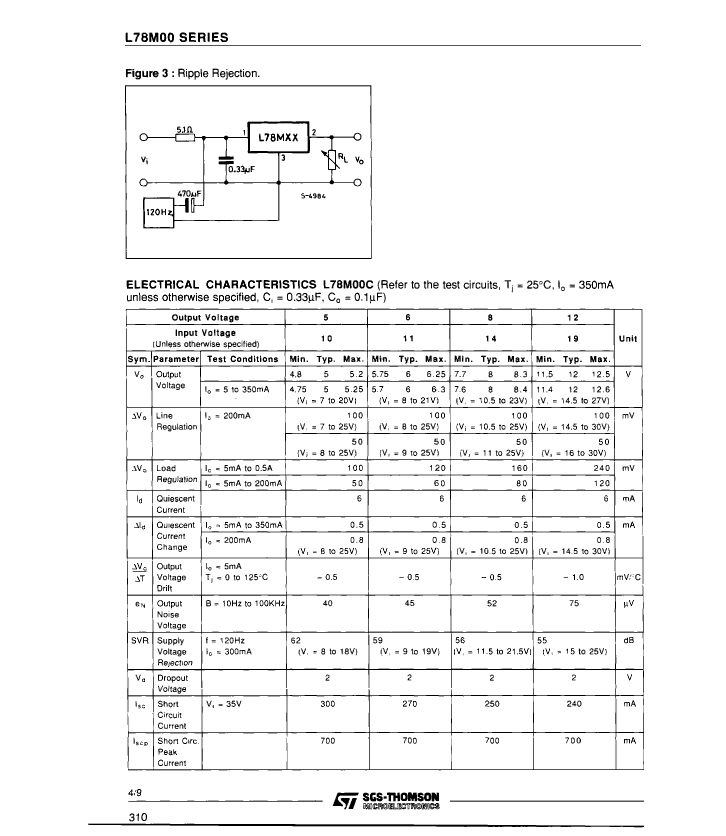

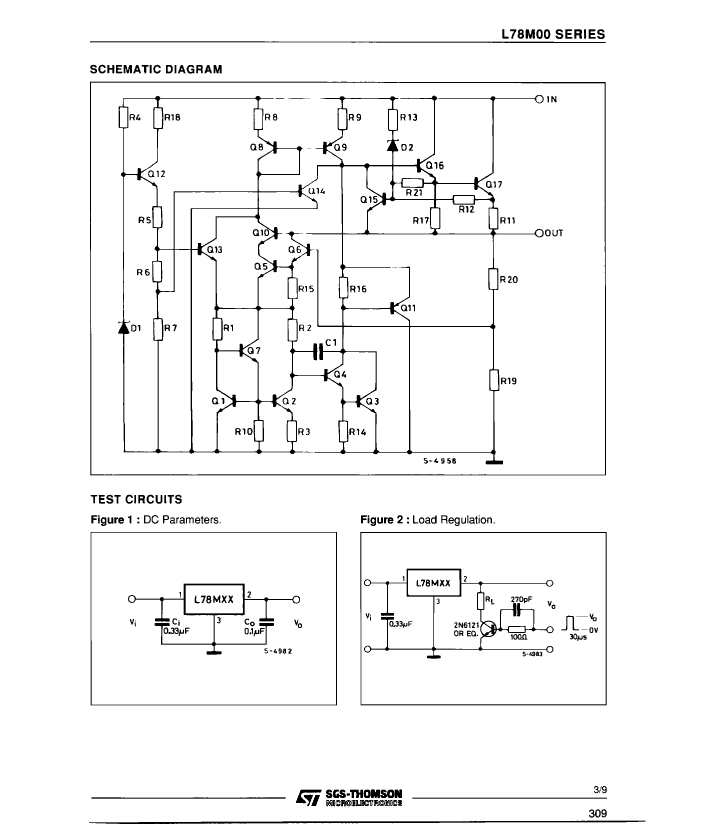

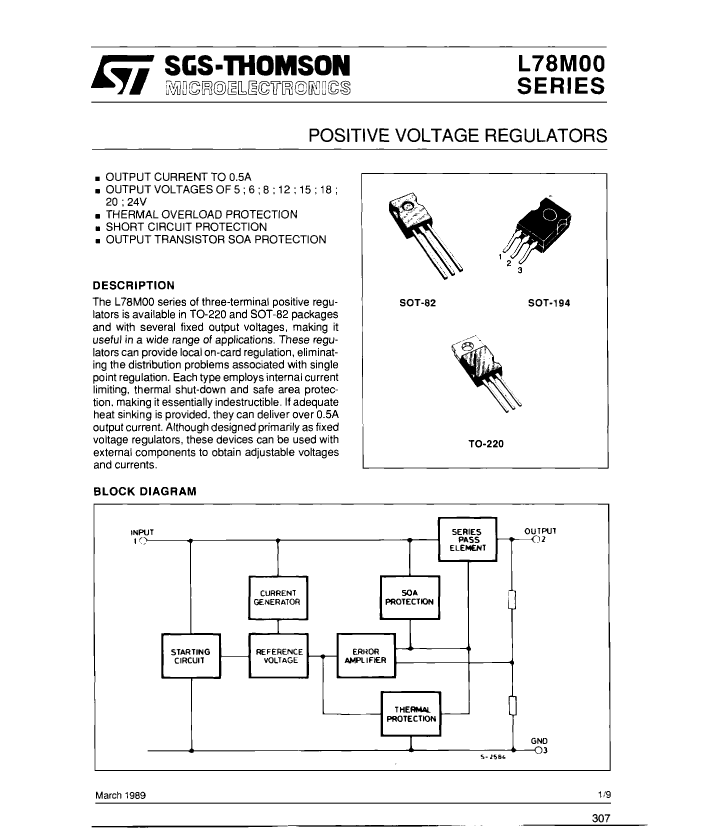

L78M12CS13TR Overview

12V FIXED POSITIVE REGULATOR, PSSO3, SOT-194, 3 PIN

Parameter Name	Attribute value
Parts packaging code	SOT
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	30 V
Minimum input voltage	14.5 V
JESD-30 code	R-PSSO-G3
length	10.9 mm
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min
Maximum output current 1	0.5 A
Maximum output voltage 1	12.6 V
Minimum output voltage 1	11.4 V
Nominal output voltage 1	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2.8 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.2 mm
Terminal location	SINGLE
width	7.6 mm
Base Number Matches	1

	L78M12CS13TR	L78M05CS13TR	L78M08CS13TR
Description	12V FIXED POSITIVE REGULATOR, PSSO3, SOT-194, 3 PIN	5V FIXED POSITIVE REGULATOR, PSSO3, SOT-194, 3 PIN	8V FIXED POSITIVE REGULATOR, PSSO3, SOT-194, 3 PIN
Parts packaging code	SOT	SOT	SOT
Contacts	3	3	3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum input voltage	30 V	25 V	25 V
Minimum input voltage	14.5 V	7 V	10.5 V
JESD-30 code	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3
length	10.9 mm	10.9 mm	10.9 mm
Number of functions	1	1	1
Number of terminals	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C
Maximum output current 1	0.5 A	0.5 A	0.5 A
Maximum output voltage 1	12.6 V	5.25 V	8.4 V
Minimum output voltage 1	11.4 V	4.75 V	7.6 V
Nominal output voltage 1	12 V	5 V	8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2.8 mm	2.8 mm	2.8 mm
surface mount	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	2.2 mm	2.2 mm	2.2 mm
Terminal location	SINGLE	SINGLE	SINGLE
width	7.6 mm	7.6 mm	7.6 mm
Base Number Matches	1	1	1
