6880: Description1 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, JACK; CategoryThe connector; File Size294KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

6880 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6880	-	-	View	Buy Now

6880 Overview

1 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, JACK

6880 Parametric

Parameter Name	Attribute value
Contact materials	BRASS
Total number of contacts	1
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	JACK
Manufacturer Series	6880
Contact surface matching	GOLD
Contact coated terminals	GOLD
Connection Type	COMBINATION LINE CONNECTOR
Connector male and female	FEMALE
Installation type	CABLE
Shell material	ZINC ALLOY, NICKEL PLATED

Preview

Download Datasheet

View All

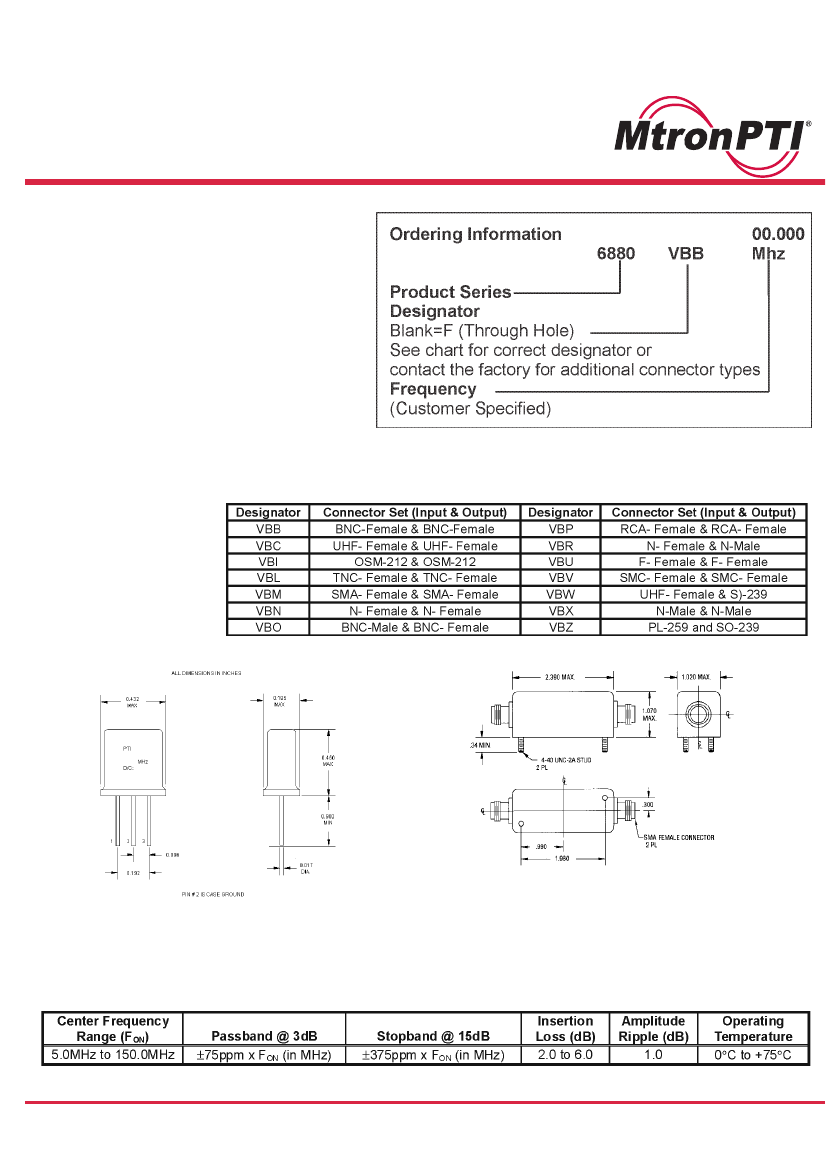

6880 Series

Spectrum Cleanup Filter: 5.0MHz to 150 MHz

•

Proportional bandwidth 2-pole

crystal filter - 3dB passband &

15dB stopband widen proportional

to center frequency

Low SSB phase noise (-122dBc/

Hz @ 10Hz offset, -132dBc/Hz @

100Hz offset and -132dBc/Hz @

1000Hz offset)

Applications where clock/timing

chain signal noise reduction is

primary goal

•

The ordering convention for a connectorized 6880 Series filters with SMA-Female connectors on both the input and output

would be 6880VBM @ 100.00MHz. For other, most popular connector types, reference the table and for others not listed

consult the factory.

6880 F Package

(2 pole F case)

6880 Connectorized Package

(50Ω Terminated)

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 8-10-07
