3-1734819-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1734819-6

3-1734819-6: DescriptionTELECOM AND DATACOM CONNECTOR, JACK; CategoryThe connector The connector; File Size475KB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1734819-6 Overview

TELECOM AND DATACOM CONNECTOR, JACK

3-1734819-6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1979676138
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.435 inch
subject depth	0.598 inch
body length	0.773 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	750 Cycles
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.079 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8

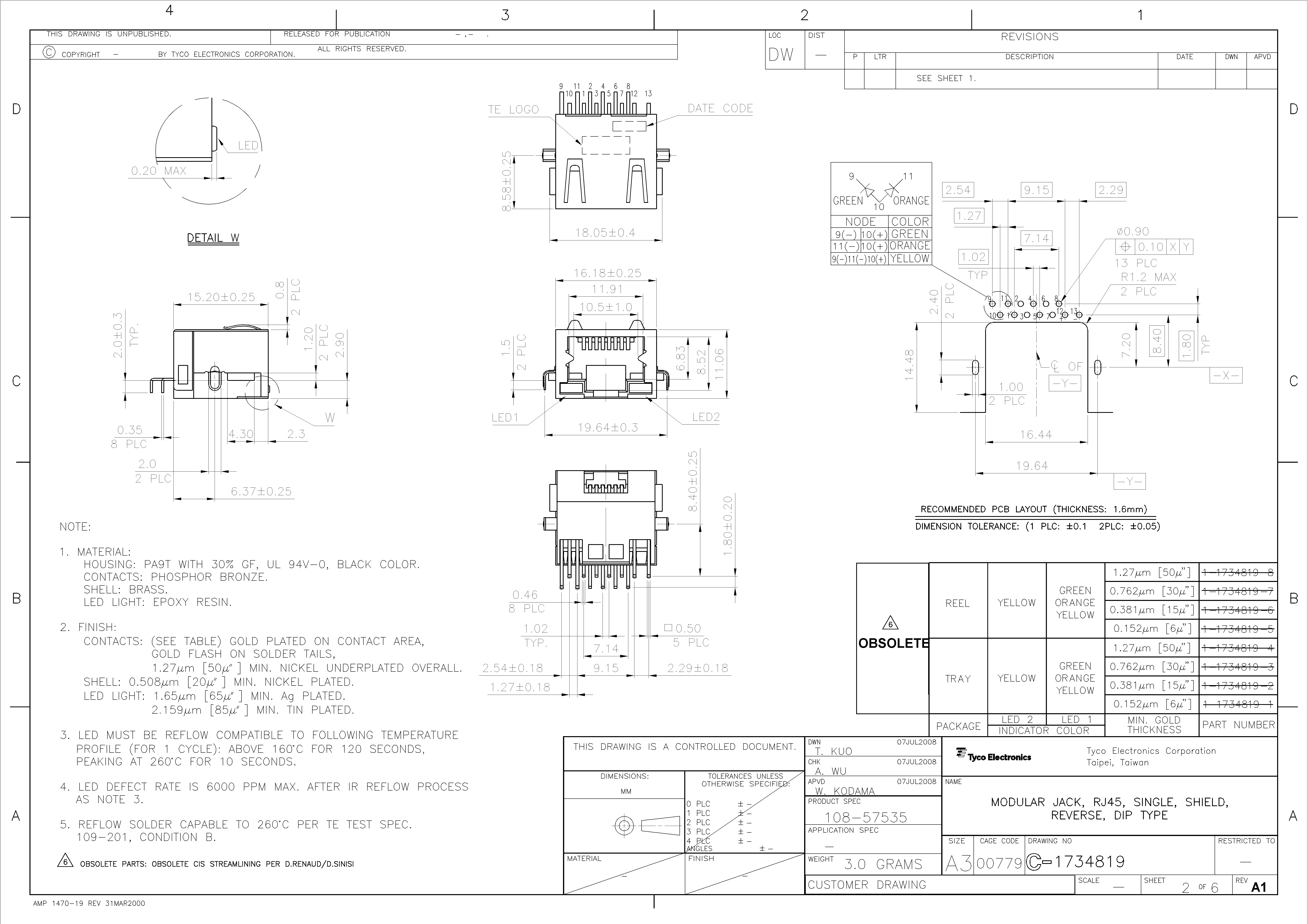

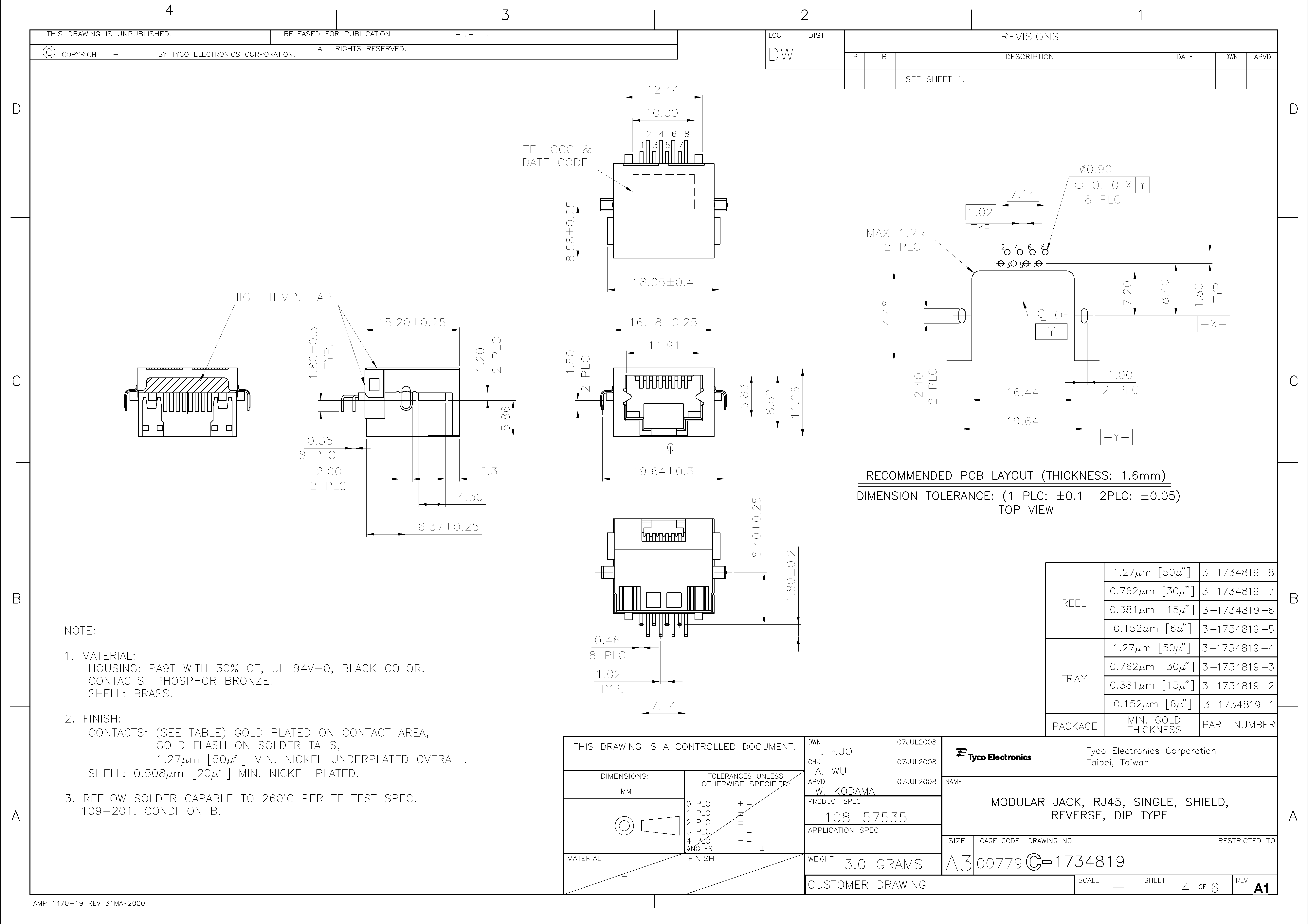

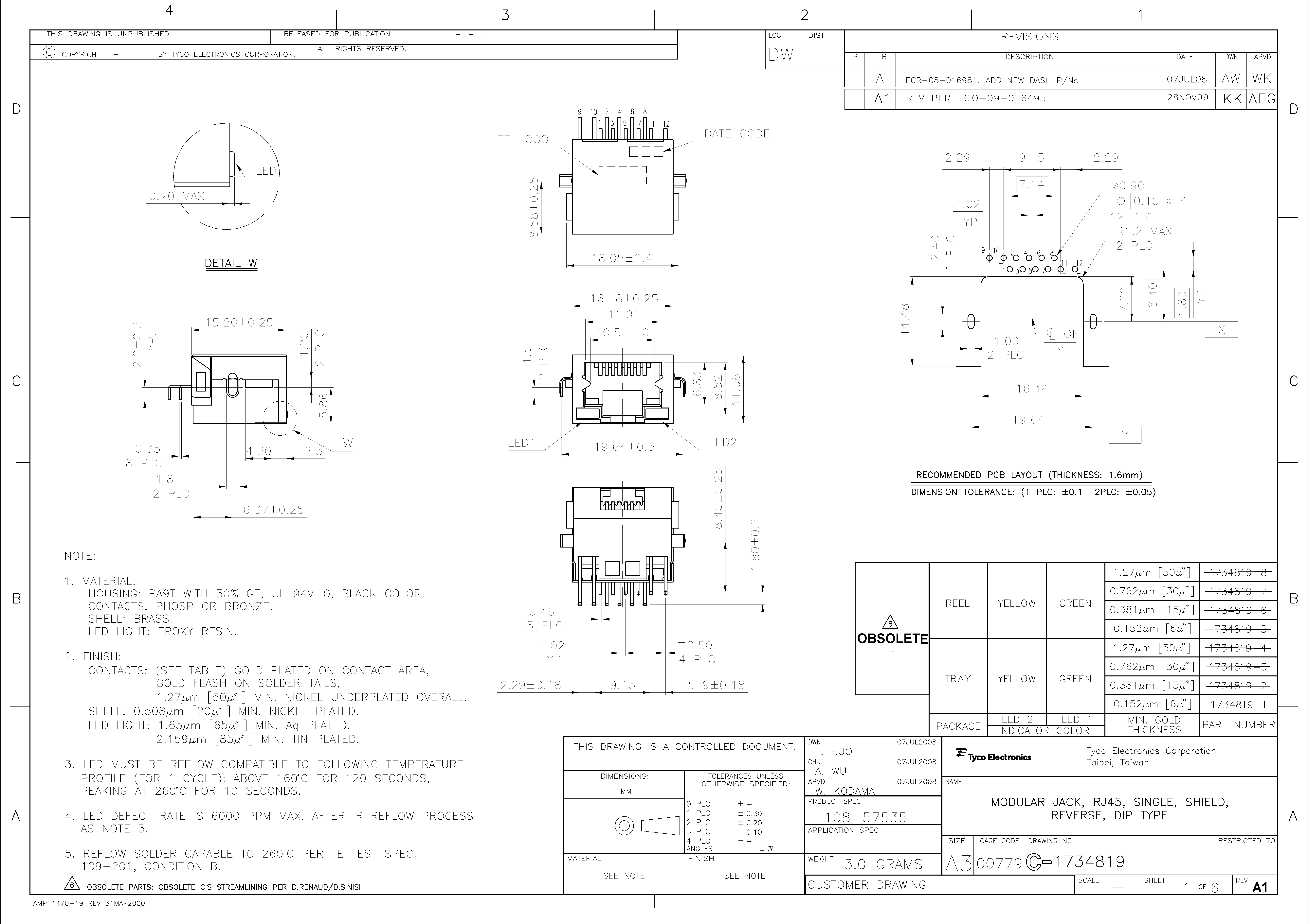

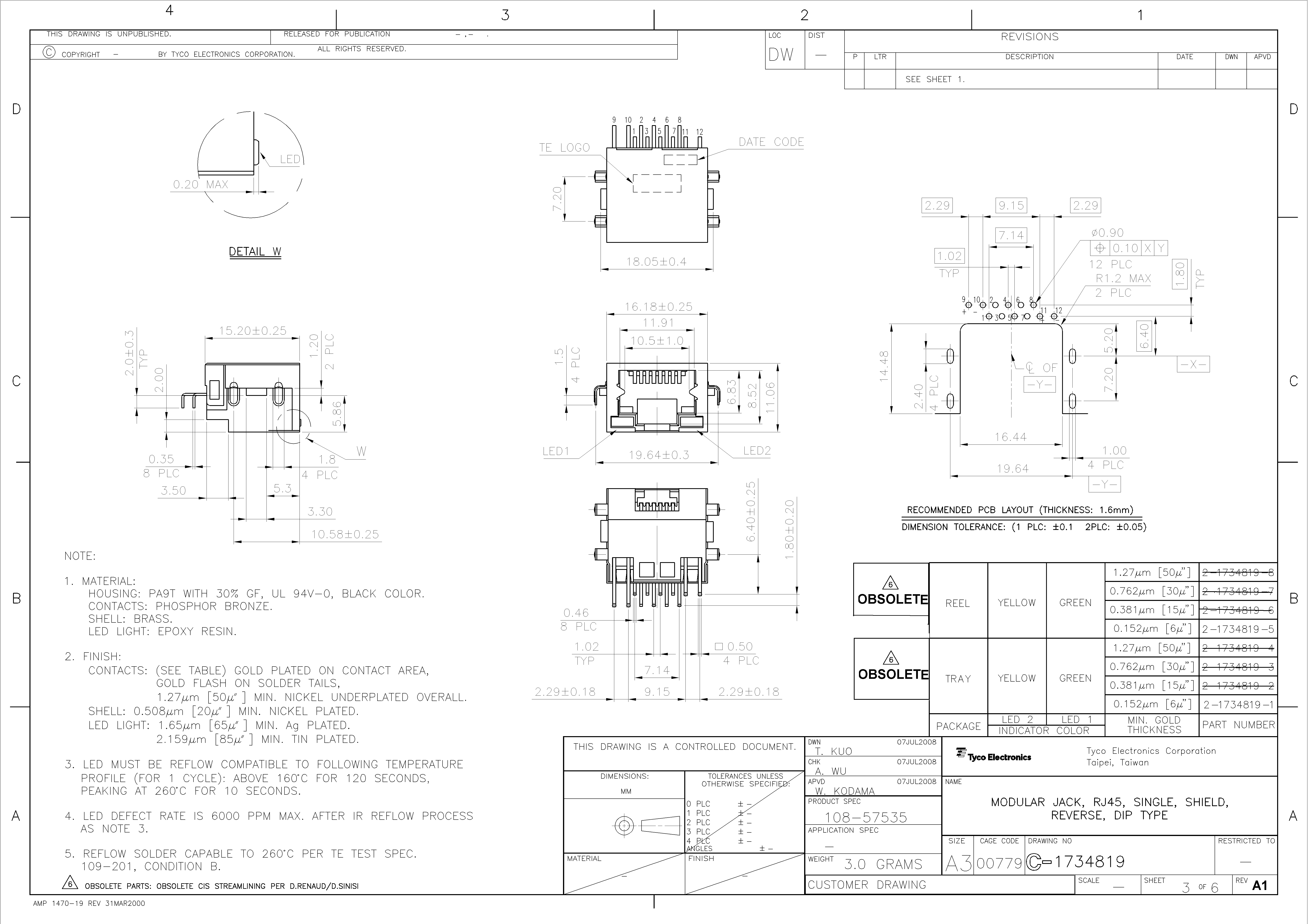

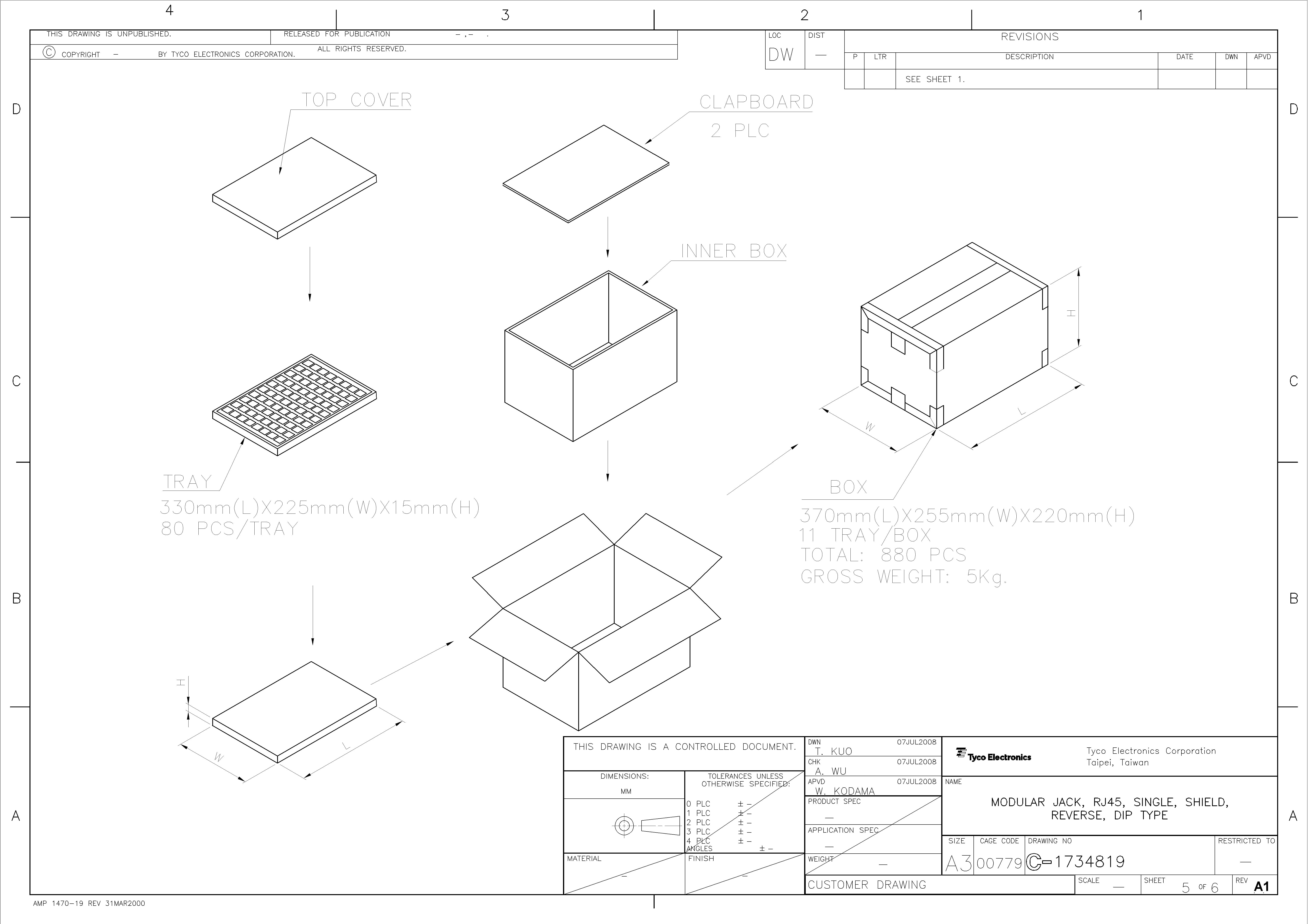

Preview

Download Datasheet

View All

3-1734819-6 Related Products

	3-1734819-6	3-1734819-4	3-1734819-2	3-1734819-3	2-1734819-5	3-1734819-8	2-1734819-1	M83513/28-A02AW	3-1734819-7
Description	TELECOM AND DATACOM CONNECTOR, JACK	TELECOM AND DATACOM CONNECTOR, JACK	TELECOM AND DATACOM CONNECTOR, JACK	TELECOM AND DATACOM CONNECTOR, JACK	TELECOM AND DATACOM CONNECTOR, JACK	TELECOM AND DATACOM CONNECTOR, JACK	TELECOM AND DATACOM CONNECTOR, JACK	D Microminiature Connector, 9 Contact(s), Male, Solder Terminal, Locking, Plug,	TELECOM AND DATACOM CONNECTOR, JACK
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	incompatible	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	compli	unknown	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	STANDARD: MIL-DTL-83513	ROHS COMPLIANT
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	#2-56 UNC	PEG
body width	0.435 inch	0.435 inch	0.435 inch	0.435 inch	0.435 inch	0.435 inch	0.435 inch	0.31 inch	0.435 inch
subject depth	0.598 inch	0.598 inch	0.598 inch	0.598 inch	0.598 inch	0.598 inch	0.598 inch	0.355 inch	0.598 inch
body length	0.773 inch	0.773 inch	0.773 inch	0.773 inch	0.773 inch	0.773 inch	0.773 inch	0.785 inch	0.773 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	PLUG	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	D MICROMINIATURE CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	32 mΩ	30 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	RND PIN-SKT	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	600VAC V	1400VAC V
Durability	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles	500 Cycles	750 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	5000000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED LIQUID CRYSTAL POLYMER/POLYPHENYLENE SULFIDE	GLASS FILLED POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	YES	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	15u inch	50u inch	15u inch	30u inch	6u inch	50u inch	6u inch	50u inch	30u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	3 A	1.5 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	UL, CSA	MIL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MIL-C-83513	COMMERCIAL
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	ALUMINUM ALLOY	BRASS
Terminal length	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.14 inch	0.079 inch
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.54 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	8	8	8	9	8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free
Objectid	1979676138	1979676130	1979676121	1979676126	-	1979676145	-	1925652461	1979676141
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	-	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn60Pb40)	Gold (Au) - with Nickel (Ni) barrier
DIN compliance	NO	NO	NO	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	-	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-	BLACK
JESD-609 code	e4	e4	e4	e4	-	e4	e4	e0	e4
Number of ports	1	1	1	1	1	1	1	-	1
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	-	NICKEL
