BJ20SL datasheet, PDF - EEWORLD Datasheet

BJ20SL: DescriptionPANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

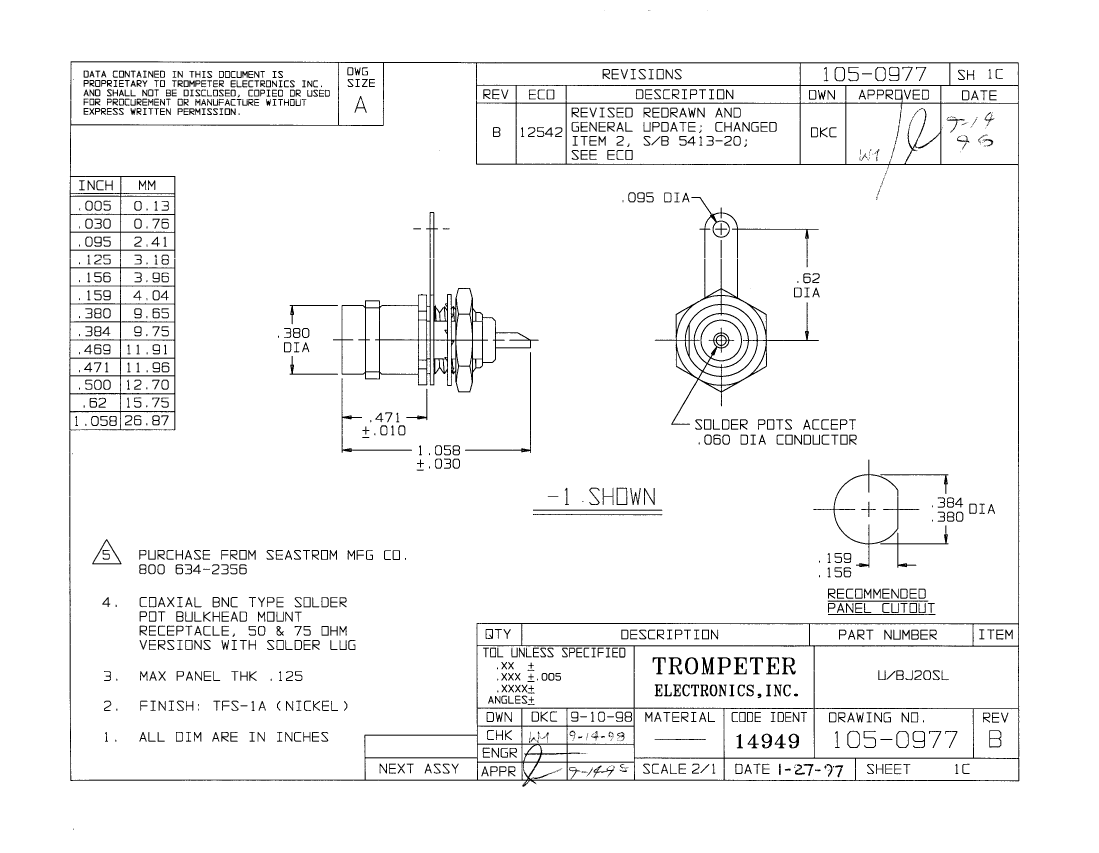

BJ20SL Overview

PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, RECEPTACLE

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	75 OHM IMPEDANCE ALSO AVAILABLE
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BJ20SL
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.3
Base Number Matches	1

	BJ20SL	UBJ20SL
Description	PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, RECEPTACLE	PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	75 OHM IMPEDANCE ALSO AVAILABLE	75 OHM IMPEDANCE ALSO AVAILABLE
Body/casing type	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	NICKEL	NICKEL
Contact completed and terminated	NICKEL	NICKEL
Contact point gender	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO
Manufacturer's serial number	BJ20SL	BJ20SL
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.3	1.3
Base Number Matches	1	1
