TRM-2091-M0-SMA-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TRM-2091-M0-SMA-02

TRM-2091-M0-SMA-02: DescriptionRF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, METAL PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size31KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

TRM-2091-M0-SMA-02 Overview

RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, METAL PACKAGE

TRM-2091-M0-SMA-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.14
Base Number Matches	1

Preview

Download Datasheet

View All

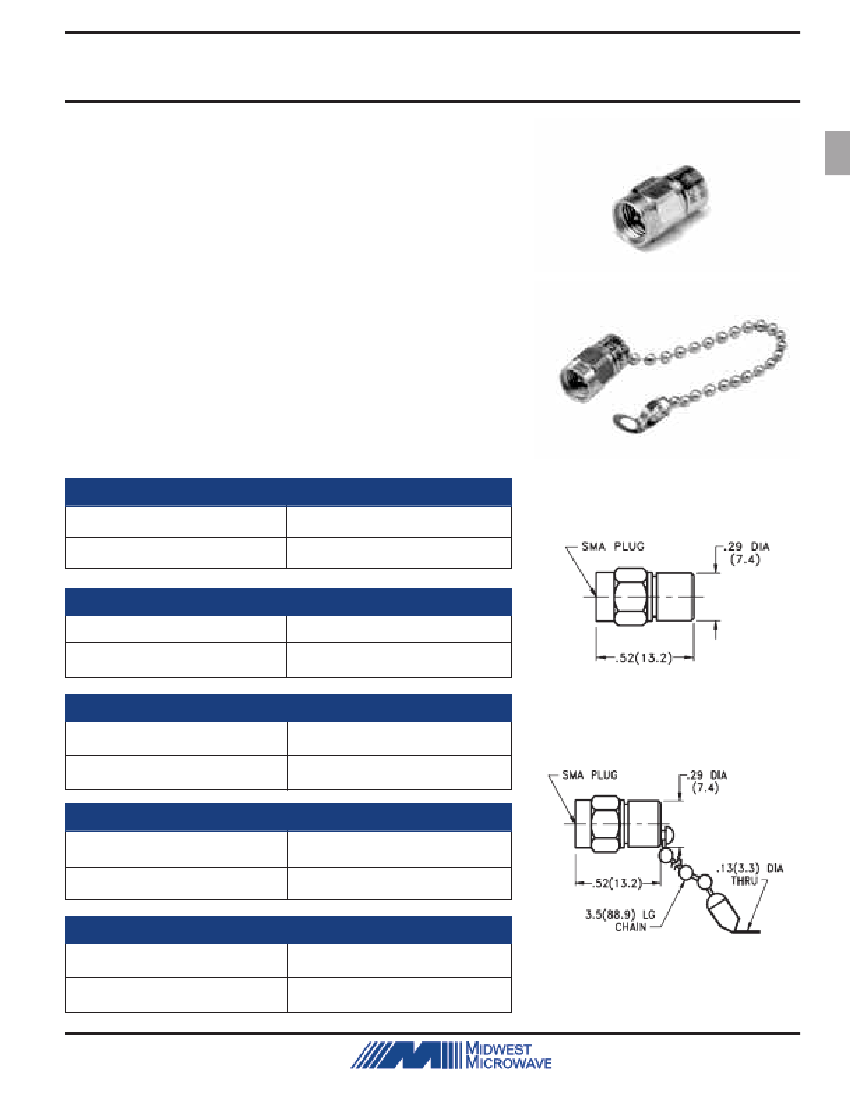

Terminations

•

Low VSWR - 2 Watt High Performance

SMA Miniature Male Plug

Midwest Microwave's SMA miniature series of high performance coaxial

Terminations provide temperature stable, ruggedly built, low VSWR preci-

sion performance in a compact light weight package size. These Models

offer improved, lower VSWR performance over units described on the pre-

vious page. Bead Chains are available with any of the units described.

SPECIFICATIONS

Impedance:

50 Ohms

Frequency:

DC - 26.5, DC - 18.0, DC - 12.4., DC - 8.0 and DC - 2.0 GHz

VSWR:

1.05 @ DC - 4 GHz, 1.10 @ 4.0 - 12 GHz, 1.14 @ 12 - 18 GHz, and

Power:

Operating Temperature Range:

Finish:

Passivated Stainless Steel

DC - 26.5 GHz

Male Plug

1.30 @ 18.0-26.5 GHz

2 Watts max @ 25

C derated linearly to 1 Watt @ 125

-65 to +125 C

DC - 2, DC - 8,DC - 12.4, DC - 18, and DC - 26.5GHz units available

Low VSWR

Rugged Stainless Steel Construction

Small Size, Light Weight

Bead Chain available on all Models

2089 Series

TRM-2089-M0-SMA-02

TRM-2089-MC-SMA-02

Male Plug with Chain

Model Numbers

DC - 18 GHz

TRM-2090-M0-SMA-02

Male Plug

2090 Series

TRM-2090-MC-SMA-02

Male Plug with Chain

Model Numbers

DC - 12.4 GHz

TRM-2091-M0-SMA-02

Male Plug

2091 Series

TRM-2091-MC-SMA-02

Male Plug with Chain

Model Numbers

DC - 8.0 GHz

TRM-2092-M0-SMA-02

Male Plug

2092 Series

TRM-2092-MC-SMA-02

Male Plug with Chain

Model Numbers

DC - 2.0 GHz

TRM-2093-M0-SMA-02

Male Plug

2093 Series

TRM-2093-MC-SMA-02

Male Plug with Chain

Model Numbers
