AA8630
VIDEO AMPLIFIER
AA8630 is a video driver with 6db gain, 75 output buffer and SAG correction ant it
supports 3V and 5V operation voltage. The 75 buffer is capable of driving two circuits.
The SAG could reduce the output coupling capacitor. The power saving circuit provides
the power saving function. The IC is available for 6-pin SOT26L.
■
FEATURES
•
Composite video driver with 6dB gain
• Support 3V and 5V operation voltage
• Power saving function
• Output short circuit protection function
• SAG correction function
• A load sufficient for driving two circuits
• Low power consumption, 75mw typical
• Internal voltage clamp circuit
•
AC-Couple or DC-Couple output
■
APPLICATIONS
•
VCR
• Video Camera
• TV
• Video Player
■
BLOCK DIAGRAM
Vcc
3
Clamp
1
Bias
SAG
PS
6
IN
4
2
OUT
5
GND
©Copyright
Agamem Microelectronics Inc.
1
www.agamem.com.tw
2008/10/8
AGAMEM MICROELECTRONICS INCOPERATION RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AGAMEM DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCTS OR CIRCUIT DESRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
Agamem Microelectronics Inc.
PRELIMINARY
■
PIN DESCRIPTIONS
AA8630
VIDEO AMPLIFIER
PIN NO.
1
2
3
4
5
6
PIN NAME
SAG
OUT
V
CC
IN
GND
PS
PIN FUNCTION
SAG correction to reduce the capacitance of output
coupling capacitor
Composite output. As it is less than 0.6V, the protect
circuit is triggered to enable the power saving function
3V ~ 5V power supply
Composite Y input signal is clamped input
Ground
Output is muted as this pin is set to low
■
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply Voltage
Operating Ambient Temperature
Storage Temperature
SYMBOL
Vcc
Ta
Ts
RATING
7
-25~+75
-55~+125
UNIT
V
V
℃
NOTE: Stress above those listed under “Absolute Maximum Rating” may cause device permanent damage.
This stress-rating only factor and functional operation of the device at these or any other conditions above
those indicated in the operational section of this specification is not implied. Exposure to absolute maximum
rating conditions for an extending period of time may affect the reliability of the device.
■ELECTRICAL
CHARACTERISTICS
TA = 25° V
CC
= 3V
C,
SYMBOL
Icc1
PARAMETER
Supply Current
CONDITIONS
MIN
No input Signal
LIMITS
TYP
MAX
15
20
©Copyright
Agamem Microelectronics Inc.
2
www.agamem.com.tw
AGAMEM MICROELECTRONICS INCOPERATION RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AGAMEM DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCTS OR CIRCUIT DESRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
℃
UNIT
mA
2008/10/8
Ta=25
Agamem Microelectronics Inc.
PRELIMINARY
SYMBOL
PARAMETER
Supply Current (at
power save mode)
Voltage Gain
Frequency
Characteristic
Clamp Voltage
VMH
VML
PS High Level
PS Low Level
Output DC level
IM
GSAG
DG
DP
Muted Current
SAG-Terminal
Gain
Differential Gain
Differential Phase
VIN = 1VP-P, refer
staircase signal
VIN = 1VP-P, refer
staircase signal
MUTE = ‘L’
2.2
GND
CONDITIONS
MIN
Icc2
No input Signal,
PS : ON
Input Signal Freq =
4.43MHz, 1VP-P,
measure VO1
Input Signal Freq =
7MHz/1MHz, 1VP-P,
measure VO1
AA8630
VIDEO AMPLIFIER
LIMITS
TYP
MAX
1
UNIT
uA
Gv
-0.3
dB
GF
-0.5
-0.5
1.3
0.5
dB
V
Vcc
0.8
1.2
1
48
1
1
2
2.5
V
V
V
uA
dB
%
deg
Power Saving MODE
Function
Power Saving
Operation
Power Saving
PS
L
H
Open
©Copyright
Agamem Microelectronics Inc.
3
www.agamem.com.tw
2008/10/8
AGAMEM MICROELECTRONICS INCOPERATION RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AGAMEM DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCTS OR CIRCUIT DESRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
Agamem Microelectronics Inc.
PRELIMINARY
■

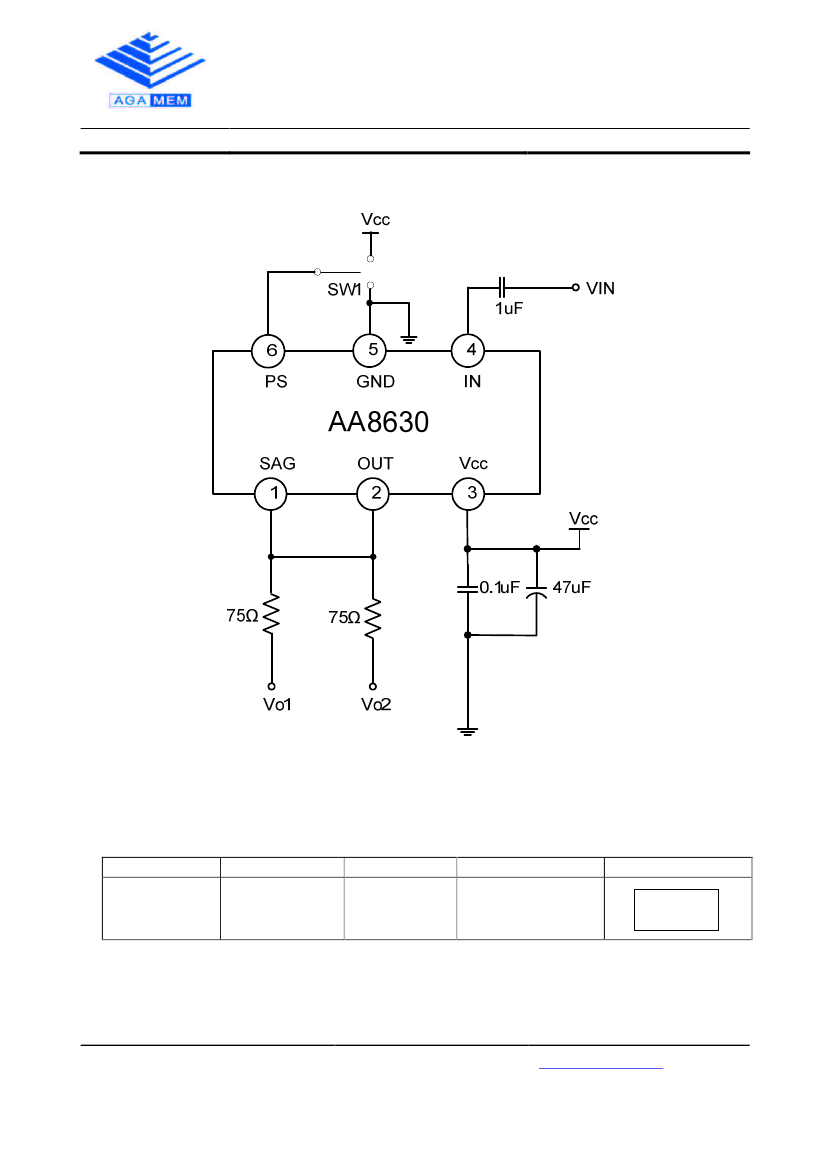

APPLICATION CIRCUIT 1 – AC-COUPLE OUTPUT
Vcc
AA8630
VIDEO AMPLIFIER
SW1
1uF
6
PS
5
GND
4
IN
VIN
AA8630
SAG
1
22uF
OUT
2
100uF
0.1uF
47uF
Vcc
3
Vcc
75
75
Vo1
Vo2
©Copyright
Agamem Microelectronics Inc.
4
www.agamem.com.tw
2008/10/8
AGAMEM MICROELECTRONICS INCOPERATION RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AGAMEM DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCTS OR CIRCUIT DESRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
Agamem Microelectronics Inc.
PRELIMINARY
■
APPLICATION CIRCUIT 2 – DC-COUPLE OUTPUT
AA8630
VIDEO AMPLIFIER
■
ORDERING INFORMATION
ORDER NO.
AA8630A
PACKAGE
SOT26L
PACKING
Tape & Reel
ONE REEL Q’TY
3,000ea
MARK CHART
8630
XXXA
©Copyright
Agamem Microelectronics Inc.
5
www.agamem.com.tw
2008/10/8
AGAMEM MICROELECTRONICS INCOPERATION RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AGAMEM DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCTS OR CIRCUIT DESRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
