Insert Molded Coil—
2101 series

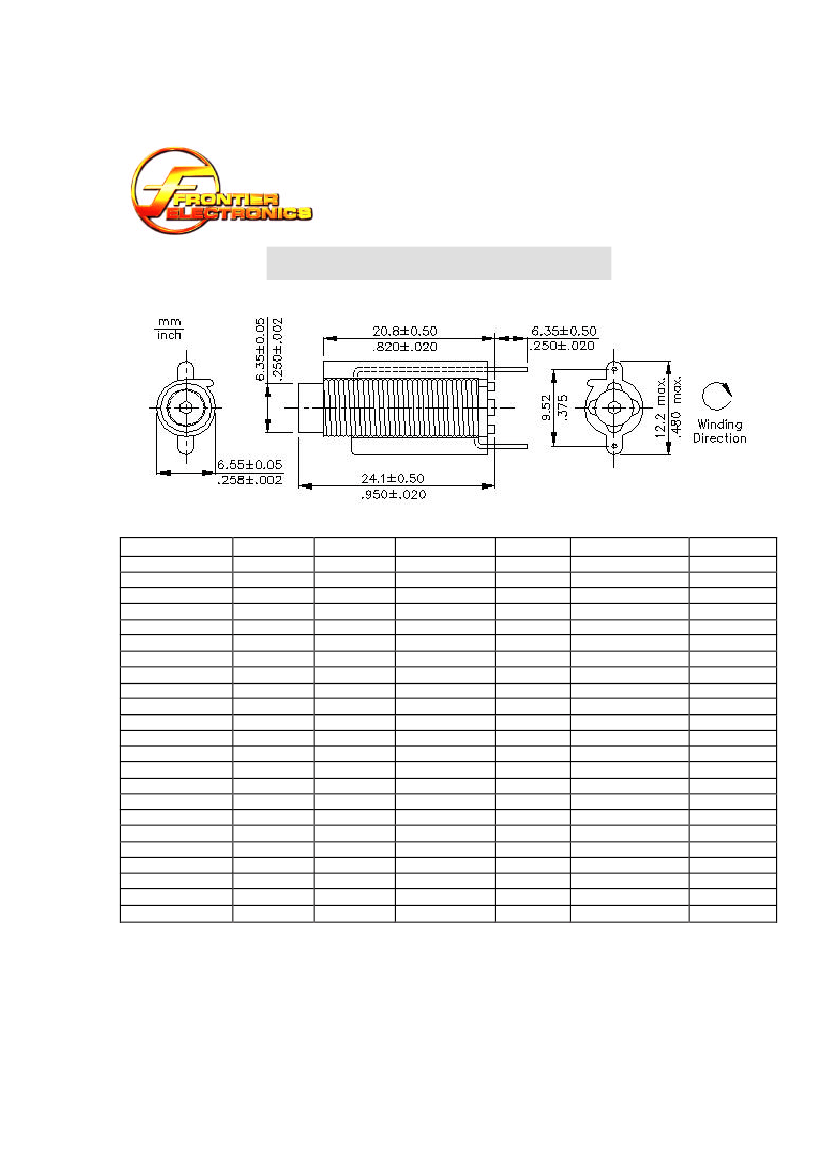

A. Mechanical Drawing:
B. Electrical Specification:
Part No.
2101-01
2101-02
2101-03
2101-04
2101-05
2101-06
2101-07
2101-08
2101-09
2101-10
2101-11
2101-12
2101-13
2101-14
2101-15
2101-16
2101-17
2101-18
2101-19
2101-20
2101-21
2101-22
2101-23
Turns
1.5
2.5
3.5
4.5
5.5
6.5
7.5
8.5
9.5
10.5
11.5
12.5
13.5
14.5
15.5
16.5
17.5
18.5
19.5
20.5
21.5
22.5
23.5
L min.
0.045
0.073
0.106
0.139
0.180
0.221
0.263
0.311
0.355
0.410
0.452
0.495
0.547
0.589
0.651
0.683
0.735
0.788
0.819
0.887
0.945
0.996
1.050
L nom.
0.046
0.081
0.124
0.168
0.224
0.282
0.339
0.406
0.468
0.538
0.590
0.651
0.717
0.770
0.831
0.866
0.923
0.992
1.021
1.101
1.106
1.207
1.271
L max.
0.048
0.090
0.144
0.204
0.278
0.361
0.437
0.531
0.617
0.707
0.769
0.855
0.940
1.007
1.061
1.099
1.159
1.249
1.272
1.367
1.425
1.463
1.539
Q min @ L nom.
110
136
145
120
125
126
126
130
130
135
140
140
145
146
150
150
150
150
95
95
98
98
100
Color
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
C. Features:
1. Plastic molded.
2. High reliability.
3. Low cost.
D. Measurement:
1.
2.
3.
4.
Q and L measured with leads connected directly.
L min. measured with core halfway out of the top of the form.
Inductance greater than 0.1uH read at recommended Q meter frequency.
Inductance below 0.1uH calculated from readings taken at 50MHz.
E.
Test equipment:
Q meter (HP 4342A)
Mar. 01, 2002 Page 1 of 1
