Insert Molded Coil—

2303 series

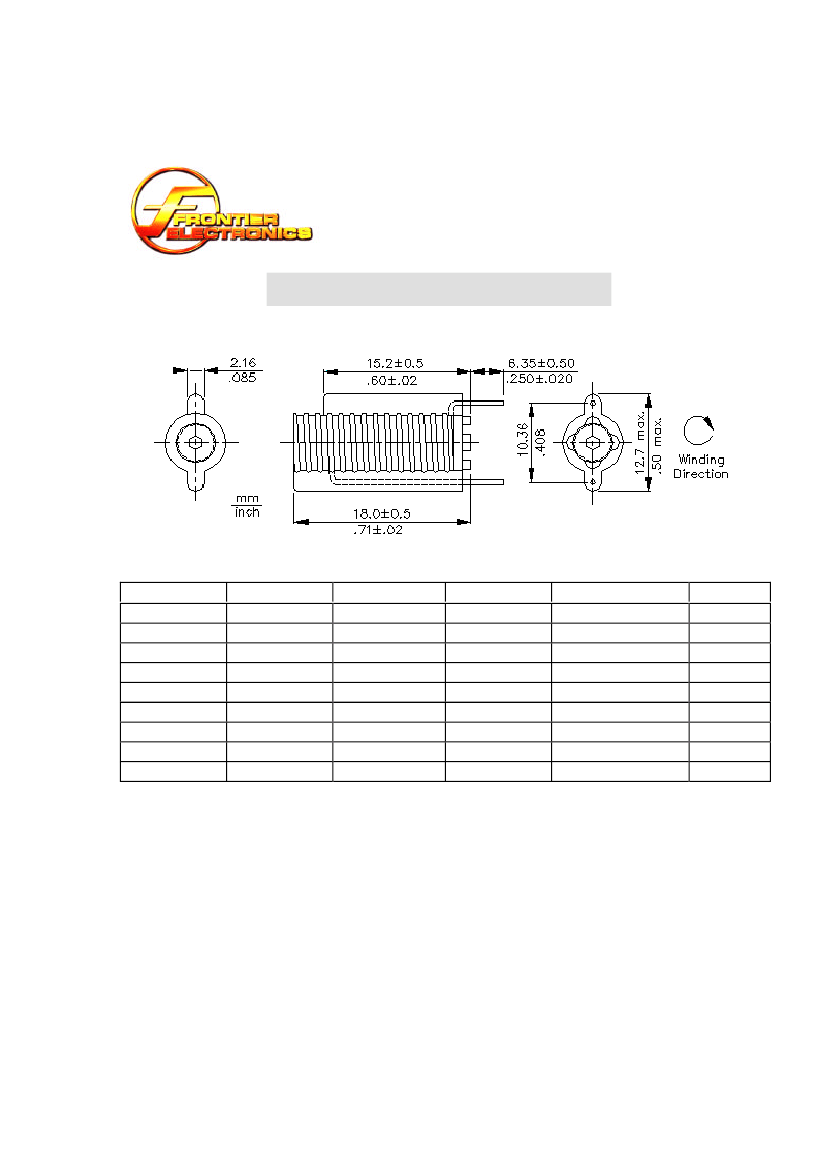

A. Mechanical Drawing:

B. Electrical Specification:

Part No.

2303-01

2303-02

2303-03

2303-04

2303-05

2303-06

2303-07

2303-08

2303-09

C. Features:

1. Plastic molded.

2. High reliability.

3. Low cost.

L Min. (uH)

0.047

0.068

0.095

0.119

0.147

0.179

0.208

0.230

0.260

L Nom. (uH)

0.049

0.077

0.114

0.144

0.181

0.221

0.253

0.285

0.316

L Max. (uH) Q Min. @ L Nom.

0.051

110

0.088

125

0.137

140

0.174

140

0.223

145

0.272

150

0.308

150

0.352

154

0.384

155

Color

Brown

Red

Orange

Yellow

Green

Blue

Violet

Gray

White

D. Measurement:

1.

2.

3.

4.

Q and L measured with leads connected directly.

L min. measured without core.

Inductance greater than 0.1uH read at recommended Q meter frequency.

Inductance below 0.1uH calculated from readings taken at 50MHz.

E. Test equipment:

Q meter (HP 4342A)

IMC 2303 series

Mar. 01, 2002 Page 1 of 1
