2308 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 2308

2308: Description1 ELEMENT, 39 uH, GENERAL PURPOSE INDUCTOR; CategoryPassive components; File Size42KB，1 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Compare View All

2308 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2308	-	-	View	Buy Now

2308 Overview

1 ELEMENT, 39 uH, GENERAL PURPOSE INDUCTOR

Preview

Download Datasheet

View All

Frontier Electronics Corp.

667 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998

FAX: (805) 522-9989

E-mail: frontiersales@frontierusa.com

Web: frontierusa.com

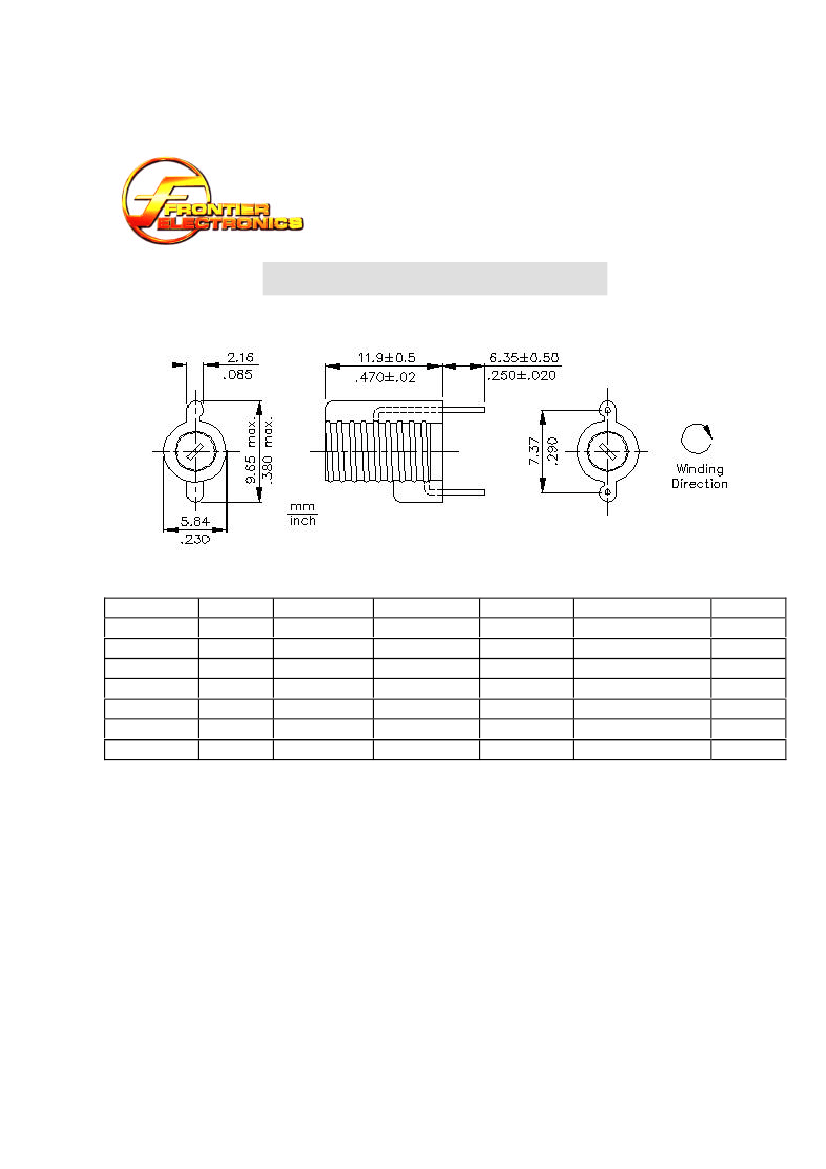

Insert Molded Coil—

2308 series

A. Mechanical Drawing:

B. Electrical Specification:

Part No.

2308-01

2308-02

2308-03

2308-04

2308-05

2308-06

2308-07

C. Features:

1. Plastic molded.

2. High reliability.

3. Low cost.

Turns

1 1/2

2 1/2

3 1/2

4 1/2

5 1/2

6 1/2

7 1/2

L Min. (uH) L Nom. (uH) L Max. (uH) Q Min. @ L Nom. Color

0.040

0.044

0.048

100

Brown

0.055

0.067

0.081

100

Red

0.073

0.093

0.118

100

Orange

0.091

0.120

0.158

100

Yellow

0.110

0.146

0.193

100

Green

0.129

0.170

0.224

100

Blue

0.148

0.194

0.253

100

Violet

D. Measurement:

Q and L measured with leads connected directly.

L min. measured without core.

Inductance greater than 0.1uH read at recommended Q meter frequency.

Inductance below 0.1uH calculated from readings taken at 50MHz.

E. Test equipment:

Q meter (HP 4342A)

IMC 2308 series

Mar. 01, 2002 Page 1 of 1

2308 Related Products

	2308	2308-02	2308-03	2308-01	2308-07	2308-06	2308-04
Description	1 ELEMENT, 39 uH, GENERAL PURPOSE INDUCTOR	UNSHIELDED, 0.055 uH - 0.081 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.073 uH - 0.118 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.04 uH - 0.048 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.148 uH - 0.253 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.129 uH - 0.224 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.091 uH - 0.158 uH, VARIABLE INDUCTOR
Maker	-	FRONTIER	FRONTIER	FRONTIER	FRONTIER	FRONTIER	FRONTIER
Reach Compliance Code	-	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum inductance(L)	-	0.081 µH	0.118 µH	0.048 µH	0.253 µH	0.224 µH	0.158 µH
Minimum inductance(L)	-	0.055 µH	0.073 µH	0.04 µH	0.148 µH	0.129 µH	0.091 µH
Nominal inductance(L)	-	0.067 µH	0.093 µH	0.044 µH	0.194 µH	0.17 µH	0.12 µH
Inductor Applications	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	-	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR
Number of functions	-	1	1	1	1	1	1
Number of terminals	-	2	2	2	2	2	2
Minimum quality factor (at nominal inductance)	-	100	100	100	100	100	100
Shape/Size Description	-	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER
shield	-	NO	NO	NO	NO	NO	NO
surface mount	-	NO	NO	NO	NO	NO	NO
Terminal shape	-	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
