TC74AC253F(TP1)

Description
IC AC SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer/Demultiplexer
Categorylogic    logic
File Size117KB,4 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

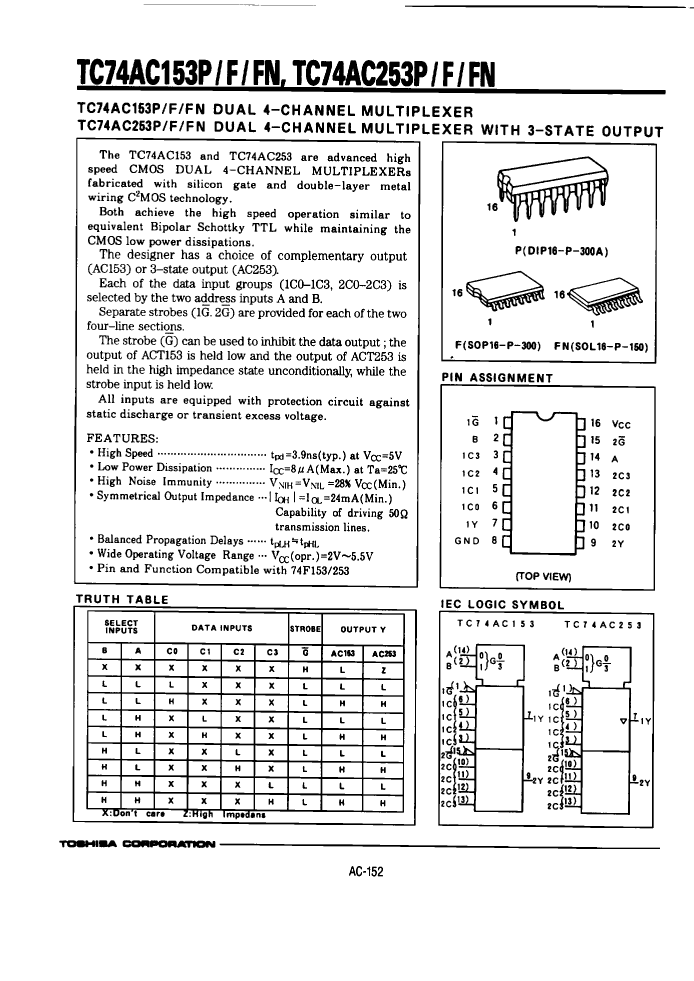

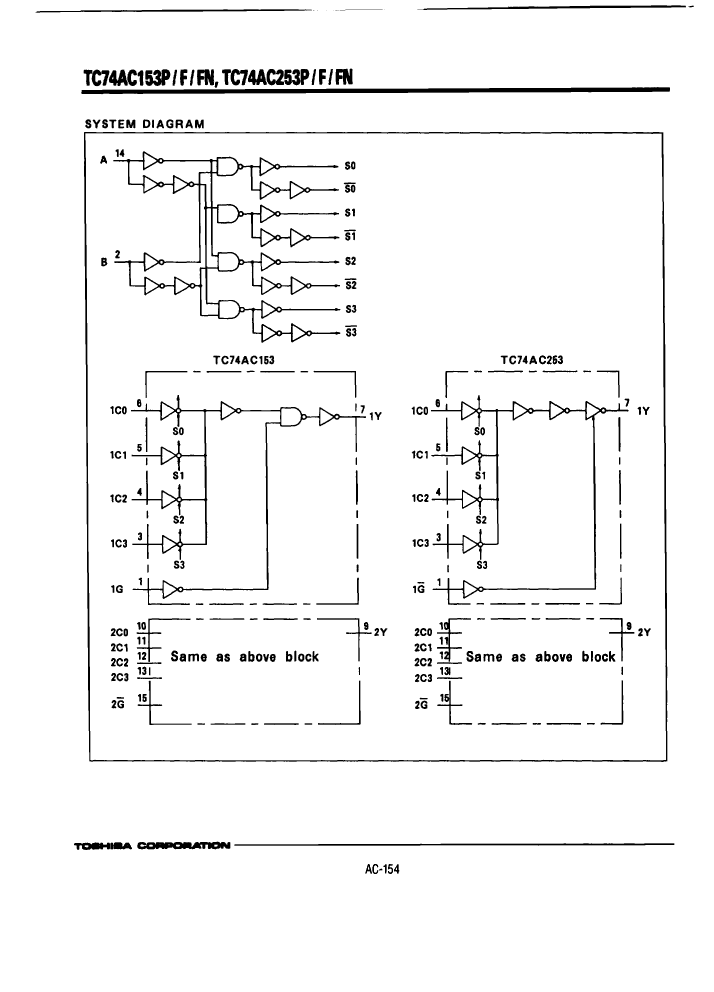

TC74AC253F(TP1) Overview

IC AC SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer/Demultiplexer

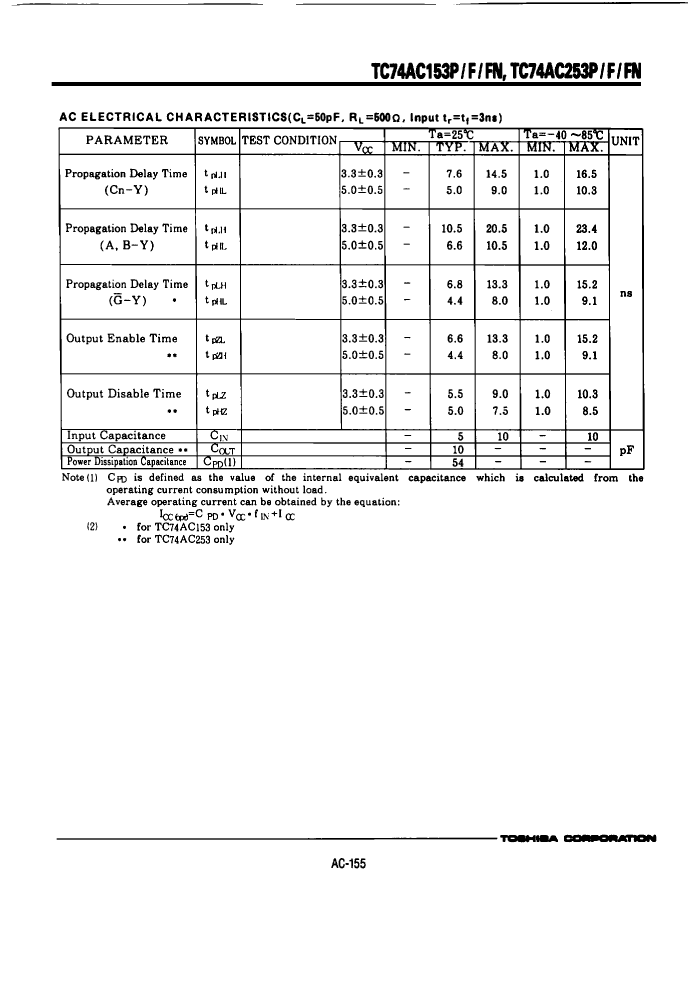

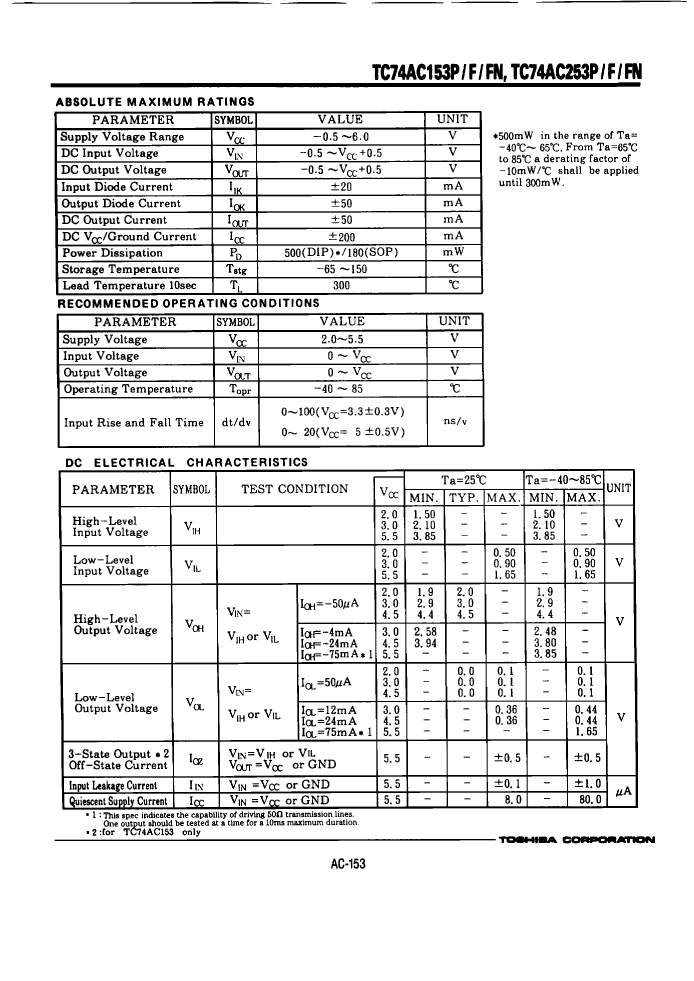

TC74AC253F(TP1) Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeSOIC
package instructionSOP,
Contacts16
Reach Compliance Codeunknown
seriesAC
JESD-30 codeR-PDSO-G16
JESD-609 codee0
length10.3 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeMULTIPLEXER
Number of functions2
Number of entries4
Output times1
Number of terminals16
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)240
propagation delay (tpd)12 ns
Certification statusNot Qualified
Maximum seat height1.9 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width5.3 mm
Base Number Matches1
