Features
n
Single-turn (3851 and 3852)
n
Linear and audio tapers
n
3-3/4-turn (3856)
n
Wide resistance range
n
Minimal depth package
F
RE
E
*R
oH
S
C
OM
T
n
Good resolution
LE
AD
3851/3852/3856 - 3/4 ” Diameter Panel Control
3851
Conductive Plastic Element
3852/3856
Cermet Element
Initial Electrical Characteristics
1
Standard Resistance Range
Linear Tapers (A, B, E, and H) .....................1 K to 1 megohm ............................................... 100 ohms to 1 megohm
Audio Tapers (C, D, F, and G) ......................1 K to 1 megohm ............................................... 1 K ohms to 1 megohm
Total Resistance Tolerance ...............................±10 % or ±20 % ................................................ ±5 % or ±10 %
Independent Linearity .......................................±10 % ................................................................ (A & H tapers) ±5 %
Absolute Minimum Resistance .........................2 ohms maximum .............................................. 2 ohms maximum
Effective Electrical Angle ..................................(Linear tapers) 250 ° ±5 °................................... (Linear tapers) 250 ° ±5 °
(Audio tapers) 225 ° ±5 ° ................................... (Audio tapers) 225 ° ±5 °
Contact Resistance Variation ...........................±1 % .................................................................. ±3 % of total resistance or 3 ohms
(whichever is greater)
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
Sea Level ....................................................900 VAC minimum ............................................. 900 VAC minimum
70,000 Feet .................................................350 VAC minimum ............................................. 350 VAC minimum
Insulation Resistance (500 VDC) ......................1,000 megohms minimum ................................. 1,000 megohms minimum
Power Rating (Voltage Limited By Power Dissipation or 350 VAC, Whichever Is Less)
+70 °C ........................................................(Linear tapers) 1 watt ......................................... (Linear tapers) 2 watts
(Audio tapers) 0.5 watt ...................................... (Audio tapers) 1 watt
+125 °C .......................................................0 watt
+150 °C .................................................................................................................................. 0 watt
Theoretical Resolution ......................................Essentially infinite .............................................. Essentially infinite
Environmental Characteristics
1
Operating Temperature Range .......................... -1 °C to +125 °C ..................................................-1 °C to +125 °C
Storage Temperature Range.............................. -65 °C to +125 °C ................................................-65 °C to +150 °C
Temperature Coefficient Over
Storage Temperature Range............................ ±1,000 ppm/°C.....................................................±150 ppm/°C
Vibration ............................................................. 20 G ......................................................................20 G
Total Resistance Shift ................................... ±2 % maximum....................................................±2 % maximum
Voltage Ratio Shift ........................................ ±5 % maximum....................................................±6 % maximum
Shock ................................................................. 100 G ....................................................................100 G
Total Resistance Shift ................................... ±2 % maximum....................................................±2 % maximum
Voltage Ratio Shift ........................................ ±5 % maximum....................................................±6 % maximum
Load Life ............................................................ 1,000 hours ..........................................................1,000 hours
Total Resistance Shift ................................... ±10 % maximum..................................................±3 % maximum
Rotational Life (No Load) ................................... 100,000 cycles .....................................................50,000 cycles
Total Resistance Shift ................................... ±15 % TRS maximum .........................................±5 % or 5 ohms TRS whichever is greater
Contact Resistance Variation ....................... ±3 % .....................................................................±3 %
Moisture Resistance (MIL-STD-202, Method 103, Condition B)
Total Resistance Shift ................................... ±10 % maximum .................................................±2 % maximum
IP Rating............................................................. IP 40 .....................................................................IP 40
Mechanical Characteristics
1
Stop Strength
3851 & 3852 .................................................................................................................................................................. 56.5 N-cm (5 lb.-in.)
3856..................................................................................................................................................................................... Continuous turn
Mechanical Angle.............................................................................................................................................280 ° ±5 ° / 3856 – 1350 ° ±50 °
Torque (Starting and Running) ......................................................................................A & B bushings 0.35 to 4.23 N-cm (0.05 to 6.0 oz.-in.)
C & E bushings 0.21 to 4.23 N-cm (0.3 to 6.0 oz.-in.)
3856 – 0.11 to 2.12 N-cm (0.15 to 3.0 oz.-in.)
Mounting (Torque on Bushing) ........................................................................................................... 1.7-2.0 N-m (15-18 lb.-in.) maximum
Weight (Single Section) ....................................................................................................................................................... 30 grams maximum
Terminals ................................................................................................................................................ Printed circuit terminals or solder lugs
Soldering Condition .......................................... Recommended hand soldering using Sn95/Ag5 no clean solder, 0.025 ” wire diameter.
Maximum temperature 399 °C (750 °F) for 3 seconds. No wash process to be used with no clean flux.
Part can be wave soldered at 260 °C (500 °F) for 5 seconds, no wash process with no clean flux.
Marking ......................................................................... Manufacturer’s trademark, wiring diagram, resistance, date code, and part number
Ganging (Multiple Section Potentiometers).............................................................................................................................. 1 cup maximum
Hardware .................. One lockwasher and one mounting nut is shipped with each potentiometer, except where noted in the part number.
1
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
At room ambient: +25 °C nominal and 50 %
relative humidity nominal, except as noted.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice. The device characteristics and parameters in this data sheet
can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.

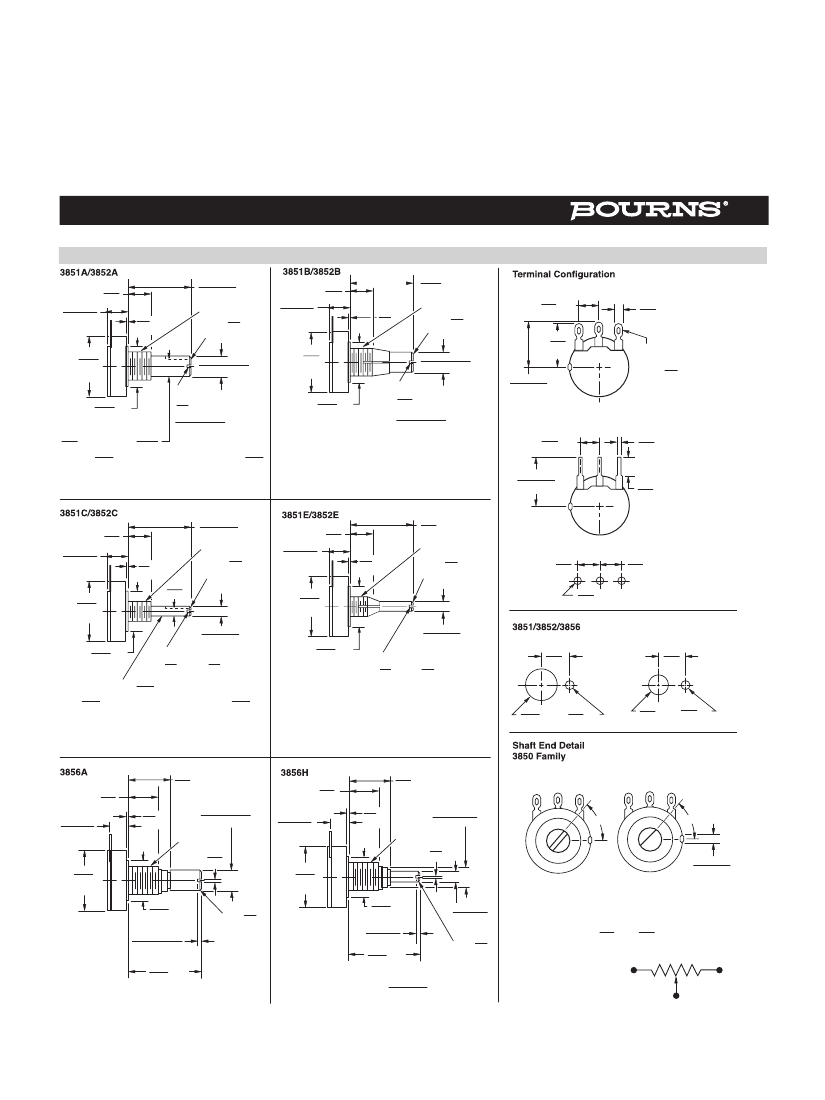

3851/3852/3856 - 3/4 ” Diameter Panel Control
How To Order
3852
A
-
28
2
-
103
A
L
12
16
16
20
28
28
SHAFT TYPE
(FMS) & DIAMETER
3/8 ” (9.53 mm) L X 1/8 ” (3.18 mm) D
1/2 ” (12.7 mm) L x 1/4 ” (6.35 mm) D
1/2 ” (12.7 mm) L x 1/8 ” (3.18 mm) D
5/8 ” (15.88 mm) L X 1/4 ” (6.35 mm) D
7/8 ” (22.20 mm) L X 1/4 ” (6.35 mm) D
7/8 ” (22.20 mm) L X 1/8 ” (3.18 mm) D
AVAILABLE ONLY IN
MODELS
3851, 3852
3851, 3852
3851, 3852
3851, 3852
3851, 3852
3856
3851, 3852
3856
BUSHINGS
C
A
C, E
A, B
A, B
A
C, E
H
Consult factory for lengths not shown.
A
B
C
E
H
BUSHING
Plain 3/8 ” (9.53 mm) D x 3/8 ” (9.53 mm) L
Locking 3/8 ” (9.53 mm) D x 1/2 ” (12.7 mm) L
Plain 1/4 ” (6.35 mm) D x 1/4 ” (6.35 mm) L
Locking 1/4 ” (6.35 mm) D x 1/2 ” (12.7 mm) L
Plain 3/8 ” (9.53 mm) D x 3/8 ” (9.53 mm) L
APPLICABLE MODELS
3851, 3852, 3856
3851, 3852
3851, 3852
3851, 3852
3856 (3.18 mm D Shaft)
RESISTANCE
CODE/VALUE
(IN OHMS)
Model 3851
(102)
1K
(252)
2.5 K
(502)
5K
(103)
10 K
(253)
25 K
(503)
50 K
(104)
100 K
(254)
250 K
(504)
500 K
(105)
1M
Models 3852/3856
(101)
100
(251)
250
(501)
500
(102)
1K
(252)
2.5 K
(502)
5K
(103)
10 K
(253)
25 K
(503)
50 K
(104)
100 K
(254)
250 K
(504)
500 K
(105)
1M
ELEMENT
TAPER/TOLERANCE
A
Linear ±10 %
B
Linear ±20 %
C
Audio CW ±10 %
D
Audio CW ±20 %
E
Linear ±10 %
F
Audio CCW ±10 %
G
Audio CCW ±20 %
H
Linear ±5 %
RoHS IDENTIFIER
L
Compliant
MODEL
3851 3/4 ” (19.05 mm) D Single-Turn C.P.
3852 3/4 ” (19.05 mm) D Single-Turn Cermet
3856 3/4 ” (19.05 mm) D 3-3/4-Turn Cermet
TERMINAL STYLE AND
SHAFT TYPE
1
2
3
5
6
7
Solder Lugs, Plain End
Solder Lugs, Slotted End
Solder Lugs, Flatted Shaft
PC Pins, Plain End
PC Pins, Slotted End
PC Pins, Flatted Shaft
Boldface features are Bourns standard options.
All others are available with higher minimum order
quantities.
APPLICABLE
MODELS
3852, 3856
3851
3852, 3856
3851
3851
3852, 3856
3851
3852, 3856
REV. 05/18
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
