SLR-342MCTH7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SLR-342MCTH7

SLR-342MCTH7: DescriptionSingle Color LED, Yellow Green, Transparent, T-1, 3.1mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size796KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

SLR-342MCTH7 Overview

Single Color LED, Yellow Green, Transparent, T-1, 3.1mm, ROHS COMPLIANT PACKAGE-2

SLR-342MCTH7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	YELLOW GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	2.1 V
JESD-609 code	e1
Lens type	TRANSPARENT
Nominal luminous intensity	25.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.2 mm
method of packing	TAPE AND BOX
peak wavelength	563 nm
Maximum reverse voltage	3 V
shape	ROUND
size	3.1 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm
perspective	40 deg
Base Number Matches	1

Preview

Download Datasheet

View All

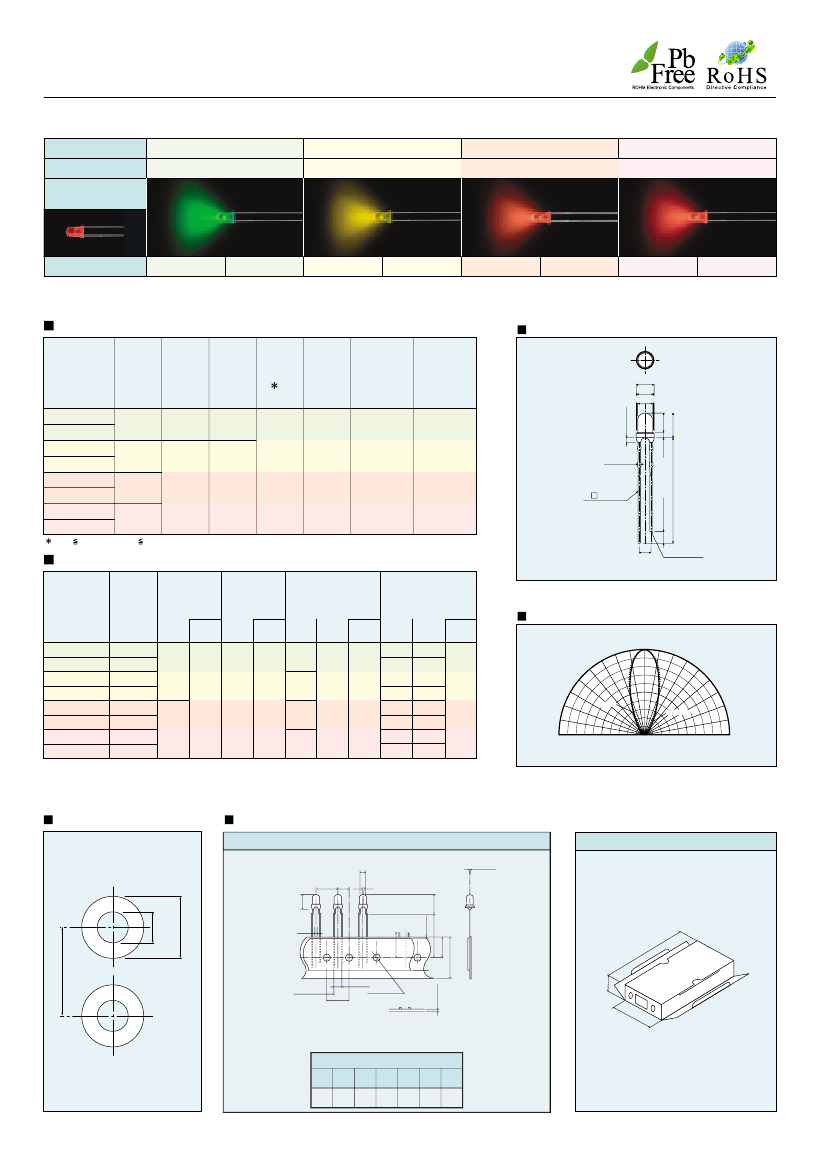

3.1(T-1) Circular Type Standard Type

<Viewing Angle 2

1/2 : 40

SLR-342 Series

Emitting Color

Material

Emitting Surface

Dimension(mm)

Green(Yellowish Green)

GaP

Yellow

Orange

GaAsP on GaP

Red

3.1

Part No.

SLR-342MC

SLR-342MG

SLR-342YC

SLR-342YY

SLR-342DC

SLR-342DU

SLR-342VC

SLR-342VR

Absolute Maximum Ratings (Ta=25∞C)

Peak

Reverse Operating

Storage

Power Forward

forward

Emitting

dissipation current

voltage temperature temperature

current

color

opr

stg

(mW)

(mA)

(V)

(°C)

(mA)

Dimensions (Unit:mm)

Part No.

3.8

0.3

3.5

3.1

1.0Max.

(4.1)

5.2

0.3

(1.1)

(2.5)

2.5

1.0

CATHODE

0°

30°

SLR-342MC

SLR-342MG

SLR-342YC

SLR-342YY

SLR-342DC

SLR-342DU

SLR-342VC

SLR-342VR

:Duty

Green

(Yellowish Green)

Yellow

-25 to +85

-30 to +100

4-0.5

+0.2

-0.1

Orange

Red

1ms.

0.4

0.1

1/ 5, pulse width

Electrical Optical Characteristics (Ta=25∞C)

Tolerance:

0.2

Part No.

Resin Color

Forward

voltage

Typ.

(V)

(mA)

Reverse

current

Max.

(µA)

(V)

Light wavelength

Peak Half-wave

λp

∆λ

Typ.

(nm)

Typ.

(nm)

(mA)

Brightness

Min. Typ.

(

mcd

)

(mcd) (mA)

9.0

Directivity (Typ.)

Angular Displacement (deg)

SLR-342MC

Transparent

Colored

563

Diffused

SLR-342MG

Colored

5.6

2.1

SLR-342YC

Transparent

Colored

585

Diffused

3.6

SLR-342YY

Colored

9.0

SLR-342DC

Transparent

Colored

610

Diffused

5.6

SLR-342DU

Colored

2.0

Transparent

9.0

SLR-342VC

Colored

650

Diffused

5.6

SLR-342VR

Colored

Note) SLR-342 series are available with forming taping style. For the bulk and straight taping style, we would recommend our

SLR-343(LEDs with Pressure Release Structure)

24.0Min.

60°

clear

diffused

60°

90°

100

90°

100

RELATIVE LUMINOUS INTENSITY (%)

Recommended Pad Layout

Packaging Specifications (Unit:mm)

Formed Lead Type

3.1

0.2

3.1

0.2

Packaging

2.0

Tape:2000pcs/Box

12.7 1.0 6.35 0.4

12.7

1.0 6.35

0.4

5.2

0.3

5.2 0.3

0 1.0

1.0

3.0Max.

16.0

0.5

16.0

0.5

9.0

0.5

9.0

0.5

H1 0.8

0.8

5.0(Formed Lead Type)

1.0

0.1

2.0

(2.5)

11.0Max.

1.0

18.0

+1.0

18.0

−0.5

0.5

340

3.85

0.8

3.85 0.8

12.7

0.3

12.7

0.3

0.7

0.2

0.7 0.2

5.0

0.8

5.0 0.8

4.0

0.2

4.0

0.2

158

Forming H1 Dimensions(mm)

TB7

TC7

TE7 TF7 TG7

TH7

TJ7

TB7

TC7

TE7 TF7 TG7

TH7

TJ7

(Unit:mm)

8.9

9.9 11.9

12.9

13.9 14.9

15.9

8.9

9.9 11.9

12.9

13.9 14.9

15.9

Rev.D

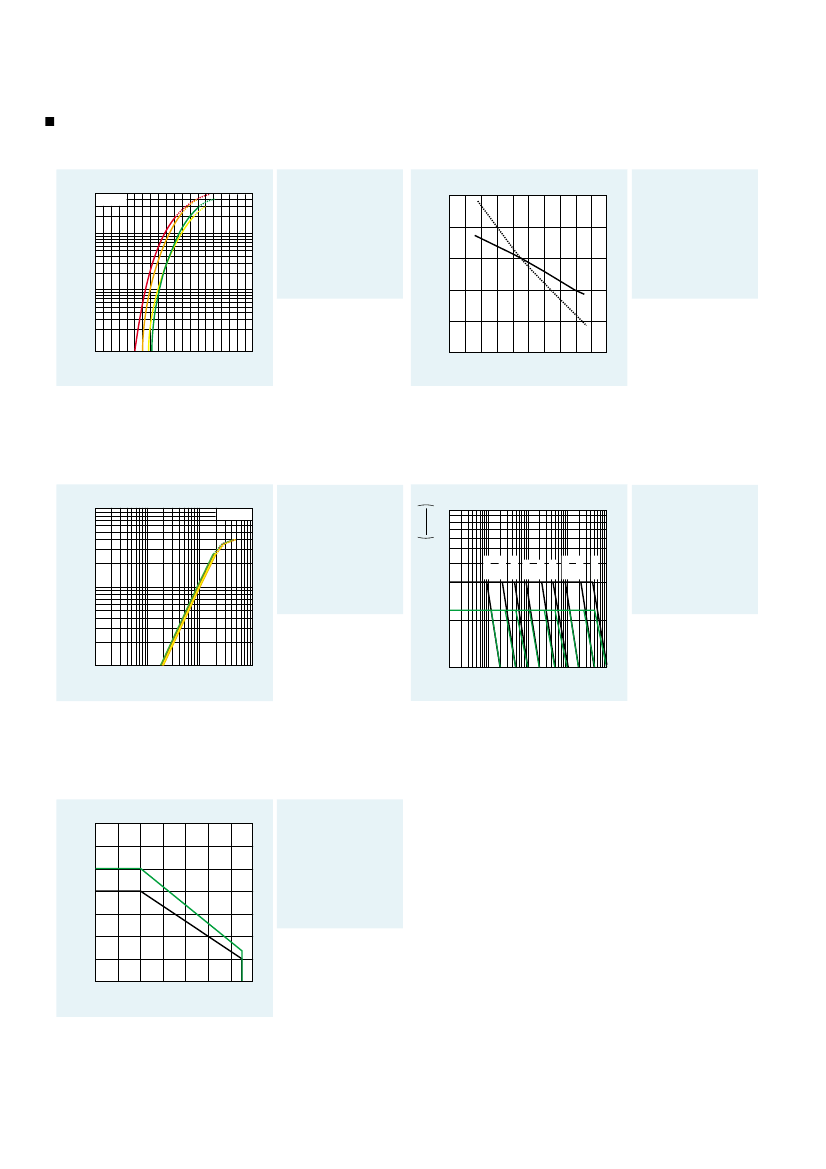

Notice

Notes

No copying or reproduction of this document, in part or in whole, is permitted without the

consent of ROHM Co.,Ltd.

The content specified herein is subject to change for improvement without notice.

The content specified herein is for the purpose of introducing ROHM's products (hereinafter

"Products"). If you wish to use any such Product, please be sure to refer to the specifications,

which can be obtained from ROHM upon request.

Examples of application circuits, circuit constants and any other information contained herein

illustrate the standard usage and operations of the Products. The peripheral conditions must

be taken into account when designing circuits for mass production.

Great care was taken in ensuring the accuracy of the information specified in this document.

However, should you incur any damage arising from any inaccuracy or misprint of such

information, ROHM shall bear no responsibility for such damage.

The technical information specified herein is intended only to show the typical functions of and

examples of application circuits for the Products. ROHM does not grant you, explicitly or

implicitly, any license to use or exercise intellectual property or other rights held by ROHM and

other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the

use of such technical information.

The Products specified in this document are intended to be used with general-use electronic

equipment or devices (such as audio visual equipment, office-automation equipment, commu-

nication devices, electronic appliances and amusement devices).

The Products specified in this document are not designed to be radiation tolerant.

While ROHM always makes efforts to enhance the quality and reliability of its Products, a

Product may fail or malfunction for a variety of reasons.

Please be sure to implement in your equipment using the Products safety measures to guard

against the possibility of physical injury, fire or any other damage caused in the event of the

failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM

shall bear no responsibility whatsoever for your use of any Product outside of the prescribed

scope or not in accordance with the instruction manual.

The Products are not designed or manufactured to be used with any equipment, device or

system which requires an extremely high level of reliability the failure or malfunction of which

may result in a direct threat to human life or create a risk of human injury (such as a medical

instrument, transportation equipment, aerospace machinery, nuclear-reactor controller,

fuel-controller or other safety device). ROHM shall bear no responsibility in any way for use of

any of the Products for the above special purposes. If a Product is intended to be used for any

such special purpose, please contact a ROHM sales representative before purchasing.

If you intend to export or ship overseas any Product or technology specified herein that may

be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to

obtain a license or permit under the Law.

Thank you for your accessing to ROHM product informations.

More detail product informations and catalogs are available, please contact us.

ROHM Customer Support System

http://www.rohm.com/contact/

www.rohm.com

R0039A
