REVISION E
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .003[.08] MAX.
3. PARTS TO BE MOLDED TO POSITION.
4. MINIMUM PULLOUT FORCE: 4 lbs.
5. CONTACT MUST BE INSERTED UNTIL
RETENTION FEATURE LOCKS INTO PLACE.
6. ALL FINISHED GOODS ARE TO BE ELECTICAL TESTED INCLUDING HI-POT TEST.
7.TINNED COPPER WIRE CONTAINS LEAD.
8. PARTS ARE TO BE LAYER PACKAGED.
MMSD-XX-XX-X-XX.XX-X-XXX
No OF POSITIONS
-02 THRU -25
(PER ROW)
WIRE GAUGE (AWG)
-20
-22
-24
-26
-28
-30
PLATING SPECIFICATION
-F: FLASH SELECTIVE (USE C-179-XX-F)
-L: LIGHT SELECTIVE (USE C-179-XX-L)
-S: SELECTIVE (USE C-179-XX-S)
OPTION
(SEE SHEET 2)
* -LUS: LATCH UP, STRAIGHT
* -LDS: LATCH DOWN, STRAIGHT
* -LUX: LATCH UP, CROSSED
* -LDX: LATCH DOWN, CROSSED
-P: POLARIZATION(NOT AVAILABLE WITH
-LUS, -LDS, -LUX OPTIONS)
END OPTION
-S: SINGLE END
-D: DOUBLE END(MUST CHOOSE FROM
LAST SET OF OPTIONS.)
ASSEMBLED LENGTH
SPECIFY IN INCHES [USE DWC-XX-XX]
(SINGLE END: 03.00 INCH MINIMUM,
DOUBLE END: 03.25 INCH MINIMUM)
* AVAILABLE ON -D END OPTION ONLY
& APPLIES TO END 2 HOUSING
E
(No OF POS x .100[2.54])
+ .055[1.40] REF
05
01
.350 8.89
REF
10
06
.250 6.35
REF
.100 2.54
REF
"A"
IPD1-XX-D
.505 12.83
REF
C-179-XX-X
.285 7.24
REF
C1
XXXX .125[3.18]
= DWC + .250[6.35]
DWC-XX-10-300
C2
XXXX .125[3.18]
= DWC + .250[6.35]
"A"
SECTION "A"-"A"

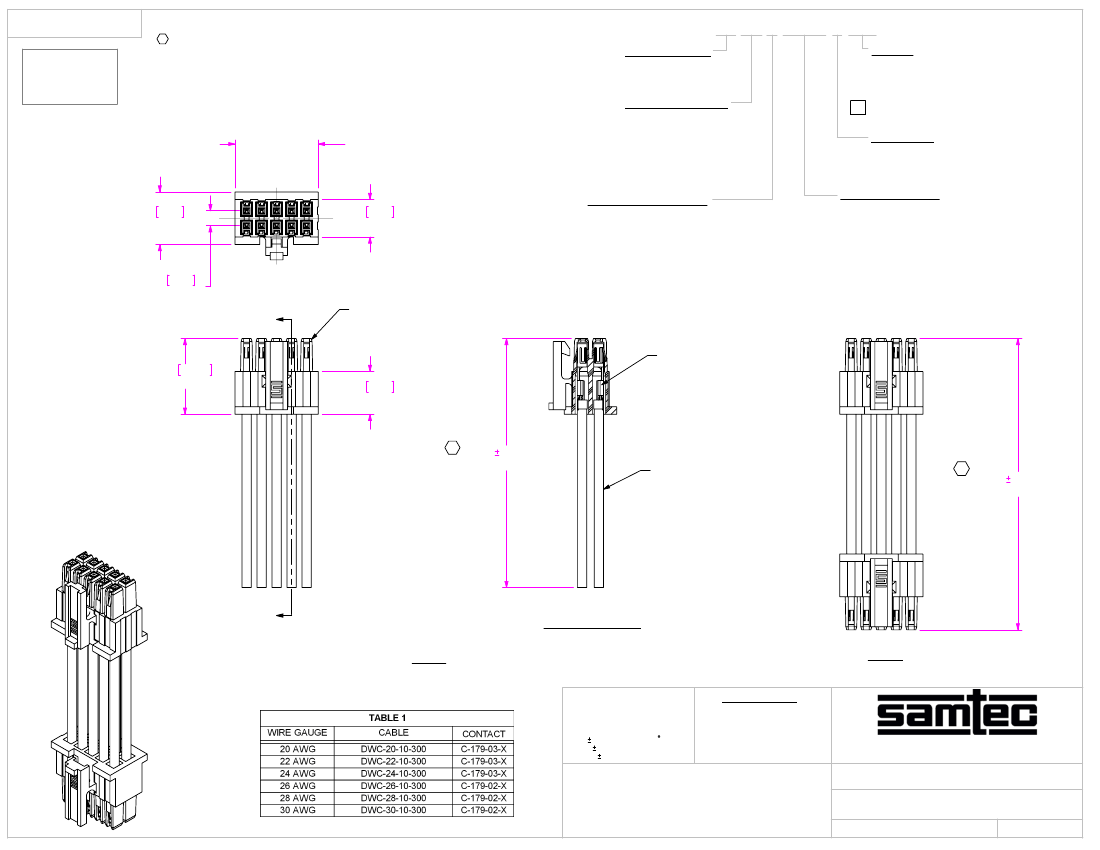

FIG. 1
MMSD-05-22-X-XXXX-S SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
FIG. 2
MMSD-05-22-X-XXXX-D SHOWN
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
HOUSING: NYLON 66, COLOR: WHITE
CONTACT: PHOS BRONZE
CABLE; INSULATION: PVC
WIRE: TINNED COPPER
c:\enterprisevault\DWG\MISC\MKTG\MMSD-XX-XX-X-XX.XX-X-XXX-MKT.SLDDRW
.100[2.54] SOCKET DISCREET CABLE ASSEMBLY
MMSD-XX-XX-X-XX.XX-X-XXX
07/16/2004
SHEET
1
OF
2
BY:
DEAN P
REVISION E

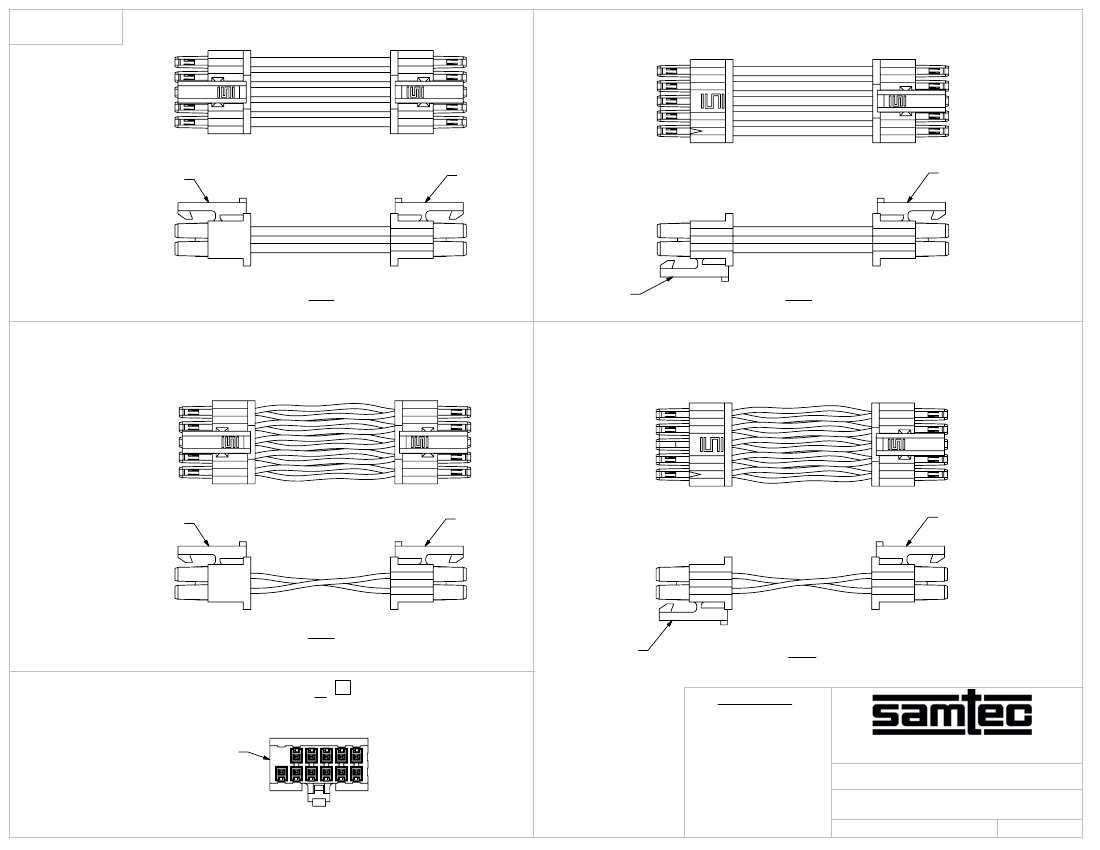

LATCH-
END 2
LATCH-
END 1
LATCH-
END 1
[LATCH UP- CABLE STRAIGHT]
-LUS
LATCH-
END 2
[LATCH DOWN- CABLE STRAIGHT]
-LDS
LATCH-
END 2
LATCH-
END 1
LATCH-
END 1
[LATCH UP- CABLE CROSSED]
-LUX
LATCH-
END 2
[LATCH DOWN- CABLE CROSSED]
-LDX
-P
E
(NOT AVAILABLE WITH
-LUS, -LDS, -LUX OPTIONS)
02 01
IPD1-XX-D-P
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.100[2.54] SOCKET DISCREET CABLE ASSEMBLY
07
SHEET SCALE: 1.5:1
MMSD-XX-XX-X-XX.XX-X-XXX
07/16/2004
SHEET
2
OF
2
BY:
DEAN P
