MEC1-160-02-L-D-EM1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC1-160-02-L-D-EM1

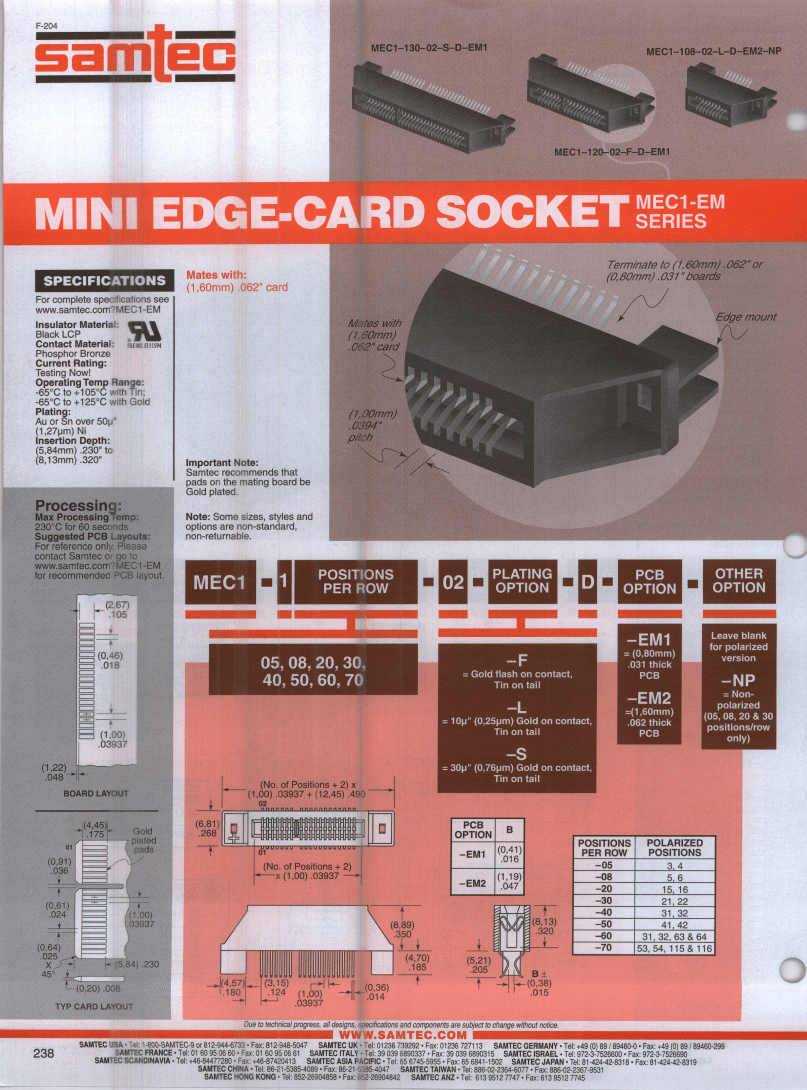

MEC1-160-02-L-D-EM1: DescriptionCard Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size5MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MEC1-160-02-L-D-EM1 Overview

Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,

MEC1-160-02-L-D-EM1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	POLARIZED
body width	0.268 inch
subject depth	0.535 inch
body length	2.931 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	10u inch
Rated current (signal)	1.8 A
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	120
Base Number Matches	1

Preview

Download Datasheet

View All

MEC1-160-02-L-D-EM1 Related Products

	MEC1-160-02-L-D-EM1	MEC1-140-02-L-D-EM1	MEC1-150-02-F-D-EM1	MEC1-150-02-L-D-EM1	MEC1-160-02-F-D-EM1	MEC1-170-02-F-D-EM1	MEC1-130-02-S-D-EM1-NP	MEC1-170-02-S-D-EM1	MEC1-150-02-S-D-EM1
Description	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch
subject depth	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch
body length	2.931 inch	2.144 inch	2.537 inch	2.537 inch	2.931 inch	3.325 inch	1.75 inch	3.325 inch	2.537 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (10) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	10u inch	10u inch	FLASH inch	10u inch	FLASH inch	FLASH inch	30u inch	30u inch	30u inch
Rated current (signal)	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	120	80	100	100	120	140	60	140	100
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED
Base Number Matches	1	1	1	1	1	1	-	-	-
