MEC1-160-02-L-D-NP-A-K-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MEC1-160-02-L-D-NP-A-K-TR

Preview

MEC1-160-02-L-D-NP-A-K-TR: DescriptionCard Edge Connector, 120 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size368KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

MEC1-160-02-L-D-NP-A-K-TR Overview

Card Edge Connector, 120 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

MEC1-160-02-L-D-NP-A-K-TR Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.275 inch
subject depth	0.35 inch
body length	2.462 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.0612 mm
Plating thickness	10u inch
Rated current (signal)	2.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	120
Base Number Matches	1

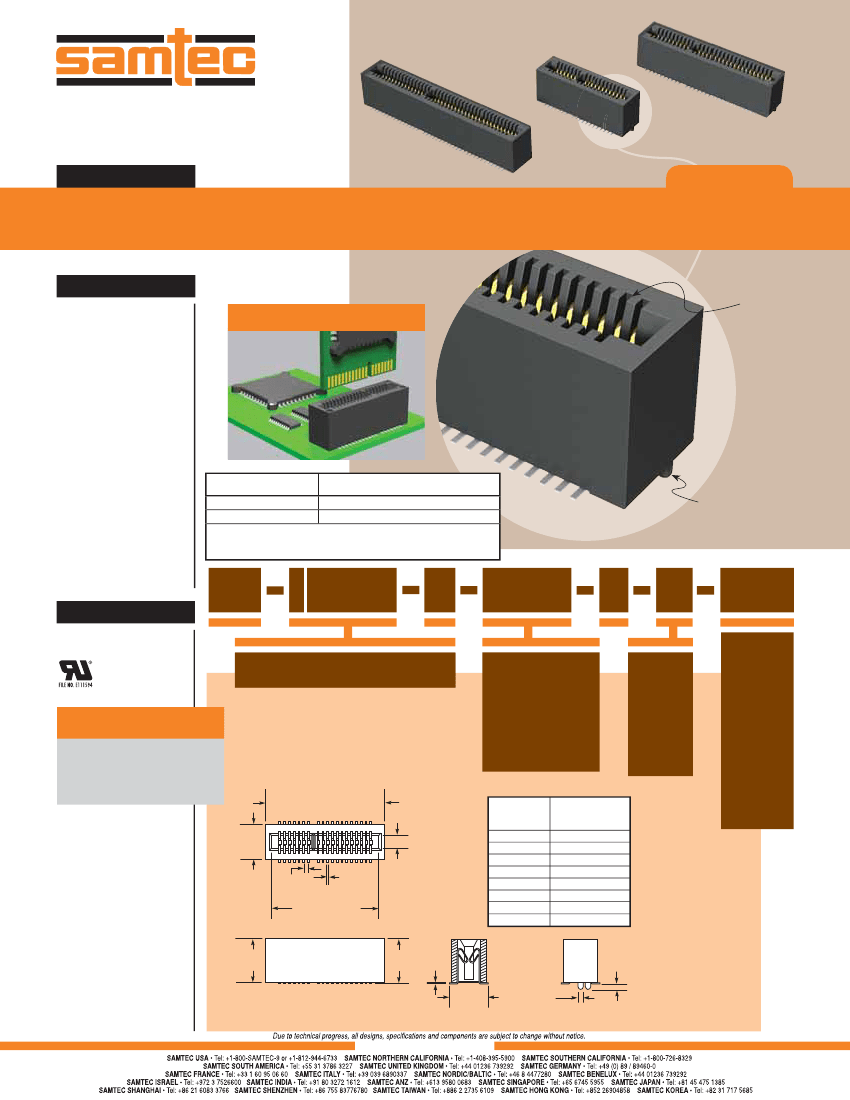

Preview

Download Datasheet

View All

F-214

MEC1–120–02–F–D–A

MEC1–130–02–F–D–A

MEC1–140–02–L–D

(1,00 mm) .0394"

MEC1 SERIES

MINI EDGE CARD SOCKET

SPECIFICATIONS

For complete

speciﬁ

cations and

recommended PCB layouts

see

www.samtec.com?MEC1

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Sn or Au over 50µ"

(1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C

Current Rating:

2.2 A per pin

(2 adjacent pins powered)

Voltage Rating:

300

VAC

Insertion Depth:

(5,84 mm) .230" to

(8,13 mm) .320"

RoHS Compliant:

Yes

Mates with:

(1,60 mm) .062" card

Mates with

(1,60 mm)

.062" card

APPLICATION

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (05-20)

(0,15 mm) .006" max (30-70)

MEC1

Rated @ 3dB Insertion Loss*

9,04 mm Stack Height

Single-Ended Signaling

5.5 GHz / 11 Gbps

Differential Pair Signaling

6.5 GHz / 13 Gbps

*Performance data includes effects of a non-optimized PCB.

Complete test data available at www.samtec.com?MEC1 or

contact

sig@samtec.com

Optional

Alignment pin

MEC1

1

POSITIONS

PER ROW

02

PLATING

OPTION

D

NP

OTHER

OPTION

RECOGNITIONS

For complete

scope

of

recognitions

see

www.samtec.com/quality

–A

05, 08, 20, 30, 40, 50, 60, 70

–F

= Gold ﬂash

on contact,

Matte tin on tail

–NP

= No

Polarization

(05, 08, 20 &

30 positions

only)

Leave

Blank for

polarization

= Alignment

Pin metal or

plastic at

Samtec

discretion.

ALSO AVAILABLE

(MOQ Required)

• Locking Clip

(Manual placement required)

• Other platings

Contact Samtec.

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

–K

= (7,87 mm)

.310" DIA

Polyimide ﬁlm

Pick &

Place Pad

(No. of Positions + 2) x

(1,00) .03937 + (2,54) .100

02

140

POSITIONS

PER ROW

05

08

20

30

40

50

60

70

POLARIZED

POSITIONS

(No Contact)

3,

4

5, 6

15, 16

21, 22

31, 32

41, 42

31, 32,

63 & 64

53, 54, 115 & 116

–TR

= Tape & Reel

(6,99)

.275

(0,36)

(1,00)

.014

.03937

(No. of Positions + 2)

x (1,00) .03937

01

139

Note:

While optimized for

50Ω applications, this

connector with alternative

signal/ground

patterns may

also perform well in certain

75Ω applications. Contact

Samtec for further information.

Important Note:

Samtec recommends that

pads on the mating board be

Gold plated.

Note:

Some

sizes, styles

and

options are non-standard,

non-returnable.

(8,89)

.350

(1,83)

.072

(9,04)

.356

(0,15)

.006

(8,51)

.335

(0,89)

.035

DIA

(1,40)

.055

–A

OPTION

WWW.SAMTEC.COM

MEC1-160-02-L-D-NP-A-K-TR Related Products

	MEC1-160-02-L-D-NP-A-K-TR	MEC1-150-02-F-D-NP-A-K-TR	MEC1-150-02-L-D-NP-A-K-TR	MEC1-170-02-F-D-NP-A-K-TR	MEC1-170-02-L-D-NP-A-K-TR
Description	Card Edge Connector, 120 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 100 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 100 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 140 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 140 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
body width	0.275 inch	0.275 inch	0.275 inch	0.275 inch	0.275 inch
subject depth	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch
body length	2.462 inch	2.069 inch	2.069 inch	2.856 inch	2.856 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	7.0612 mm	7.0612 mm	7.0612 mm	7.0612 mm	7.0612 mm
Plating thickness	10u inch	FLASH inch	10u inch	FLASH inch	10u inch
Rated current (signal)	2.2 A	2.2 A	2.2 A	2.2 A	2.2 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	120	100	100	140	140
Base Number Matches	1	1	1	1	1
