MEC1-170-02-L-D-RA1NP datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC1-170-02-L-D-RA1NP

MEC1-170-02-L-D-RA1NP: DescriptionCard Edge Connector, 140 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size447KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

MEC1-170-02-L-D-RA1NP Overview

Card Edge Connector, 140 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

MEC1-170-02-L-D-RA1NP Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.268 inch
subject depth	0.47 inch
body length	7.2 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.0612 mm
Plating thickness	10u inch
Rated current (signal)	1.8 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
Base Number Matches	1

Preview

Download Datasheet

View All

F-214

MEC1–130–02–L–D–EM2

MEC1–120–02–F–D–EM2

MEC1–120–02–L–D–RA1–SL

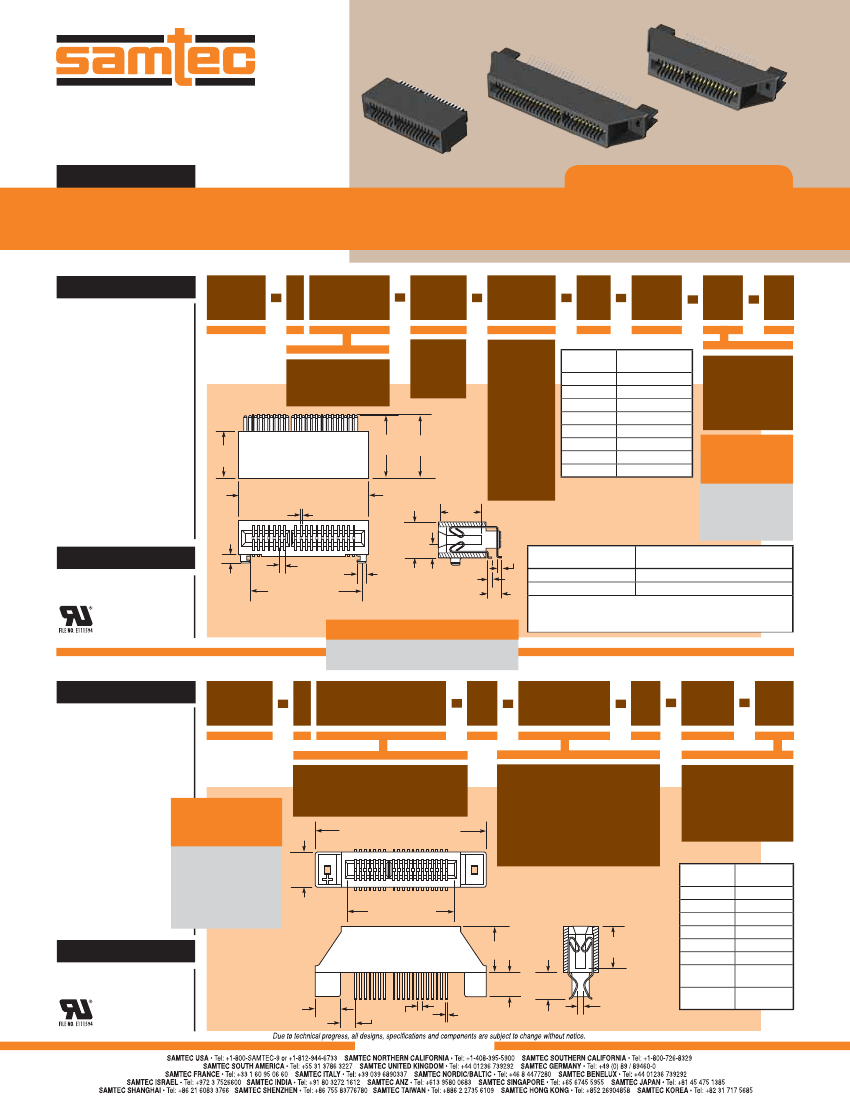

(1,00 mm) .0394"

MEC1-RA, MEC1-EM SERIES

RIGHT ANGLE/EDGE MOUNT SOCKETS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?MEC1-RA

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

1.6 A per pin

(2 adjacent pins powered)

Operating Temp Range:

-55°C to +125°C

Insertion Depth:

(5,84 mm) .230" to

(8,13 mm) .320"

RoHS Compliant:

Yes

MEC1

Mates with:

(1,60 mm)

.062" card

POSITIONS

PER ROW

CARD

SLOT

PLATING

OPTION

RA1

– 02

05, 08, 20, 30,

40, 50, 60, 70

= (1,60 mm)

.062"

thick card

–F

= Gold ﬂash

on contact,

Matte Tin

on tail

–L

(8,89)

.350

(No. of Positions + 2) x

(1,00) .03937 + (2,54) .100

(0,36) .014

(6,81)

.268

(11,68) (11,94)

.460

.470

Processing:

= 10µ"

(0,25 µm)

Gold on

contact,

Matte Tin

on tail

(8,13)

.320

POSITIONS POLARIZED

PER ROW

POSITIONS

3, 4

5, 6

15, 16

21, 22

31, 32

41, 42

31, 32, 63 & 64

53, 54, 115 & 116

–NP

= No Polarization

(8 positions only)

Leave Blank for

polarization

ALSO

AVAILABLE

(MOQ Required)

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (05-40)

(0,15 mm) .006" max (50-70)

Note:

While optimized for 50Ω

• Elevated body

applications, this connector

height

with alternative signal/ground

patterns may also perform well in

• Other platings

certain 75Ω applications. Contact

Contact Samtec.

Samtec for further information.

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(1,24)

.049

(1,00)

.03937

(No. of Positions + 2)

x (1,00) .03937

(1,78)

.070

DIA

(2,51) (1,27)

.050

.099

(3,12) .123

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

APPLICATION

(0,64)

MEC1-RA

Rated @ 3dB Insertion Loss*

.025

6,81 mm Stack Height

Single-Ended Signaling

4.5 GHz / 9 Gbps

Differential Pair Signaling

5.5 GHz / 11 Gbps

*Performance data includes effects of a non-optimized PCB.

Complete test data available at www.samtec.com?MEC1-RA

or contact sig@samtec.com

Samtec recommends that pads

on the mating board be Gold plated.

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?MEC1-EM

MEC1

POSITIONS

PER ROW

PLATING

OPTION

EM2

Insulator Material:

Mates with:

Black LCP

(1,60 mm)

Contact Material:

Phosphor Bronze

.062" card

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

ALSO

Current Rating:

1.8 A per pin

AVAILABLE

(2 adjacent pins powered)

(MOQ Required)

Operating

Temp Range:

• Edge mount leads

-55°C to +125°C

for (0,80 mm) .031"

Insertion Depth:

thick board

(5,84 mm) .230" to

(8,13 mm) .320"

• Other platings

RoHS Compliant:

Contact Samtec.

Yes

Lead–Free Solderable:

Yes

05, 08, 20, 30,

40, 50, 60, 70

(No. of Positions + 2) x

(1,00) .03937 + (12,45) .490

–F

= Gold ﬂash on contact,

Matte Tin on tail

–NP

= No Polarization

(8 positions only)

Leave Blank for

polarization

–L

= 10µ" (0,25 µm) Gold on contact,

Matte Tin on tail

Note:

While optimized for 50Ω applications,

this connector with alternative signal/ground

patterns may also perform well in certain

75Ω applications. Contact Samtec for

further information.

(8,89)

.350

(4,70)

.185

(5,21)

.205

(1,19) ± (0,38)

.047

.015

(8,13)

.320

(6,81)

.268

(No. of Positions + 2)

x (1,00) .03937

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

Note:

Some sizes,

styles and options

are non-standard,

non-returnable.

(4,57)

.180

(3,15)

.124 (1,00)

.03937

(0,36)

.014

POSITIONS POLARIZED

PER ROW POSITIONS

3, 4

5, 6

15, 16

21, 22

31, 32

41, 42

31, 32, 63

& 64

53, 54, 115

& 116

WWW.SAMTEC.COM

138

MEC1-170-02-L-D-RA1NP Related Products

	MEC1-170-02-L-D-RA1NP	MEC1-150-02-L-D-RA1NP-SL	MEC1-160-02-F-D-RA1NP-SL	MEC1-160-02-L-D-RA1NP	MEC1-170-02-F-D-RA1NP	MEC1-140-02-F-D-EM2NP	MEC1-150-02-F-D-EM2NP	MEC1-150-02-L-D-EM2NP	MEC1-160-02-F-D-EM2NP	MEC1-170-02-F-D-EM2NP
Description	Card Edge Connector, 140 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 100 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 120 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 120 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 140 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 80 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 100 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 100 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 120 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 140 Contact(s), 2 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch
subject depth	0.47 inch	0.47 inch	0.47 inch	0.47 inch	0.47 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch
body length	7.2 inch	5.2 inch	6.2 inch	6.2 inch	7.2 inch	4.2 inch	5.2 inch	5.2 inch	6.2 inch	7.2 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	1	1	1	1	1
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	FLASH inch	10u inch	FLASH inch	FLASH inch	FLASH inch	10u inch	FLASH inch	FLASH inch
Rated current (signal)	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	140	100	120	120	140	80	100	100	120	140
Maker	-	-	-	-	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
