MEC8-150-02-L-DV--A datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC8-150-02-L-DV--A

MEC8-150-02-L-DV--A: DescriptionCard Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size680KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MEC8-150-02-L-DV--A Overview

Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

MEC8-150-02-L-DV--A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.032 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	2.3 A
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Base Number Matches	1

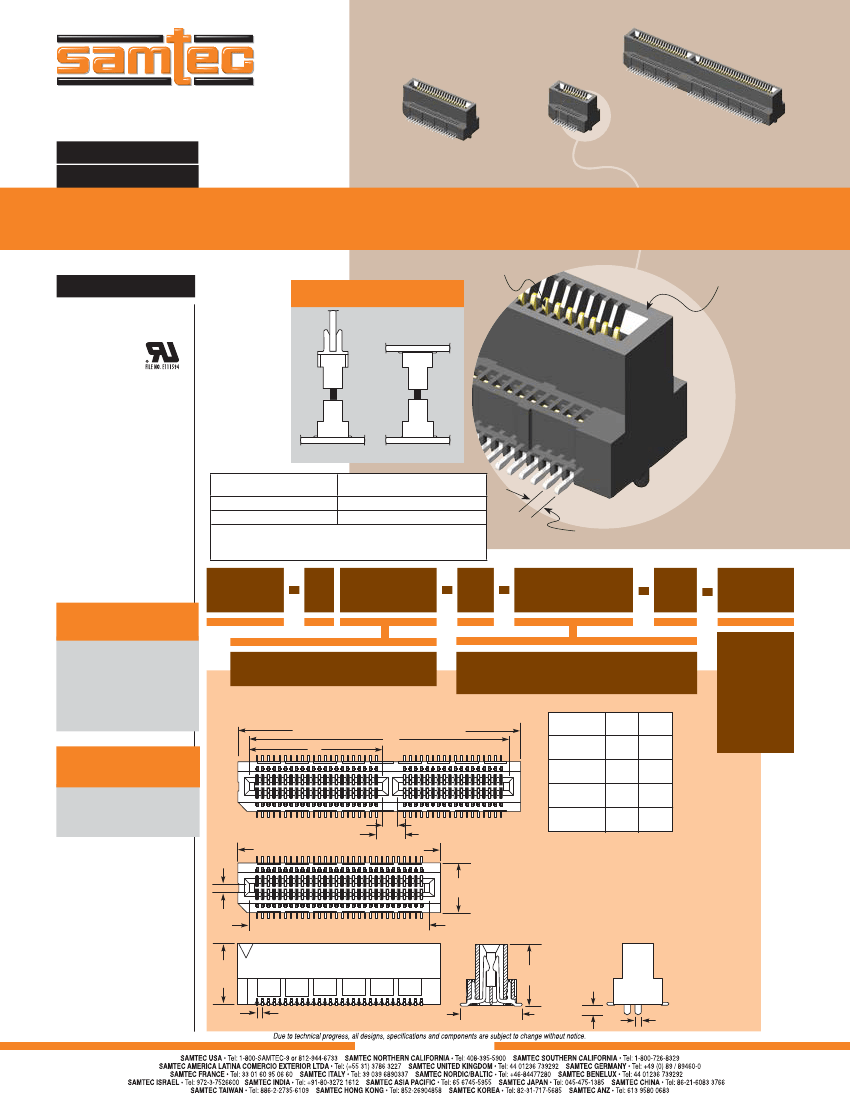

Preview

Download Datasheet

View All

F-213

MEC8–110–02–L–DV–A

MEC8–140–02–L–DV–A

(0,80 mm) .0315"

MEC8-DV SERIES

MEC8–120–02–L–DV–A

VERTICAL MICRO EDGE CARD SOCKET

Mates with (1,60 mm)

.062" thick card

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?MEC8-DV

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C

Insertion Depth:

(4,22 mm) .166" to

(5,66 mm) .223"

Current Rating:

1.8A per contact @ 30°C

Temperature Rise

Voltage Rating:

265 VAC

RoHS Compliant:

Yes

Mates with:

(1,60 mm) .062"

thick cards

Variety of

lead counts

APPLICATIONS

–EM to –DV

–DV to –DV

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (10-50)

(0,15 mm) .006" max (60-70)

MEC8-DV

Rated @ 3dB Insertion Loss*

8,65 mm Stack Height

Single-Ended Signaling

7.0 GHz / 14 Gbps

Differential Pair Signaling

7.0 GHz / 14 Gbps

*Performance data includes effects of a non-optimized PCB.

Complete test data available at www.samtec.com?MEC8-DV

or contact sig@samtec.com

(0,80 mm)

.0315" pitch

MEC8

POSITIONS

PER ROW

PLATING

OPTION

OTHER

OPTION

APPLICATION

SPECIFIC OPTION

• 1 mm mating card

thickness option

• Locking clip

(Manual placement

required)

Call Samtec.

–A

10, 20, 30, 40, 50, 60, 70

–L

= 10µ" (0,25 µm) Gold on contact, Matte Tin on tail

POSITIONS

PER ROW

(2,00) .0787

(1,80)

.071

= Alignment

–K

No. of Positions x (0,80) .0315 + (7,80) .307

ALSO

AVAILABLE

Right angle and edge mount.

See www.samtec?MEC8-RA

or www.samtec?MEC8-EM

(18,90) (36,60)

.744

1.441

(22,90) (44,60)

.902

1.756

(26,90) (52,60)

1.059 2.071

(30,90) (60,60)

1.217 2.386

= (5,50 mm)

.217" DIA

Polyimide Pick

& Place Pad

(4,00) .157

No. of Positions x (0,80) .0315 + (4,60) .181

(7,00)

.276

Note:

While optimized for

50Ω applications, this

connector with alternative

signal/ground patterns may

also perform well in certain

75Ω applications. Contact

Samtec for further information.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

No. of Positions x (0,80) .0315 + (1,40) .055

(8,50)

.335

(8,65)

.341

–A

OPTION

(1,35)

.053

(0,90)

.035 DIA

(0,80) .0315

(8,80) .346

WWW.SAMTEC.COM
