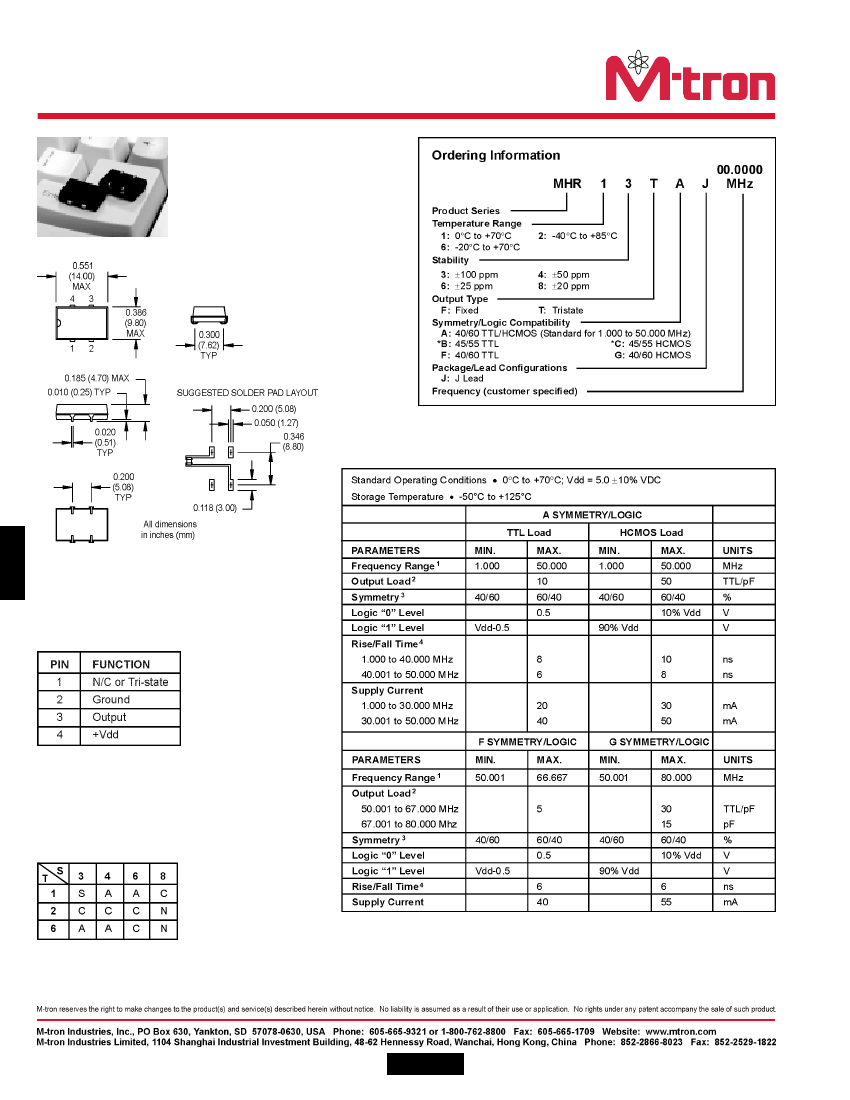

MHR Series HCMOS/TTL
Compatible Oscillators
MHR Series HCMOS/TTL
Compatible Plastic Package
Surface Mount Oscillators
* Consult factory regarding availability of B and C symmetry codes.
Electrical Specifications
NOTE:
A capacitor of value 0.01
mF
or greater between
Vdd and Ground is recommended.
Pin Connections
Tri-state Control Logic
Pin 1 high or floating: clock signal output.
Pin 1 low: output disabled to high impedance.
Available Stabilities
vs. Temperature
A = Available
N = Not Available
S = Standard
C = Consult Factory
Because this product is based on AT-strip technology, not all frequencies in the range stated are available.
Contact the factory for availability of specific frequencies.
2
TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.
3
Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.
4
Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd
with HCMOS load.
See page 136, Figure 2 for suggested solder profile.
