BS616LV1013ECP70 datasheet, PDF

Datasheet> All Categories > storage> storage> BS616LV1013ECP70

BS616LV1013ECP70: DescriptionStandard SRAM, 64KX16, 70ns, CMOS, PDSO44, TSOP2-44; Categorystorage storage; File Size256KB，9 Pages; ManufacturerBrilliance; Environmental Compliance

Download Datasheet Parametric Compare View All

BS616LV1013ECP70 Overview

Standard SRAM, 64KX16, 70ns, CMOS, PDSO44, TSOP2-44

BS616LV1013ECP70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	TSOP2, TSOP44,.46,32
Reach Compliance Code	unknown
Maximum access time	70 ns
Spare memory width	8
I/O type	COMMON
JESD-30 code	R-PDSO-G44
JESD-609 code	e1
length	18.41 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	16
Humidity sensitivity level	3
Number of functions	1
Number of terminals	44
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	3 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	3e-7 A
Minimum standby current	1.5 V
Maximum slew rate	0.02 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

Preview

Download Datasheet

View All

BSI

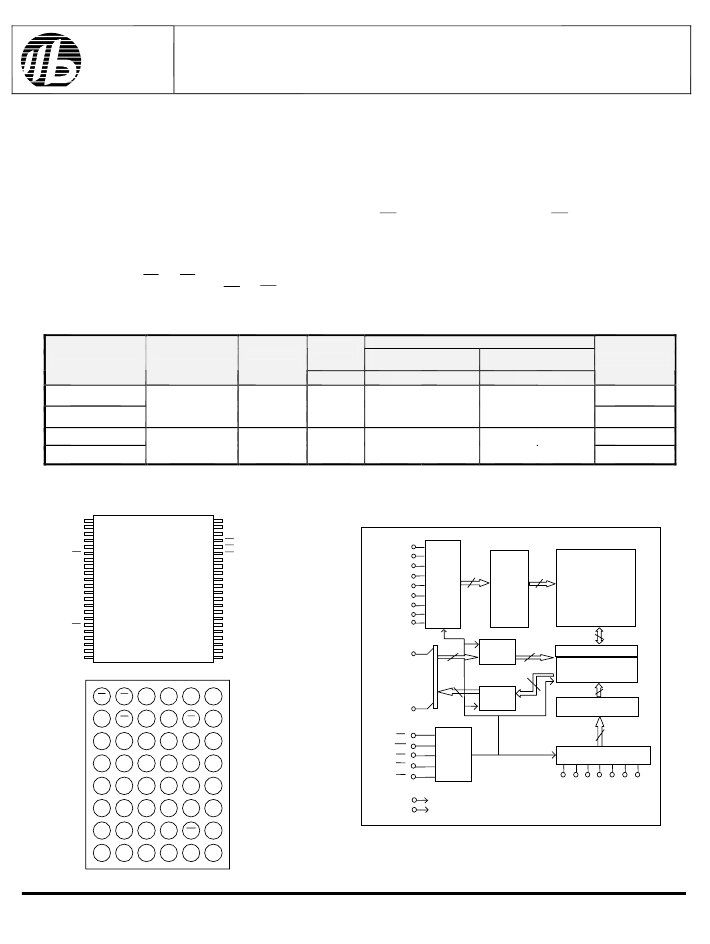

FEATURES

Very Low Power/Voltage CMOS SRAM

64K X 16 bit

DESCRIPTION

BS616LV1013

• Very low operation voltage : 2.7 ~ 3.6V

• Very low power consumption :

Vcc = 3.0V

C-grade : 20mA (Max.) operating current

I - grade : 25mA (Max.) operating current

0.02uA (Typ.) CMOS standby current

High speed access time :

-70

70ns (Max.) at Vcc = 3.0V

• Automatic power down when chip is deselected

• Three state outputs and TTL compatible

• Fully static operation

• Data retention supply voltage as low as 1.5V

• Easy expansion with CE and OE options

• I/O Configuration x8/x16 selectable by LB and UB pin

The BS616LV1013 is a high performance, very low power CMOS Static

Random Access Memory organized as 65,536 words by 16 bits and

operates from a wide range of 2.7V to 3.6V supply voltage.

Advanced CMOS technology and circuit techniques provide both high

speed and low power features with a typical CMOS standby current

of 0.02uA and maximum access time of 70ns in 3.0V operation.

Easy memory expansion is provided by an active LOW chip

enable(CE) and active LOW output enable(OE) and three-state output

drivers.

The BS616LV1013 has an automatic power down feature, reducing the

power consumption significantly when chip is deselected.

The BS616LV1013 is available in the JEDEC standard 44-pin TSOP

Type II and 48-pin BGA package.

PRODUCT FAMILY

PRODUCT

FAMILY

BS616LV1013EC

BS616LV1013AC

BS616LV1013EI

BS616LV1013AI

OPERATING

TEMPERATURE

Vcc

RANGE

SPEED

(ns)

Vcc=3.0V

POWER DISSIPATION

STANDBY

Operating

CCSB1

, Max)

PKG TYPE

TSOP2-44

BGA-48-0608

Vcc=3.0 V

+0 C to +70 C

2.7V ~ 3.6V

0.5uA

20mA

-40 C to +85 C

2.7V ~ 3.6V

1.5uA

25mA

TSOP2-44

BGA-48-0608

PIN CONFIGURATIONS

DQ0

DQ1

DQ2

DQ3

VCC

GND

DQ4

DQ5

DQ6

DQ7

A15

A14

A13

A12

DQ15

DQ14

DQ13

DQ12

GND

VCC

DQ11

DQ10

DQ9

DQ8

A10

A11

BLOCK DIAGRAM

BS616LV1013EC

BS616LV1013EI

A13

A15

A14

A12

Address

Input

Buffer

Row

Decoder

512

Memory Array

512 x 2048

2048

DQ0

Data

Input

Buffer

Column I/O

DQ15

Write Driver

Sense Amp

128

Column Decoder

Data

Output

Buffer

IO8

IO0

IO9

IO10

IO1

IO2

Control

Address Input Buffer

VSS

IO11

IO3

VCC

IO12

IO4

VSS

A11 A9 A3 A2 A1 A0 A10

IO14

IO13

A14

A15

IO5

IO6

Vcc

Gnd

IO15

A12

A13

IO7

A10

A11

Brilliance Semiconductor, Inc

reserves the right to modify document contents without notice.

R0201-BS616LV1013

Revision 1.1

Jan.

2004

BS616LV1013ECP70 Related Products

	BS616LV1013ECP70	BS616LV1013EIP70	BS616LV1013AIP70	BS616LV1013ACP70	BS616LV1013ACG70	BS616LV1013EIG70	BS616LV1013ECG70	BS616LV1013AIG70
Description	Standard SRAM, 64KX16, 70ns, CMOS, PDSO44, TSOP2-44	Standard SRAM, 64KX16, 70ns, CMOS, PDSO44, TSOP2-44	Standard SRAM, 64KX16, 70ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 64KX16, 70ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 64KX16, 70ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 64KX16, 70ns, CMOS, PDSO44, TSOP2-44	Standard SRAM, 64KX16, 70ns, CMOS, PDSO44, TSOP2-44	Standard SRAM, 64KX16, 70ns, CMOS, PBGA48, MINIBGA-48
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	LFBGA, BGA48,6X8,30
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns
Spare memory width	8	8	8	8	8	8	8	8
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48	R-PDSO-G44	R-PDSO-G44	R-PBGA-B48
JESD-609 code	e1	e1	e1	e1	e1	e1	e1	e1
length	18.41 mm	18.41 mm	8 mm	8 mm	8 mm	18.41 mm	18.41 mm	8 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	16	16	16	16	16	16	16	16
Humidity sensitivity level	3	3	3	3	3	3	3	3
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	44	44	48	48	48	44	44	48
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C
organize	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	LFBGA	LFBGA	LFBGA	TSOP2	TSOP2	LFBGA
Encapsulate equivalent code	TSOP44,.46,32	TSOP44,.46,32	BGA48,6X8,30	BGA48,6X8,30	BGA48,6X8,30	TSOP44,.46,32	TSOP44,.46,32	BGA48,6X8,30
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	GRID ARRAY, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.4 mm	1.4 mm	1.4 mm	1.2 mm	1.2 mm	1.4 mm
Maximum standby current	3e-7 A	3e-7 A	3e-7 A	3e-7 A	3e-7 A	3e-7 A	3e-7 A	3e-7 A
Minimum standby current	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum slew rate	0.02 mA	0.025 mA	0.025 mA	0.02 mA	0.02 mA	0.025 mA	0.02 mA	0.025 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)
Terminal form	GULL WING	GULL WING	BALL	BALL	BALL	GULL WING	GULL WING	BALL
Terminal pitch	0.8 mm	0.8 mm	0.75 mm	0.75 mm	0.75 mm	0.8 mm	0.8 mm	0.75 mm
Terminal location	DUAL	DUAL	BOTTOM	BOTTOM	BOTTOM	DUAL	DUAL	BOTTOM
width	10.16 mm	10.16 mm	6 mm	6 mm	6 mm	10.16 mm	10.16 mm	6 mm
Base Number Matches	1	1	1	1	1	1	1	1
