Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Specification
LUYT801
SSC
Drawn
Approval
CUSTOMER
Approval
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
LUYT801
1. Features
2. Absolute Maximum Ratings
3. Electro Characteristics
4. Optical characteristics
5. Outline Dimension
6. Packing
7. Soldering
8. Precaution for use
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
LUYT801
Description
This surface-mount LED comes
in PLCC standard package
dimension. It has a substrate
made up of a molded plastic
reflector sitting on top of a bent
lead frame. The die is attached
within the reflector cavity and the
cavity is encapsulated by epoxy
or silicone
The package design coupled
with careful selection of
component materials allow these
products to perform with high
reliability in a larger temperature
range -40℃ to 100℃. The high
reliability feature is crucial to
Automotive interior and Indoor
ESS.

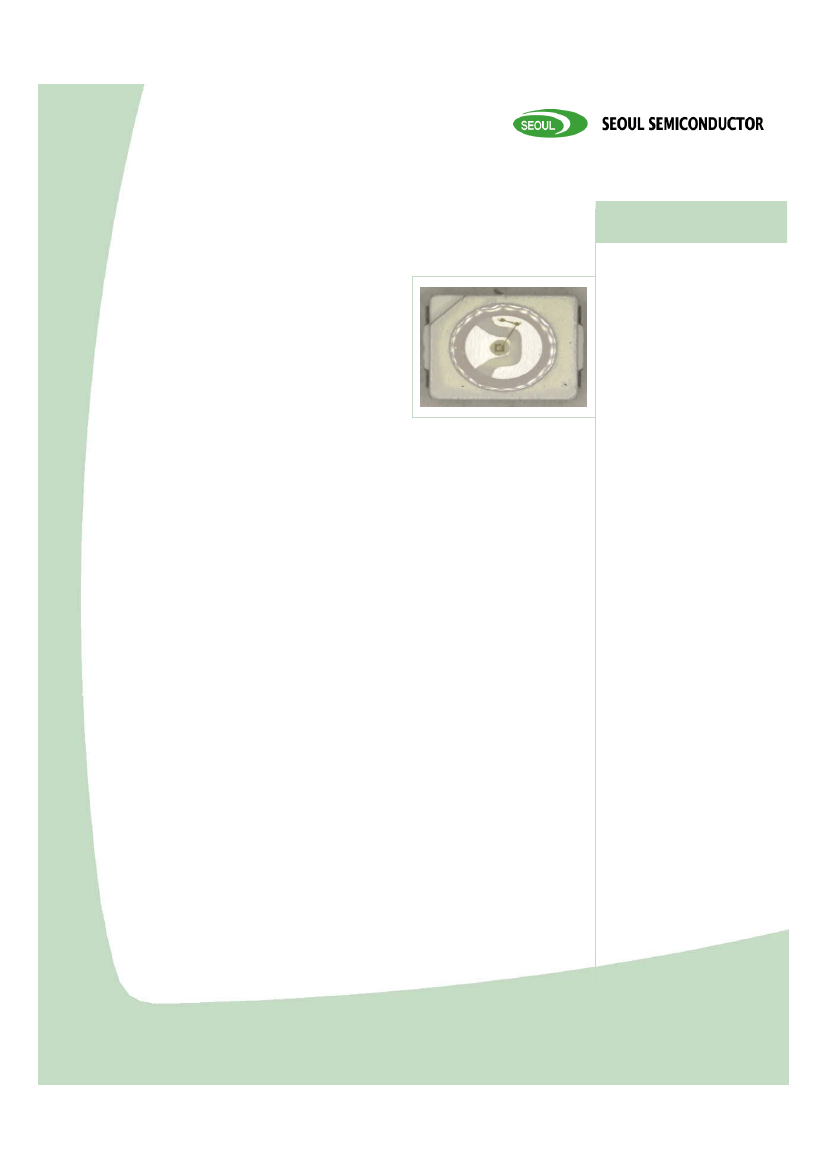

사진
•
LUYT801
Features
Industry Standard PLCC
SMT package
•
High brightness using
AlInGaP and InGaN
dice technologies
•
Available in multiple
colors
•
High volume, high
reliability
Applications
•
•
Interior automotive
Electronic Signs and
Signals
•
Office Automation,
Electrical Appliances,
Industrial Equipment
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
1. Features
• Yellow colored SMT package
• Material AlInGaP
• Suitable for all SMT assembly methods
Suitable for all soldering methods
• RoHS Compliant
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
2. Absolute maximum ratings
Parameter
Power Dissipation
Forward Current
Peak Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Symbol
P
d
I
F
I
FM
*2
V
R
T
opr
T
stg
Value
75
30
100
5
-40 ~ +100
-40 ~ +100
Unit
mW
mA
mA
V
o
C
o
C
*1 Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
*2
IFM
was measured at
TW
≤
1msec of pulse width and D
≤
1/10 of duty ratio.
3. Electric characteristics
Parameter
Forward Voltage
Reverse Current
Luminance Intensity
*1
Peak Wavelength
Dominant Wavelength
Spectral Bandwidth 50%
Viewing Angle
*2
Symbol
V
F
I
R
I
V
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min
1.8
-
90
-
584
-
-
Typ
2.1
-
130
593
587
15
120
Max
2.5
10
210
-
592
-
-
Unit
V
µA
mcd
nm
nm
nm
deg.
λ
P
λ
d
∆λ
2
θ
½
*1. The luminous intensity IV was measured at the peak of the spatial pattern which may not be aligned with the mechanical axis of
the LED package. Luminous Intensity Measurement allowance is
±10%
*2. 2
θ
½
is the off-axis where the luminous intensity is 1/2 of the peak intensity.
Document No. : SSC-QP-7-07-24 (Rev.00)
