UF1504: Description1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size100KB，2 Pages; ManufacturerTak Cheong; Websitehttp://www.takcheong.com/

Download Datasheet Parametric Compare View All

UF1504 Overview

1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15

UF1504 Parametric

Parameter Name	Attribute value
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
Other features	LOW LEAKAGE CURRENT
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

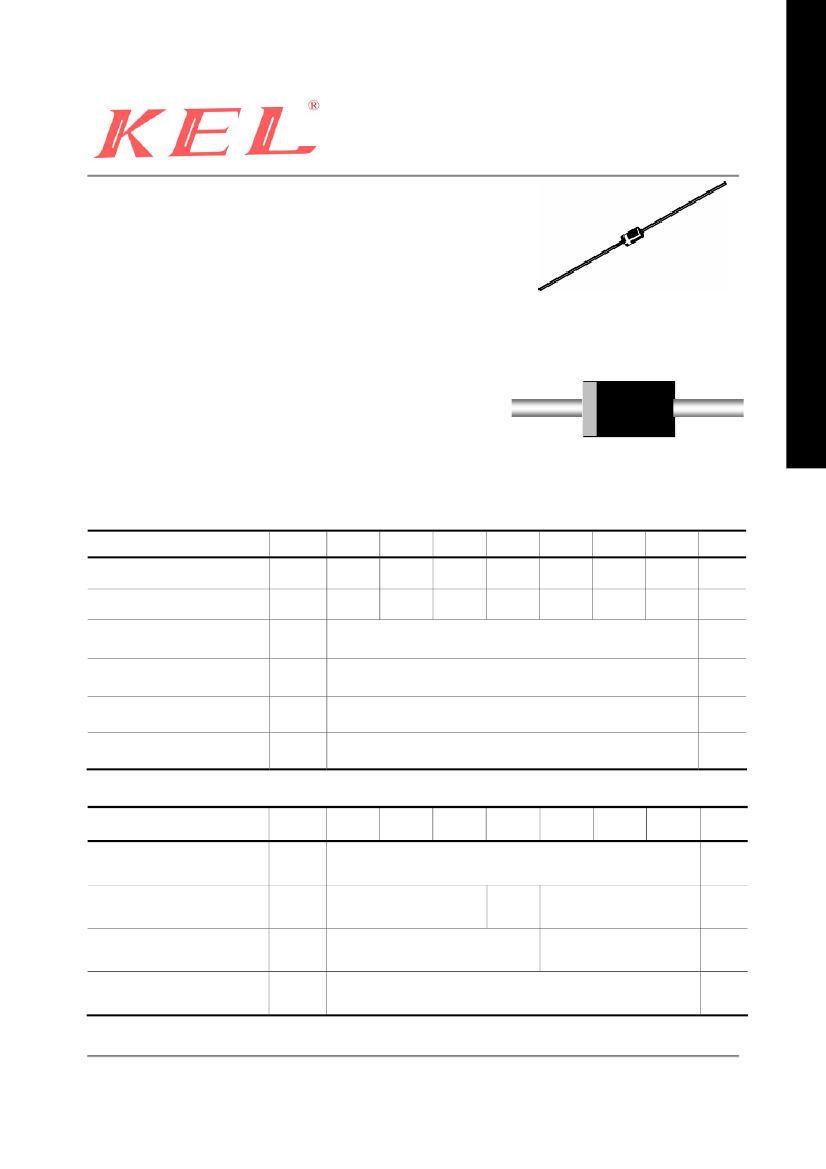

P re lim in ary Da t a S he et

UF1501

THRU

UF1507

1.5AMP.

Ultrafast Rectifiers（GPP）

VOLTAGE:50 TO 1000V

CURRENT:1.5A

AXIAL LEAD

DO-15

Specification Features:

Case: Epoxy, Molded

Weight: 0.4Gram (Approximately)

High current capability, Low leakage current

DEVICE MARKING DIAGRAM

Finish: All External Surfaces Corrosion Resistant And Terminal Leads Are

Readily Solderable

Lead And Mounting Surface Temperature For Soldering Purposed:

260℃ Max. For 10 Seconds 1/16 Inch From Case

RoHS Compliant

Cathode Indicated By Polarity Band

KEL

: KEL Logo

UF150X: Device Name UF1501~ UF1507

Absolute Maximum Ratings

Parameter

Maximum Repetitive Peak

Reverse Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectifier Current.

(0.375” Lead Length @ T

A

=75℃)

Non-repetitive Peak Forward

Surge Current.

(8.3mS Single Half Sine-wave)

Operating Junction and Storage

Temperature Range

Thermal Resistance

(Junction to Ambient)

(Note 1)

T

A

= 25°C unless otherwise noted

UF

Symbol

1501

1502

1503

V

RRM

V

R

I

F(AV)

I

FSM

T

J,

T

STG

R

θJA

50

100

200

UF

1504

400

1.5

50

-65 to +150

50

UF

1505

600

UF

1506

800

UF150X

KEL

High surge current capability

UF

1507

1000

Units

V

A

°C

°C/W

Electrical Characteristics

Parameter

T

A

= 25°C unless otherwise noted

Symbol

UF

1501

UF

1502

UF

1503

UF

1504

5

UF

1505

UF

1506

UF

1507

Units

Reverse Current @V

R

I

R

uA

Forward Voltage @1.5A

Maximum Reverse Recovery Time

(Note 2)

Total Capacitance

@VR=4V, f=1MHz

V

F

1.0

1.3

1.7

V

T

RR

50

75

nS

C

T

25

pF

Apr. 2008 Release / Orig

Page 1

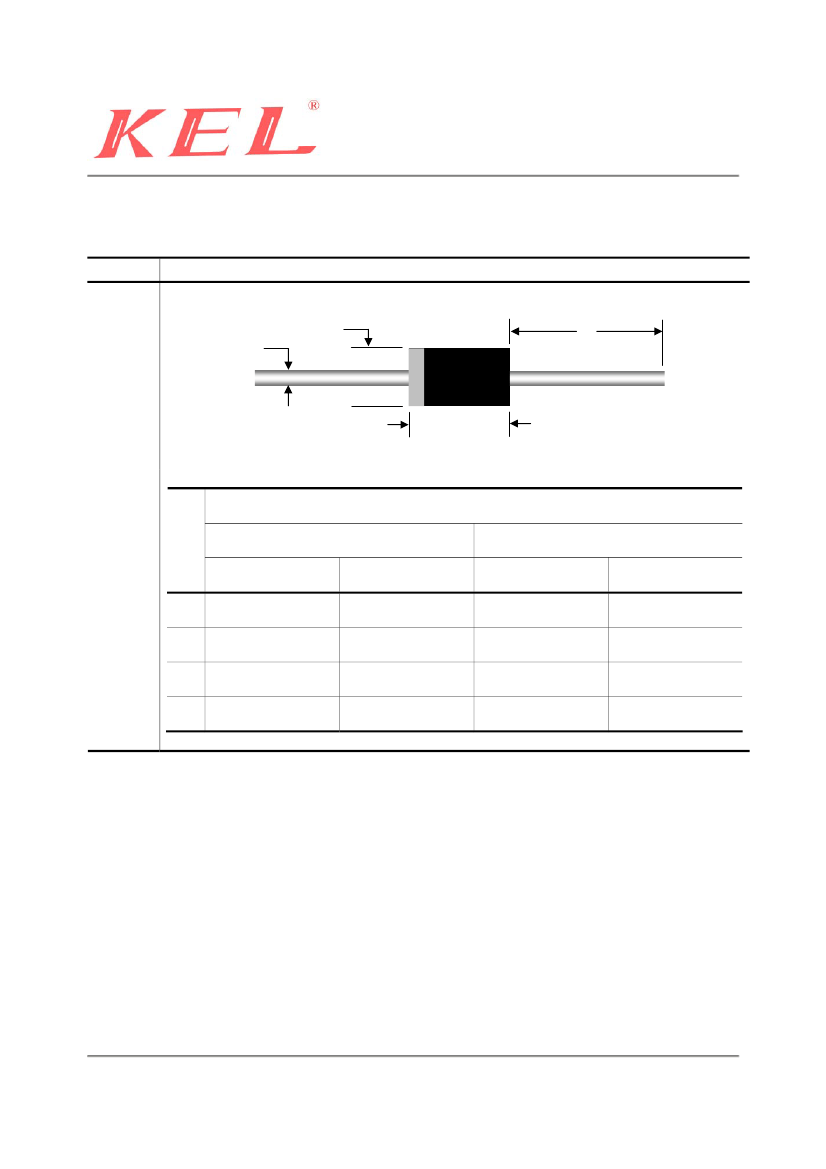

UF1501 through UF1507 Series

UF1504 Related Products

	UF1504	UF1501	UF1503	UF1502	UF1507	UF1506	UF1505
Description	1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 50 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 200 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 100 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 1000 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 800 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-15
Parts packaging code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2	2	2	2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	50 V	200 V	100 V	1000 V	800 V	600 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.075 µs	0.075 µs	0.075 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	1	1	1
