PT5023N

Description
Switching Regulator, Voltage-mode, 0.6A, 800kHz Switching Freq-Max, Hybrid, VERTICAL THROUGH HOLE, SIP-3
CategoryPower/power management    The power supply circuit
File Size493KB,2 Pages
ManufacturerPower Trends Inc

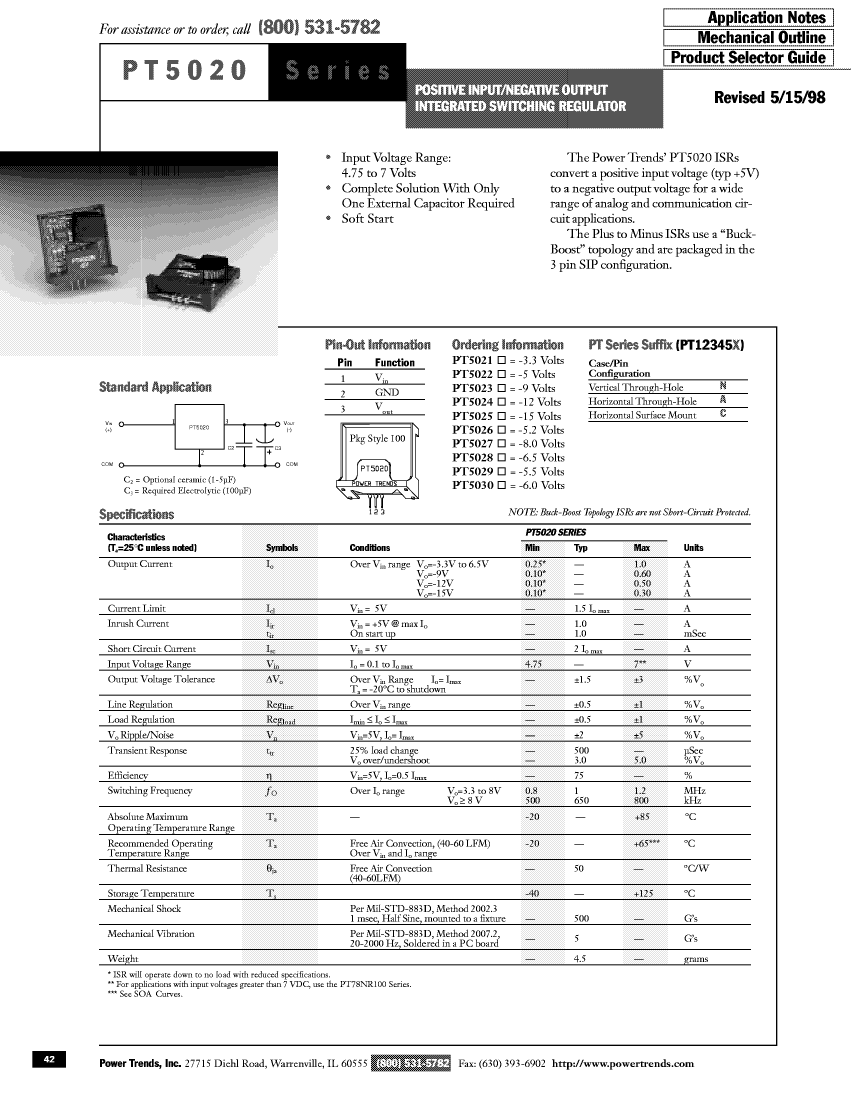

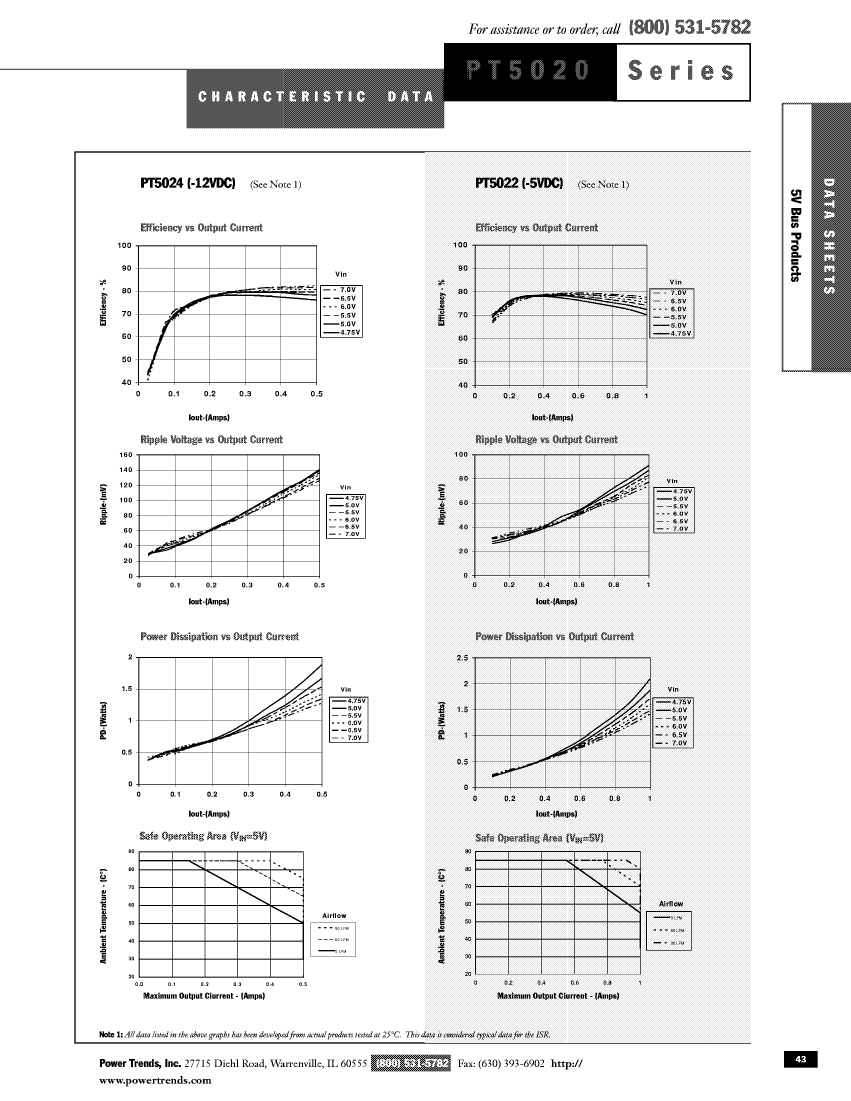

Download Datasheet Parametric View All

PT5023N Online Shopping

Suppliers Part Number Price MOQ In stock
PT5023N - - View Buy Now

PT5023N Overview

Switching Regulator, Voltage-mode, 0.6A, 800kHz Switching Freq-Max, Hybrid, VERTICAL THROUGH HOLE, SIP-3

PT5023N Parametric

Parameter NameAttribute value
package instructionVERTICAL THROUGH HOLE, SIP-3
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
control modeVOLTAGE-MODE
Maximum input voltage7 V
Minimum input voltage4.75 V
Nominal input voltage5 V
JESD-30 codeR-XSMA-T3
Number of functions1
Number of terminals3
Maximum operating temperature65 °C
Minimum operating temperature-20 °C
Maximum output current0.6 A
Nominal output voltage-9 V
Package body materialUNSPECIFIED
Encapsulate equivalent codeSIP3(UNSPEC)
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
surface mountNO
Switch configurationBUCK-BOOST
Maximum switching frequency800 kHz
technologyHYBRID
Temperature levelOTHER
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Base Number Matches1
