HANBit

HDD64M72D18RPW

DDR SDRAM Module 512Mbyte (64Mx72bit), based on 32Mx8, 4Banks, 8K

Ref., 184Pin-DIMM with PLL & Register

Part No. HDD64M72D18RPW

GENERAL DESCRIPTION

The HDD64M72D18RPW is a 64M x 72 bit Double Data Rate(DDR) Synchronous Dynamic RAM high-density memory

module. The module consists of eighteen CMOS 32M x 8 bit with 4banks DDR SDRAMs in 66pin TSOP-II 400mil packages

and 2K EEPROM in 8-pin TSSOP package on a 184-pin glass-epoxy. Four 0.1uF decoupling capacitors are mounted on

the printed circuit board in parallel for each DDR SDRAM. The HDD64M72D18RPW is a DIMM( Dual in line Memory

Module) .Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible

on both edges of DQS. Range of operating frequencies, programmable latencies and burst lengths allows the same device

to be useful for a variety of high bandwidth, high performance memory system applications. All module components may be

powered from a single 2.5V DC power supply and all inputs and outputs are SSTL_2 compatible.

FEATURES

•

Part Identification

HDD64M72D18RPW

–

10A :

100MHz (CL=2)

HDD64M72D18RPW

–

13A : 133MHz (CL=2)

HDD64M72D18RPW

–

13B :

133MHz (CL=2.5)

•

512MB(64Mx72) Registered DDR DIMM based on 32Mx8 DDR SDRAM

•

2.5V

0.2V VDD and VDDQ power supply

•

Auto & self refresh capability (8K Cycles / 64ms)

•

All input and output are compatible with SSTL_2 interface

•

Data(DQ), Data strobes and write masks latched on the rising and falling edges of the clock

•

All Addresses and control inputs except Data(DQ), Data strobes and Data masks latched on the rising edges of the clock

•

MRS cycle with address key programs

- Latency (Access from column address) : 2, 2.5

- Burst length : 2, 4, 8

- Data scramble : Sequential & Interleave

•

Data(DQ), Data strobes and write masks latched on the rising and falling edges of the clock

•

All Addresses and control inputs except Data(DQ), Data strobes and Data masks latched on the rising edges of the clock

•

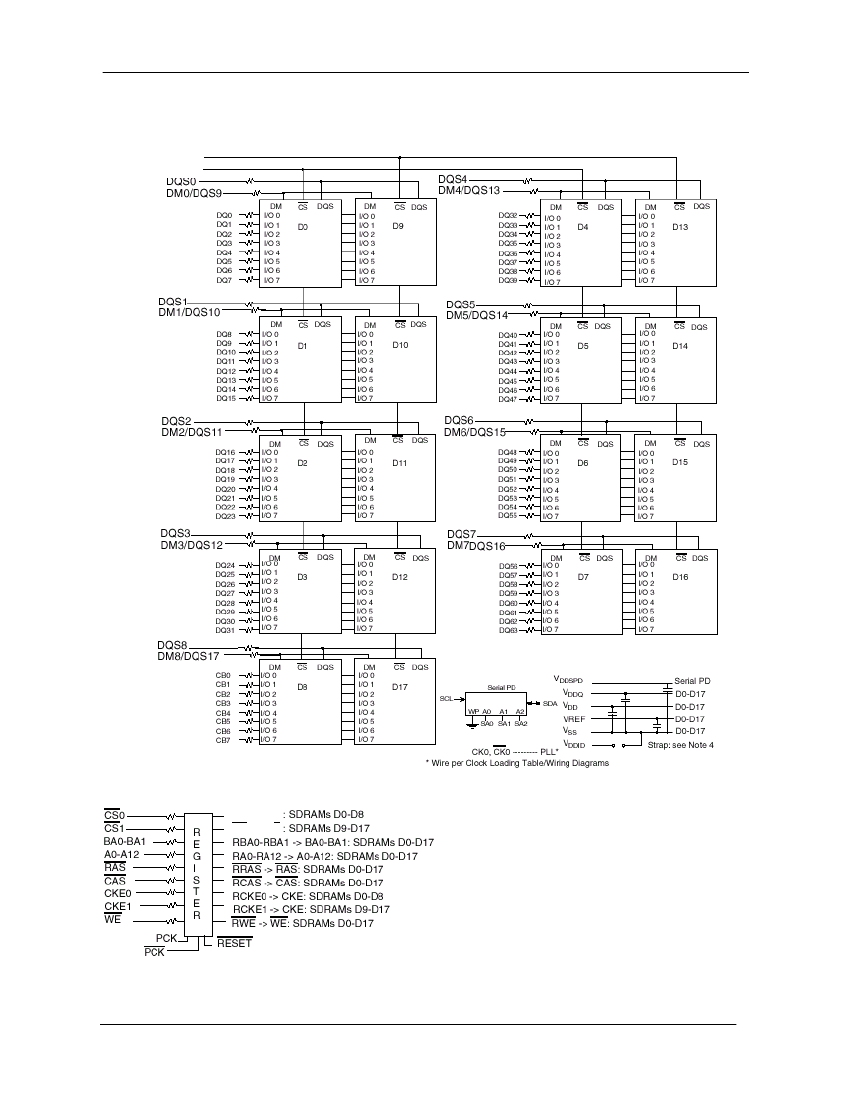

The used device is 8M x 8bit x 4Banks DDR SDRAM

URL : www.hbe.co.kr

REV 1.0 (August.2002)

HANBit Electronics Co.,Ltd.
