LG30 / SMLG30
TO-8 THIN-FILM LINEARIZER
FOR THE G30
•
WIDE TEMPERATURE OPERATION
•
YIELDS LINEAR ATTENUATION (dB)
FOR LINEAR CONTROL VOLTAGE
Linearity Specifications (Rev. Date: 3/02)*
Temperature
25°C
-54°C to +85°C
Typical
±1.0
dB
<
±1.5
dB
Guaranteed Max.
±1.5
dB
±2.0
dB

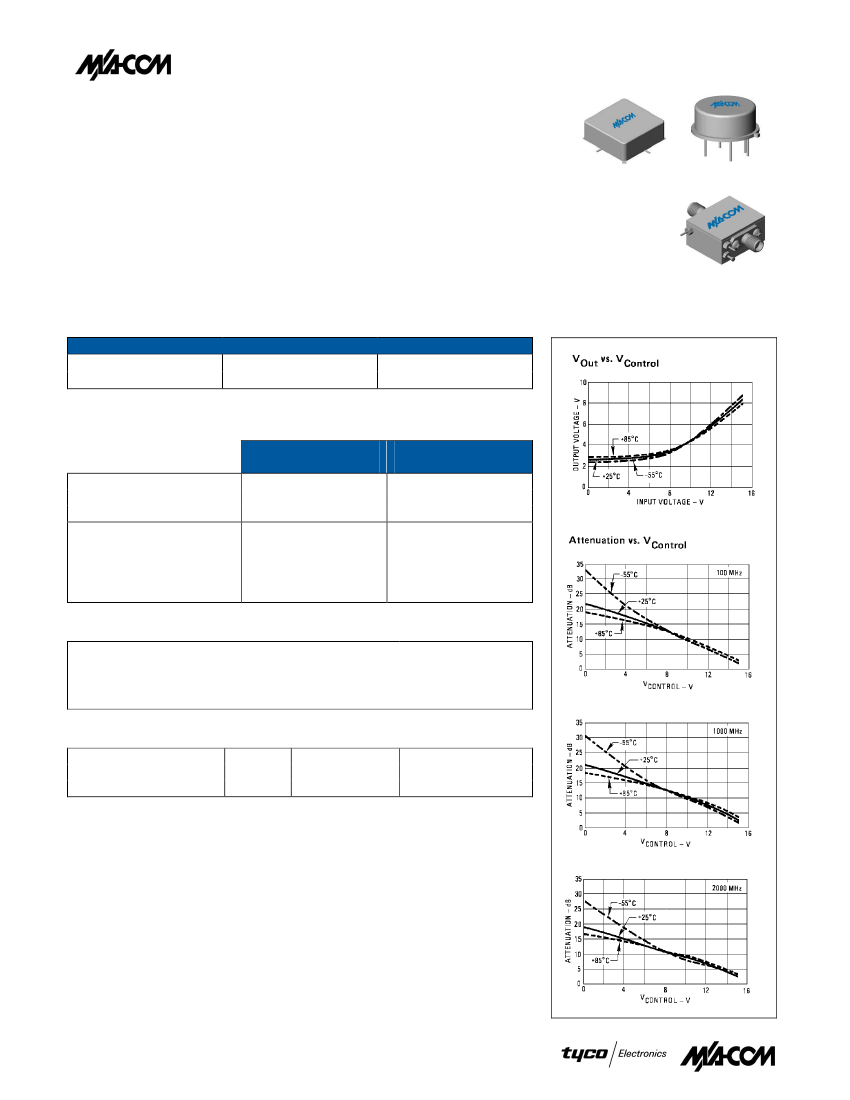

Typical Performance @ 25°C
* Frequency: 100-2000 MHz; attenuation range: 3 to 25 dB
Typical Current Drain
-V
+V
V
con
Combination of
LG30 and G30
-V
+V
V
con
Control Voltage = 0 V
(Max. Attenuation)
3 mA
5 mA
6 mA
Control Voltage = 15
V (Min. Attenuation)
15 mA
14 mA
12 mA
3 mA
12 mA
6 mA
15 mA
21 mA
12 mA
Absolute Maximum Ratings
Storage Temperature
Max. Case Temperature
Max. DC Voltage
“S” Series Burn-in Temperature (Case)
-62°C to +125°C
125°C
+17 Volts
125°C
Outline Drawings
Package
Figure
Model
TO-8
BJ
LG30
Surface Mount
AD
SMLG30
SMA Connectorized
CG
CLG30
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s) or information
contained herein without notice. M/A-COM makes no warranty, representation or guarantee
regarding the suitability of its products for any particular purpose, nor does M/A-COM assume any
liability whatsoever arising out of the use or application of any product(s) or information.
North America: 1-800-366-2266
Visit www.macom.com for complete contact and product information.
