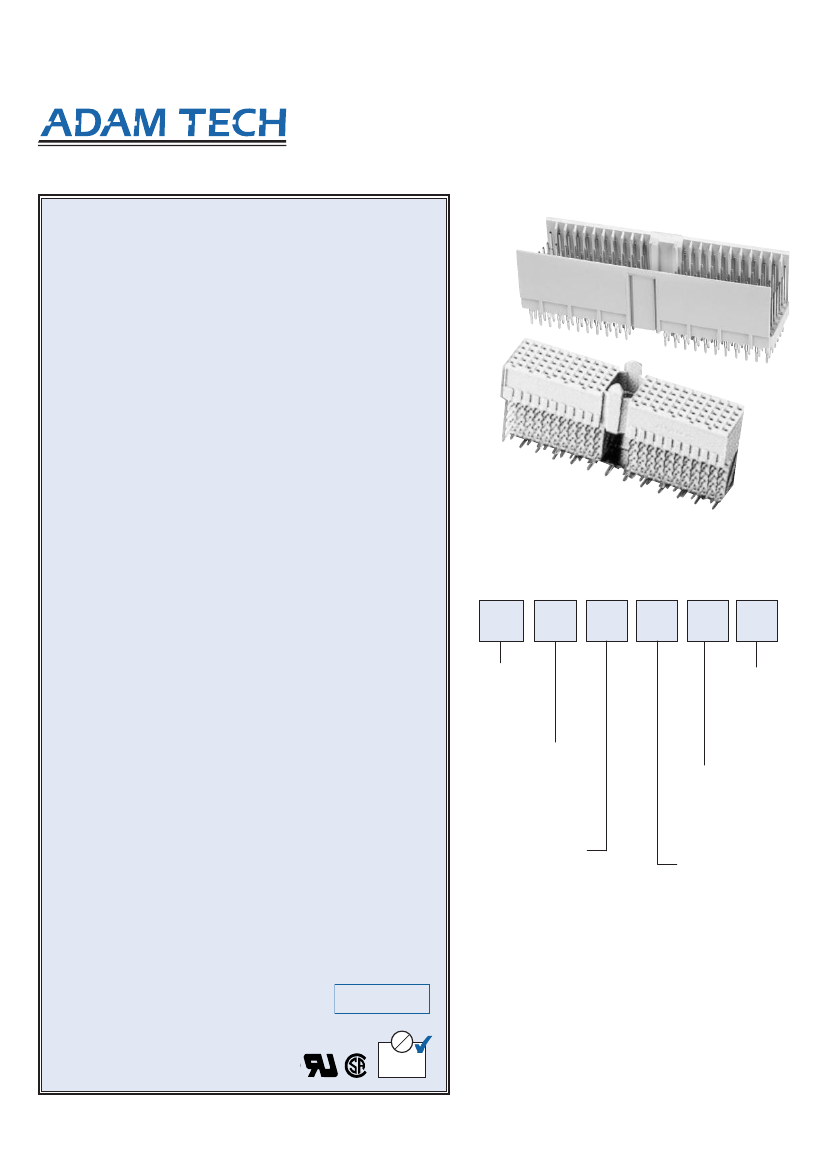

COMPACT PCI
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech 2PCI Series 2.00mm Compact PCI connector system is
a hybrid of PCI using the Eurocard form popularized in VME bus.
This high density, compact, 2.00mm pin and socket set is vertically
mounted and features positive card retention with superior shock and
vibration advantages. Adam Tech’s advanced contact system
provides a high performance gas tight connection with low
inductance and controlled impedance making this series ideal for PCI
signaling. This connector's controlled impedance minimizes
unwanted signal reflections and enables Compact PCI systems to
have eight slots, as compared to the desktop PC's four. Features
include external metal shield and numerous grounding tabs for low
ground bounce and reliable operation in noisy environments. Adam
Tech also offers a special high performance plated thru-hole PCB
version and is approved for NASA applications.
FEATURES:
Press-fit compliant termination
Provides 3 mating levels
Shield for EMI/RFI protection
Compatible with high speed data applications
MATING CONNECTORS:
Adam Tech 2PCI series and all industry standard 2.0mm
Hard Metric Connectors.
SPECIFICATIONS:
Material:
Standard insulator: PBT glass filled, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Beige
Contacts: Brass or Phosphor Bronze
Shield: Copper Alloy, Tin Plated
Contact Plating:
Gold over Nickel underplate on contact area, Tin over Copper
underplate on tails
Electrical:
Operating voltage: 500V AC max.
Current rating: 1 Amp max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 10000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 0.168 lbs / contact max.
Withdrawal force: 0.033 lbs / contact min
Temperature Rating:
Operating temperature: -55°C to +125°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic tubes
2.00mm CENTERLINE
2PCI SERIES
ORDERING INFORMATION
2PCI
A
M
154
A
0
SERIES
INDICATOR
2PCI
= 2.0mm
Compact PCI
Connector
TYPE
A, AB19, AB22,
AB25, B19, B22,
B25, C
SHIELD OPTIONS
0
= No Shield
1
= Upper Shield
2
= Lower Shield
3
= Upper &
Lower Shield
CONTACT LENGTH
MALE
= A Thru L
FEMALE
= Z
(see pg 225)
CONTACT TYPE
M
= Male, Straight
F
= Female, Right Angle
POSITIONS
55, 77, 95, 110, 120,
125, 127, 133, 146,
154, 169,175
HI-TEMP
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
INSULATOR
AVA I L A B L E
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
OPTIONS:
Add designator(s) to end of part number
NP
= No locating peg
ST
= Straight non-press fit solder tail
HT
= Hi-Temp insulator for Hi-Temp soldering processes
up to 260°C
224
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
