2.00mm RECEPTACLE STRIPS
Adam Technologies, Inc.
INTRODUCTION:

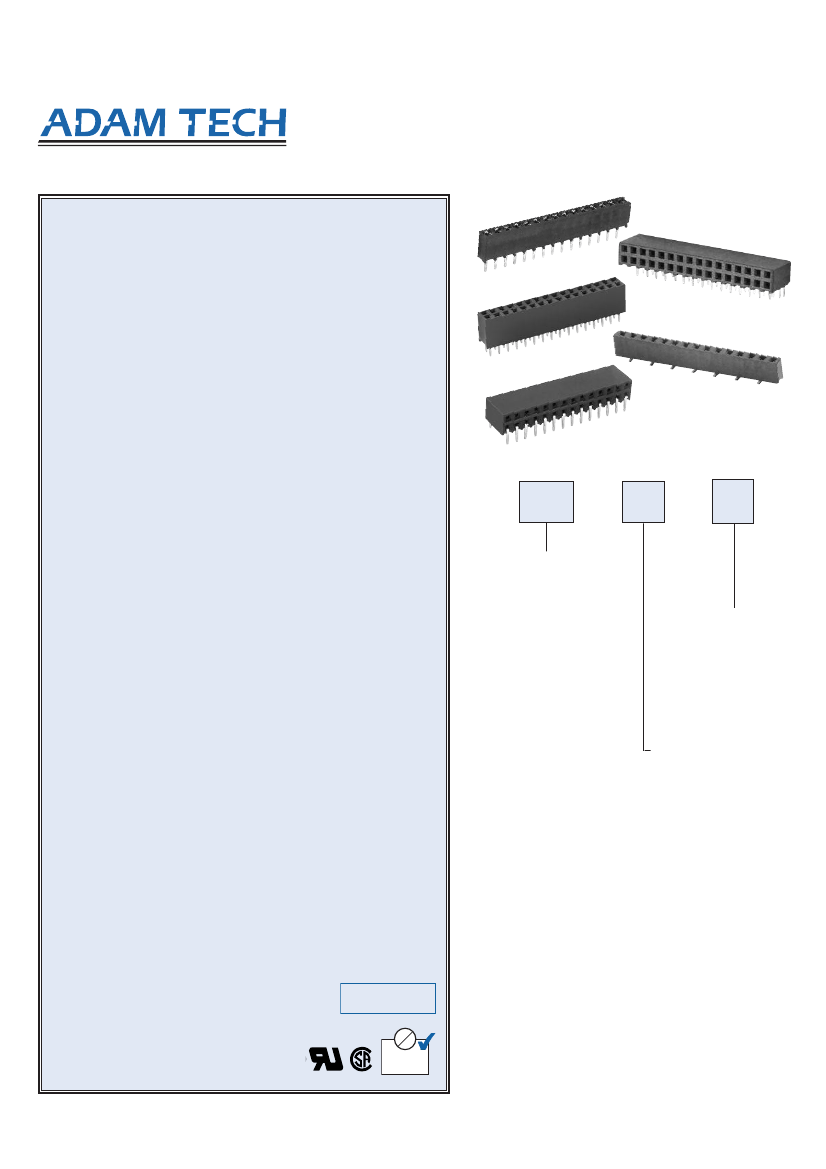

Adam Tech 2RS Series 2.00mm Receptacle Strips are offered in
several sizes and profiles designed to satisfy most 2.00mm socket
requirements. Available in Single and Dual rows, they are offered in
Straight, Right Angle, SMT, Bottom Entry and Pass Through PCB
mounting styles. Each type has a specially designed contact system
which uses a wiping mating action and produces a high normal force
connection with gold, tin or selective gold plating. All are available
with Standard or Hi-Temp Thermoplastic insulators. Our SMT
offering is available with optional pick and place pads and tape & reel
packaging.
FEATURES:
Single and dual row in straight, right angle and SMT mounting forms
Top, side and bottom entry versions
Plated full gold, full tin or duplex plated
Five different body heights
Standard PBT insulator or optional Hi Temp insulator
Tape and reel packaging available
MATING CONNECTORS:
Adam Tech 2PH headers and all industry standard 2.0mm pin
headers with a .020” [0.5mm] square pin.
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforeced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Contact Plating:
G = Gold flash (30u” optional) over nickel underplate overall
SG = Gold flash (30u” optional) over nickel underplate on
contact area, tin over copper underplate on tails.
T = Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 0.313 lbs per contact max.
Withdrawal force: 0.175 lbs per contact min.
Temperature Rating:
Operating temperature: -40°C to +105°C
PACKAGING:
Anti-ESD plastic trays
(Tape and Reel optional for SMT option)
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
.079" [2.00] CENTERLINE
2RS SERIES
ORDERING INFORMATION
2RS1
40
G
SERIES INDICATOR
2RS1=
2.00mm Single Row,
Vertical Mount,
Receptacle Strip
2RS2
= 2.00mm Dual Row,
PLATING
Vertical Mount,
G
= Gold plated
Receptacle Strip
SG
= Gold plated
2RS1R=
2.00mm Single Row,
contact area,
Right Angle,
tin plated
Receptacle Strip
solder tails
2RS2R=
2.00mm Dual Row,
T
= Tin plated
Right Angle,
Receptacle Strip
2RS4
= 2.00mm 4 Row,
Vertical Mount,
POSITIONS
Receptacle Strip
Single Row:
2 thru 40
(see pg 165]
Dual Row:
4 thru 80
2RS2BR
= 2.00mm Dual Row,
Four Row:
8 thru 120
Right Angle, 3-Sided
Contact Receptacle Strip
2RS1H=
2.00mm Single Row, Vertical Mount,
.248” Height Receptacle Strip
2RS2H=
2.00mm Dual Row, Vertical Mount,
.248” Height Receptacle Strip
2RS2T
= 2.00 mm Dual Row, Surface Mount,
.106” Height, Top Entry Receptacle Strip
2RS2B=
2.00mm Dual Row, Surface Mount,
.106” Height, Bottom Entry Receptacle Strip
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold plating in contact area
SMT
= SMT leads with Hi-Temp insulator dual row
SMT-A
= SMT Single Row Type A with Hi-Temp insulator
SMT-B
= SMT Single Row Type B with Hi-Temp insulator
P
= Optional guide peg on SMT version
PP
= Pick and place pad
HT
= Hi-Temp insulator for Hi-Temp soldering processes
up to 260°C
(Add this option for thru-hole products only.
All SMT products are manufactured with Hi-Temp insulators)
HI-TEMP
INSULATOR
AVA I L A B L E
Pb
UL
®
®
®
D E
COMPLIANT
2002
/ 95
/ EC
V
RoHS
296
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
