AD6C332
1 Form B
Solid State Relay
DESCRIPTION
The AD6C332 is a bi-directional, single-pole, single-throw, normally closed multipurpose solid-state relay. It is designed to replace
electromechanical relays in general purpose switching applications. The relay consists of an integrated circuit that drives two rugged
source-to-source depletion type DMOS transistors - optically coupled to a light emitting diode. The output MOS transistors are protected
with free-wheeling diodes that can handle up to 5A of inrush current, making the relay ideal for switching lamps and highly inductive loads.
FEATURES
APPLICATIONS
•
•
•
•
•
Low On-resistance (10 Ohms MAX)
Low input control power consumption (2.5mA TYP)
200mA maximum continuous load current
High input-to-output isolation
Long life/high reliability
•
•
•
•
•
Reed relay replacement
Meter reading systems
Medical equipment
Battery monitoring
Multiplexers
OPTIONS/SUFFIXES*
ABSOLUTE MAXIMUM RATINGS*
PARAMETER
Storage Temperature
Operating Temperature
Continuous Input Current
Transient Input Current
Reverse Input Control
Voltage
Output Power Dissipation
UNIT
°C
°C
mA
mA
V
mW
6
800
MIN
-55
-40
TYP
MAX
125
85
40
400
•
•
-S
-TR
Surface Mount Leadform Option
Tape and Reel Option
NOTE: Suffixes listed above are not included in marking on
device for part number identification.
SCHEMATIC DIAGRAM
*The values indicated are absolute stress ratings. Functional operation of the
device is not implied at these or any conditions in excess of those defined in
electrical characteristics section of this document. Exposure to Absolute
Ratings may cause permanent damage to the device and may adversely
affect reliability.
APPROVALS
•
•
BABT CERTIFICATE #607836
BS EN 60950, BS EN 41003, BS EN 60065
CSA CERTIFICATE #LR111581-1
© 2004 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 1 of 5
AD6C332
rev 1.40 (10/25/2004)
AD6C332
1 Form B
Solid State Relay
ELECTRICAL CHARACTERISTICS - 25°C
PARAMETER
INPUT SPECIFICATIONS
LED Forward Voltage
LED Reverse Voltage
Turn-On Current
Turn-Off Current
V
V
mA
mA
6
1.2
12
0.5
2.5
5
1.5
If = 5mA
Ir = 10uA
Io = 200mA
UNIT
MIN
TYP
MAX
TEST CONDITIONS
OUTPUT SPECIFICATIONS
Blocking Voltage
Continuous Load Current
On-Resistance
Leakage Current
Output Capacitance
Offset Voltage
V
mA
Ω
µ
A
pF
mV
8
0.2
250
200
10
1
25
0.2
Io = 1uA
If = 0mA
Io = 200mA
Vo = 250V
Vo = 25V, f = 1.0MHz
If = 0mA
COUPLED SPECIFICATIONS
Isolation Voltage
-H Suffix
Turn-On Time
Turn-Off Time
Isolation Resistance
Coupled Capacitance
Contact Transient Ratio
V
V
ms
ms
G
Ω
pF
V/
µ
s
2000
100
3
7000
dV = 50V
2500
3750
0.8
1
2
5
T = 1 minute
T = 1 minute
If = 0mA, Io = 200mA
If = 5mA, Io = 200mA
© 2004 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 2 of 5
AD6C332
rev 1.40 (10/25/2004)
AD6C332
1 Form B
Solid State Relay
PERFORMANCE DATA
AD6C332
Typical Turn-On Time Distribution
N = 100, Ambient Temperature = 25°C
AD6C332
Typical Turn-Off Time Distribution
N = 100, Ambient Temperature = 25°C
40
Device Count
30
20
10
0
0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95
Turn-On Tim e (m s)
40
Device Count
30
20
10
0
0.9
1
1.1
1.2
1.3
1.4
1.5
1.6
Turn-Off Tim e (m s)
AD6C332
Typical On-Resistance Distribution
N = 100, Ambient Temperature = 25°C
AD6C332
Typical Leakage Current Distribution
N = 100, Ambient Temperature = 25°C
50
Device Count
40
30
20
10
0
6.5
7
7.5
8
8.5
9
9.5
10
On-Resistance (ohm s)
Device Count
50
40
30
20
10
0
0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4
Leakage Current (uA)
AD6C332
Typical Blocking Voltage Distribution
N = 100, Ambient Temperature = 25°C
AD6C332
Maximum Load Current vs. Temperature
40
30
20
10
0
250 255 260 265 270 275 280 285
Blocking Voltage (V)
Load Current (mA)
50
Device Count
250
200
150
100
50
0
20
40
60
-4
0
-2
0
80
0
Tem perature (C)
© 2004 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 3 of 5
AD6C332
rev 1.40 (10/25/2004)
AD6C332
1 Form B
Solid State Relay

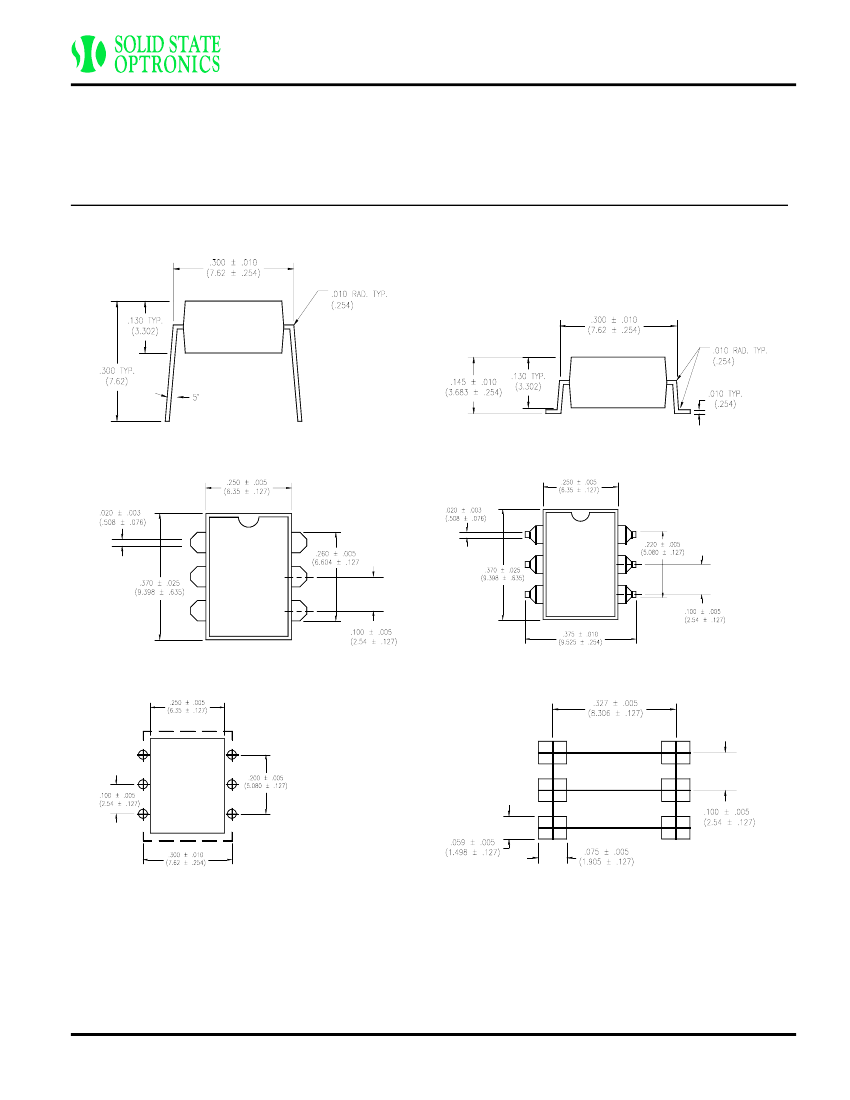

MECHANICAL DIMENSIONS
6 PIN DUAL IN-LINE PACKAGE
6 PIN SURFACE MOUNT DEVICE
END VIEW
END VIEW
TOP VIEW
TOP VIEW
BOTTOM VIEW/
BOARD PATTERN
BOTTOM VIEW/
BOARD PATTERN
© 2004 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 4 of 5
AD6C332
rev 1.40 (10/25/2004)
AD6C332
1 Form B
Solid State Relay
DISCLAIMER
Solid State Optronics (SSO) makes no warranties or representations with regards to the completeness and accuracy of this document. SSO
reserves the right to make changes to product description, specifications at any time without further notice.
SSO shall not assume any liability arising out of the application or use of any product or circuit described herein. Neither circuit patent
licenses nor indemnity are expressed or implied.
Except as specified in SSO's Standard Terms & Conditions, SSO disclaims liability for consequential or other damage, and we make no other
warranty, expressed or implied, including merchantability and fitness for particular use.
LIFE SUPPORT POLICY
SSO does not authorize use of its devices in life support applications wherein failure or malfunction of a device may lead to personal injury or
death. Users of SSO devices in life support applications assume all risks of such use and agree to indemnify SSO against any and all
damages resulting from such use. Life support devices are defined as devices or systems which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure to perform when used properly in accordance with instructions for use can be
reasonably expected to result in significant injury to the user, or (d) a critical component in any component of a life support device or system
whose failure can be reasonably expected to cause failure of the life support device or system, or to affect its safety or effectiveness.
© 2004 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 5 of 5
AD6C332
rev 1.40 (10/25/2004)
