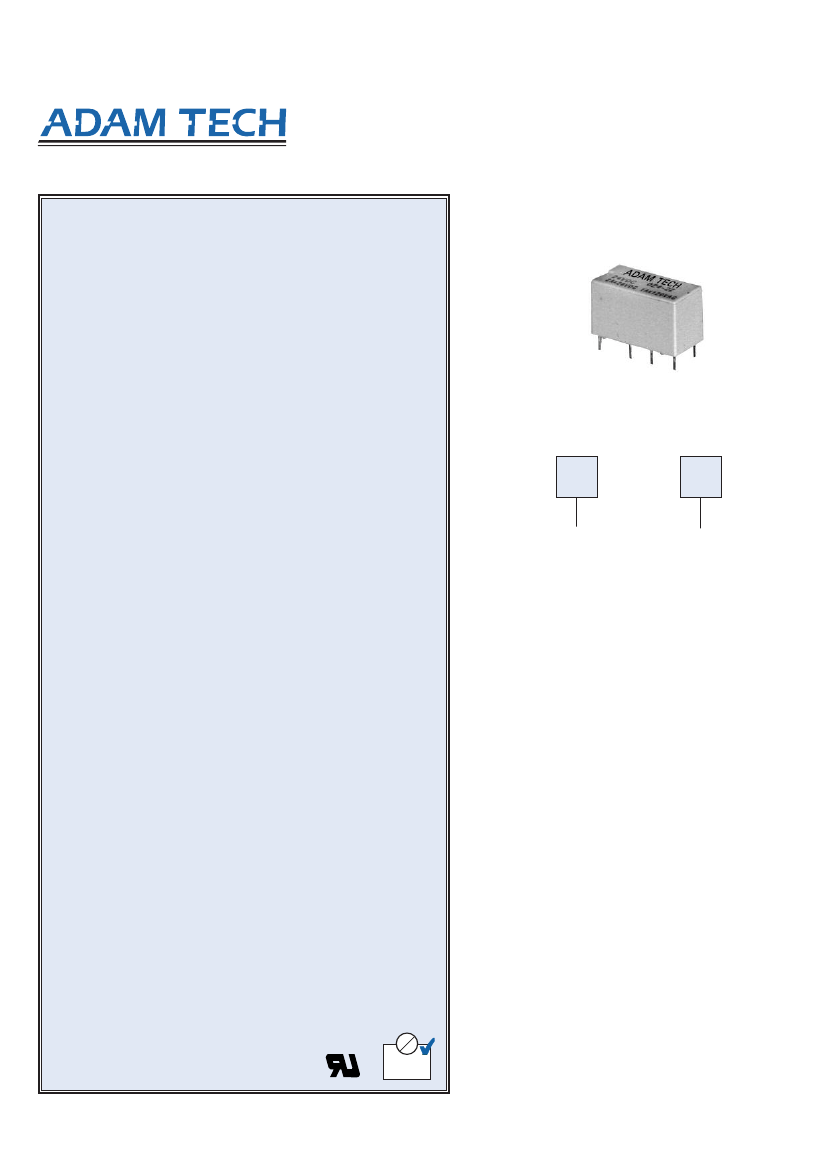

RELAY
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech RT2 relays are small signal level relays whose footprint
matches a standard 16 pin DIP socket and are available with coil
voltages from 5~48VDC. These 2 form C relays are designed for all
signal applications up to 2 amps, such as security equipment, test
equipment and medical equipment
FEATURES:
High sensitivity: 200 mW nominal operating power.
2 Amp switching capability
Power consumption of 200mW
High mounting density on P.C.board by small size and light weight.
Sealed construction.
SPECIFICATIONS:
ELECTRICAL:
Contact arrangement: 2 Form C
Contact material: Gold clad, Silver Alloy
Contact Rating (Resistive load): 1A @ 120V AC
2A @ 30V DC
Max. Switching Voltage: 120V AC / 30V DC
Max. Switching Power: 100VA / 60W
Contact resistance: 100 mΩ max. Initial
Insulation resistance: 100 MΩ min. @ 500V DC
Dielectric withstanding voltage:
Between Coil & Contact: 500V AC 50/60Hz for 1 min.
Between Contacts: 1000V AC 50/60Hz for 1 min.
Operating time: 6 ms max.
Release time: 4 ms max.
Electrical Life: 100,000 Operations (at rated load)
MECHANICAL:
Vibration resistance (Endurance): 1.5mm Double Amplitude 10-55Hz
Shock resistance: 10G min.
Mechanical Life: 10,000,000 Operations (no load)
TEMPERATURE RATING:
Ambient temperature: -40°C to +85°C
PACKAGING:
Anti-ESD plastic tubes
Tape & Reel
SAFETY AGENCY APPROVALS:
cUL Recognized File No. E305638

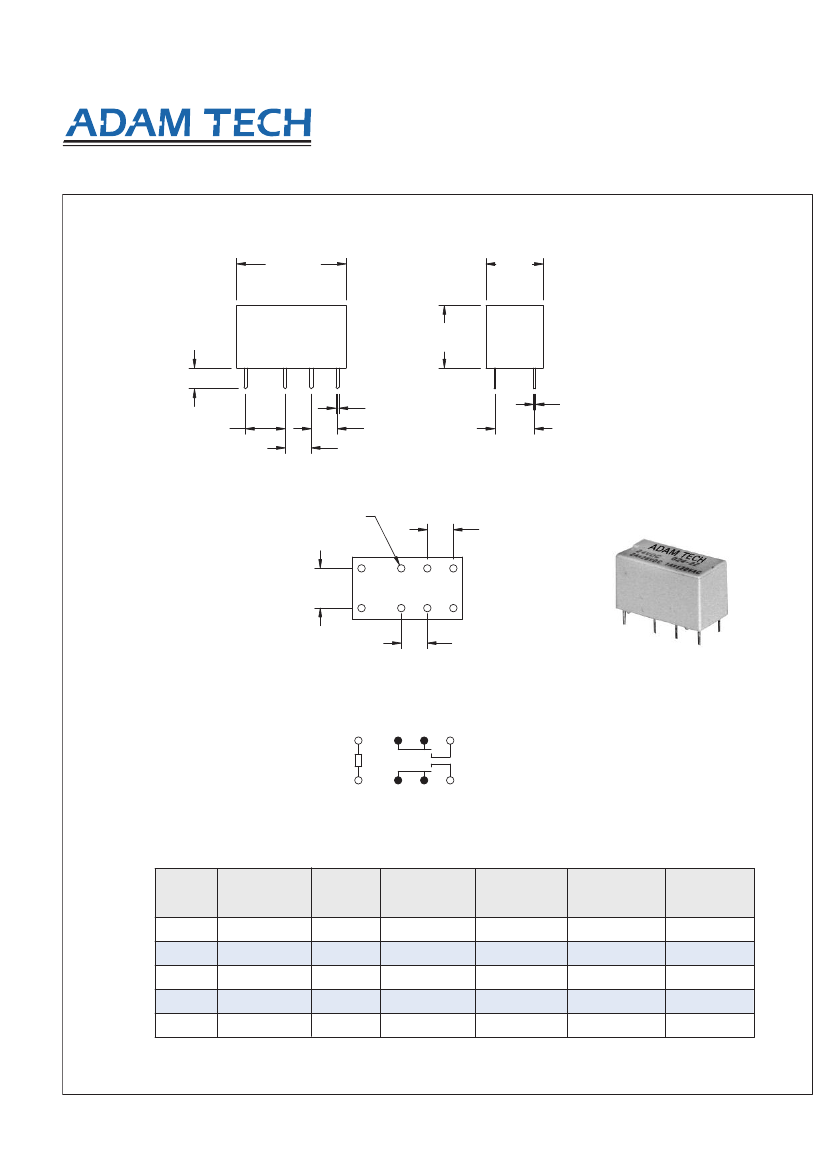

SIGNAL RELAY THRU-HOLE-RT2
R SERIES
ORDERING INFORMATION
SIGNAL RELAY
RT2
12
SERIES INDICATOR
RT2
= Signal Relay
COIL VOLTAGE
5
= 5V DC
6
= 6V DC
12
= 12V DC
24
= 24V DC
48
= 48V DC
Pb
UL
®
®
c
®
US
V
RoHS
D E
COMPLIANT
2002
/
95 / EC
RoHS
COMPLIANT
52
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
