USB-A-Q-RA: DescriptionTELECOM AND DATACOM CONNECTOR; Categorysemiconductor Other integrated circuit (IC); File Size146KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Compare View All

USB-A-Q-RA Overview

TELECOM AND DATACOM CONNECTOR

Preview

Download Datasheet

View All

.

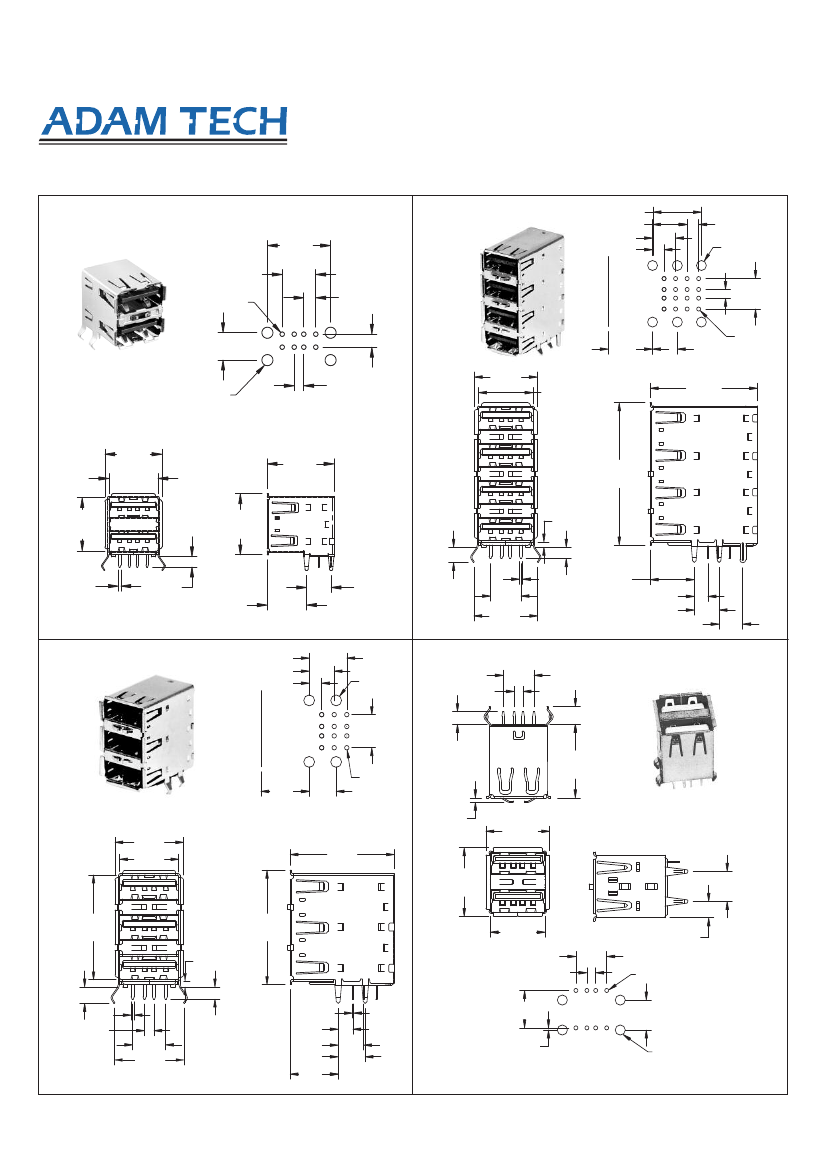

.275 [7.0]

.118 X .035

[3.0 X 0.9]

.08

[2.0]

ø.090 [2.3]

Adam Technologies, Inc.

USB-A-D-RA

.512

[13.0]

.275

[7.0]

ø.037

[0.95]

.098 [2.5]

.136

[3.45]

USB CONNECTOR

TYPE A STACKED PORTS

USB SERIES

USB-A-Q-RA

.440 [11.18]

.313 [7.95]

.210 [5.33]

.106 [2.71]

PCB EDGE

.103 [2.62]

ø.090

[2.30]

.079 [2.0]

.275

[7.0]

.224 [5.7]

.104 [2.65]

.079

[2.0]

.404

[10.28]

.586

[14.9]

.223

[5.68]

ø.037

[0.95]

ø.090

[2.3]

.492

[12.5]

.982

[24.90]

Recommended PCB Layout

(Bottom View)

.594

[15.1]

.492

[12.5]

.670

[17.0]

1.300

[33.02]

.543

[13.8]

.634

[16.1]

.137

[3.5]

.035

[0.9]

.102 [2.6]

.024

[0.6]

.110

[2.8]

.41

[10.3]

.224

[5.7]

.275

[7.0]

.531

[13.5]

.023

[0.6]

.405

[10.28]

.106 [2.71]

.223 [5.68]

.216 [5.50]

USB-A-T-RA

2.65

7.95

5.3

ø.090

[2.30]

.079

[2.00]

.112 [2.84]

.275

[7.00]

USB-A-D-VT

PCBEDGE

.275

[7.00]

.157

[4.00]

.405

[10.3]

.313

[5.7]

ø.037

[0.95]

.657

[16.70]

Recommended PCB Layout

(Bottom View)

.586

[14.9]

.492

[12.5]

.874

[22.2]

.039

[1.00]

.570

[14.50]

.615

[15.62]

.267

[6.80]

.874

[22.2]

.035

[0.9]

.102 [2.6]

.962

[24.45]

.492

[12.50]

.275

[7.00]

.079 [2.00]

.146

[3.71]

ø.036 [0.92]

.137[3.5]

.023

[0.6]

.078

[2.0]

.275

[7.0]

.531

[13.5]

.010

[0.25]

.208

[5.3]

.405

[10.3]

.334 [8.50]

.104

[2.65]

.224

[5.7]

.018 [0.48]

.267

[6.80]

ø.090 [2.30]

Recommended PCB Layout

130

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM
