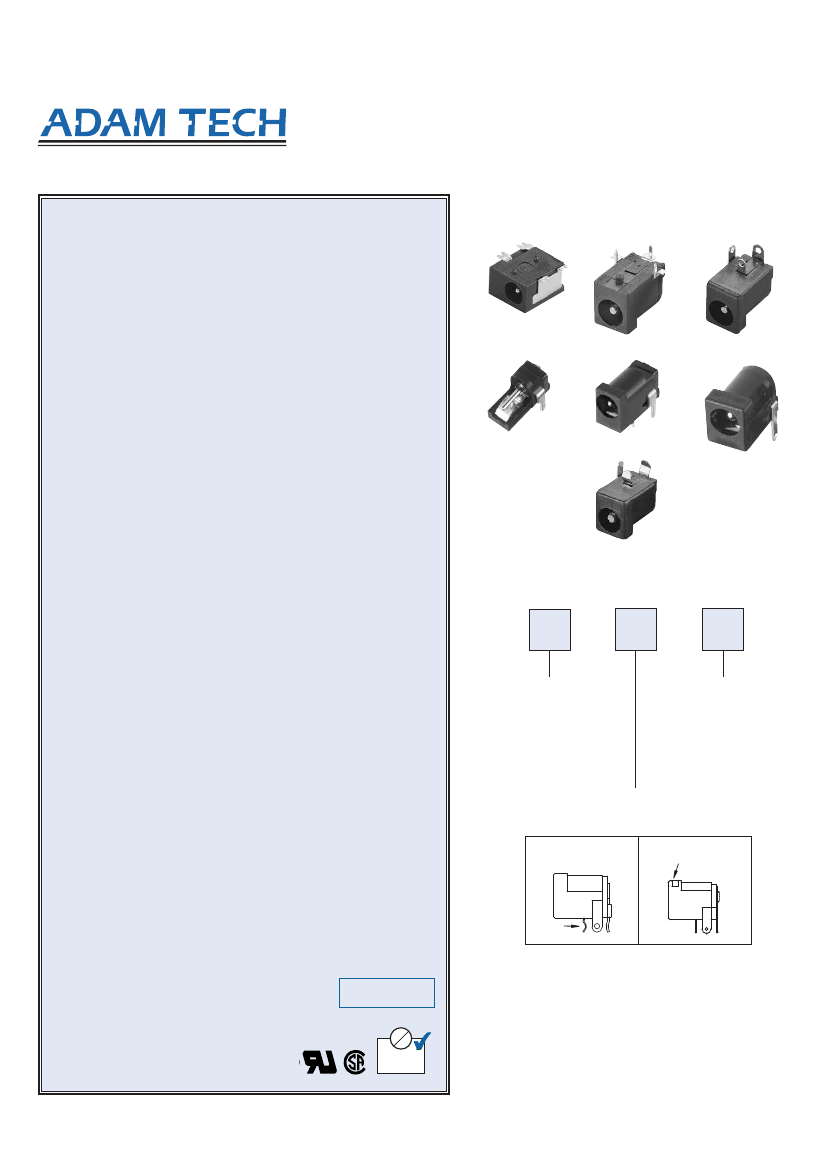

DC POWER JACKS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech ADC Series DC Power Jacks are a complete line of
miniature and sub-miniature power jacks primarily used for the
transmission of wall current transformed to DC power, for detached
and hand held instruments. Adam Tech power jacks are
manufactured with a variety of center pin sizes for all standard
applications including 1.00mm, 1.30mm, 2.00mm and 2.50mm. Our
contact is designed using a wide spring grade plated copper alloy for
exceptional plug retention and low contact resistance.
FEATURES:
Low Profile designs
Superior contact system
Exceptional plug retention
Choice of Center pin sizes
Hi Temp Versions
Hi Current Versions
MATING PLUGS:
All industry standard 1.00mm, 1.30mm, 2.00mm, 2.35mm
and 2.50mm Plugs.
SPECIFICATIONS:
Material:
Standard insulator: PBT Glass reinforced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black
Center Pin: Brass, Nickel plated
Contacts: Copper alloy
Contact Plating:
Silver over nickel underplate
Electrical:
Operating voltage: 12V DC max.
Current rating: 1 Amp max.
Contact resistance: 30 mΩ max. initial
Insulation resistance: 50 MΩ min.
Dielectric withstanding voltage: 250V AC for 1 minute
Mechanical:
Insertion force: 3 kg max.
Withdrawal force: 0.3 kg min
Mating durability: 5000 cycles min.
Temperature Rating:
Operating temperature: -25°C to +85°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic bags or Tape and Reel
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
UL
®
PC BOARD AND PANEL MOUNT
ADC SERIES
ORDERING INFORMATION
ADC
002
1
SERIES INDICATOR
ADC
= DC Power Jack
CENTER PIN
DIAMETER
1
= 2.00mm
2
= 2.50mm
3
= 1.00mm
4
= 1.30mm
5
= 2.35mm
8
= 0.7mm
BODY STYLE
001 thru 042
RT OPTION
NOTCH OPTION
HI-TEMP
INSULATOR
AVA I L A B L E
Pb
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
OPTIONS:
Add designator(s) to end of part number
RT
= PC Board Retention Feature
(Type 007 & 009 only)
HT
= Hi-Temp insulator for Hi-Temp soldering
processes up to 260°C
N
= Notch option, (ADC-002 only)
ADCH
= DC Power Jack Hi-Current 5 Amp Version
200
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
