9457450350: DescriptionCircular Connector, 3 Contact(s), PUR/Polyvinylchloride, Female, Socket; CategoryThe connector The connector; File Size46KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

9457450350 Overview

Circular Connector, 3 Contact(s), PUR/Polyvinylchloride, Female, Socket

9457450350 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Back shell type	SOLID
Body/casing type	SOCKET
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	9457450350
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	PUR/PVC
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

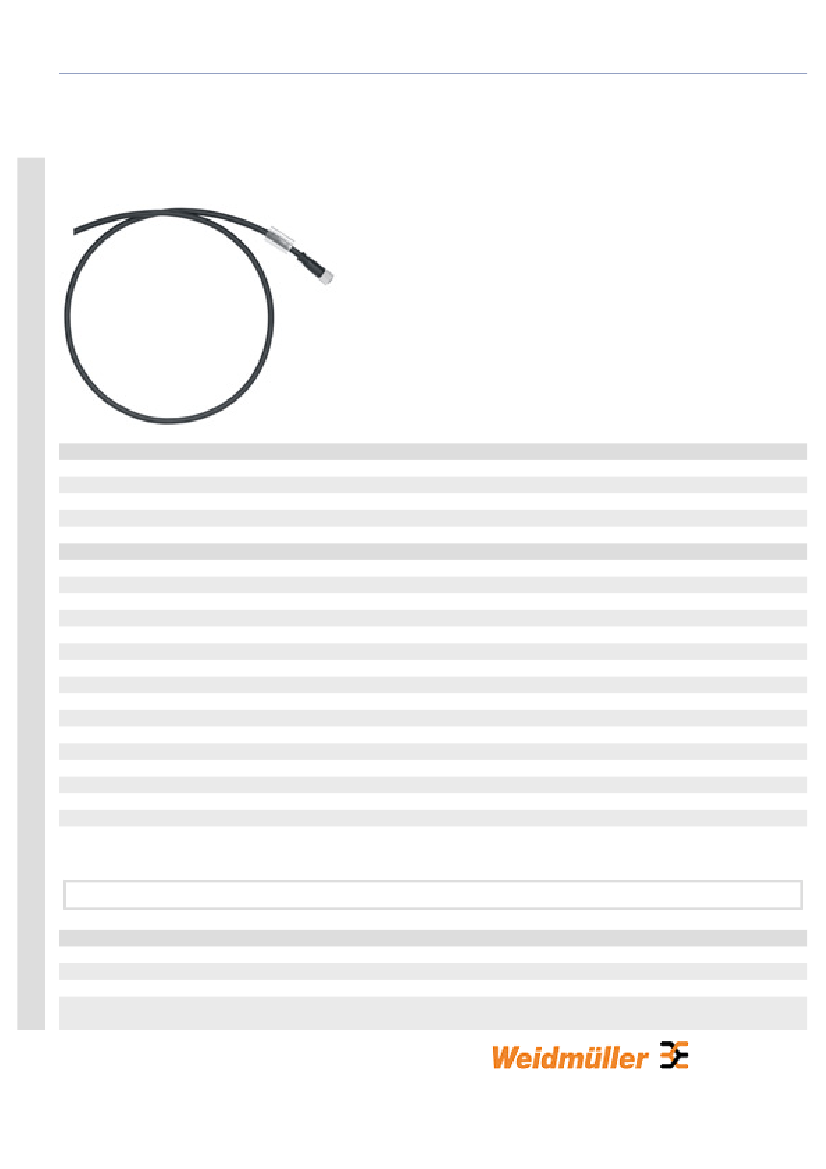

3 poles U | SAIL-M8BG-3

General ordering data

Order No.

Part designation

EAN

Qty.

Technical data

Ambient temperature, max.

Ambient temperature, min.

Cable diameter, max.

Cable diameter, min

Connection cross-section

Contact material

Contact surface

Contact tube diameter

Core cross-section

Material

Protection class

Rated current

Rated voltage

Sheathing colour

Suitable for cable carriers

No. of poles

Version

9457450350

SAIL-M8BG-3-3.5U

4032248670086

1 pc(s).

80 °C

-30 °C

5 mm

4.6 mm

0,25

Ni/Au

gold-plated

M8

0.25 mm²

PUR/PVC

IP 67

4A

60 V DC

black

Yes

3

Female socket, straight
