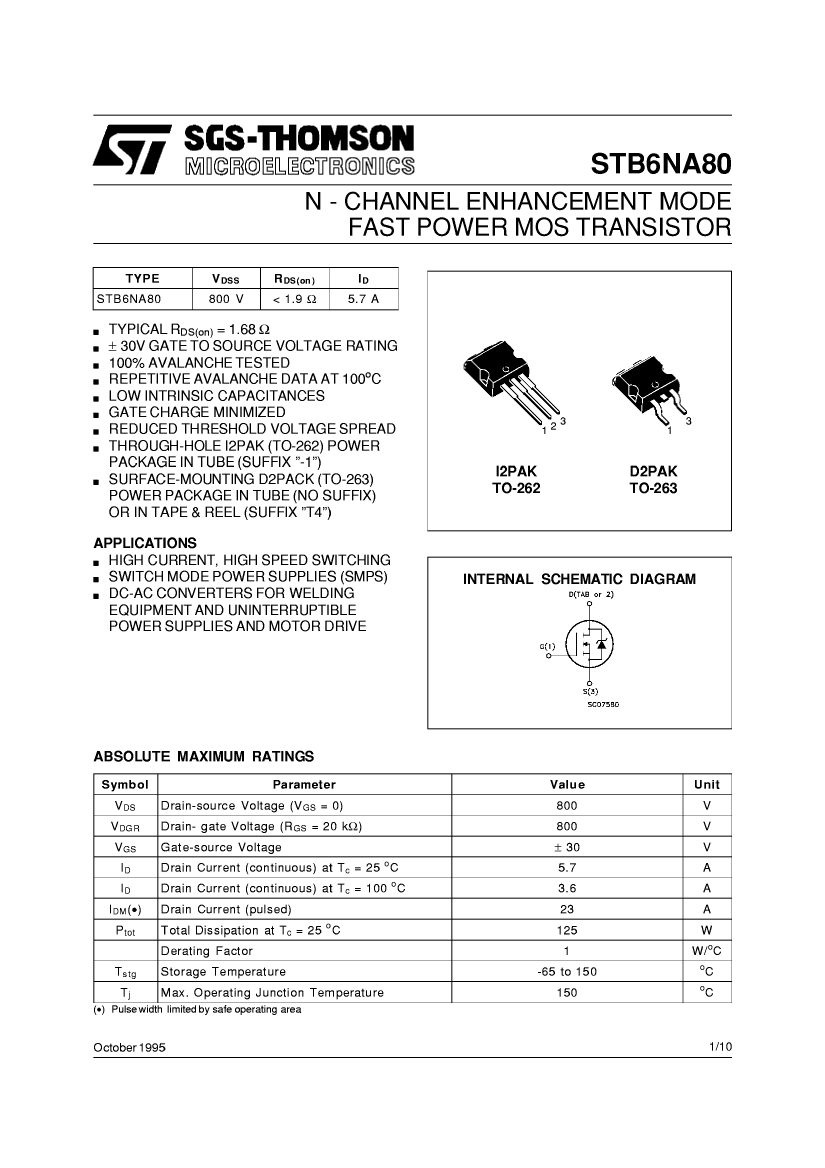

5.7A, 800V, 1.9ohm, N-CHANNEL, Si, POWER, MOSFET, TO-263AB, TO-263, D2PAK-3

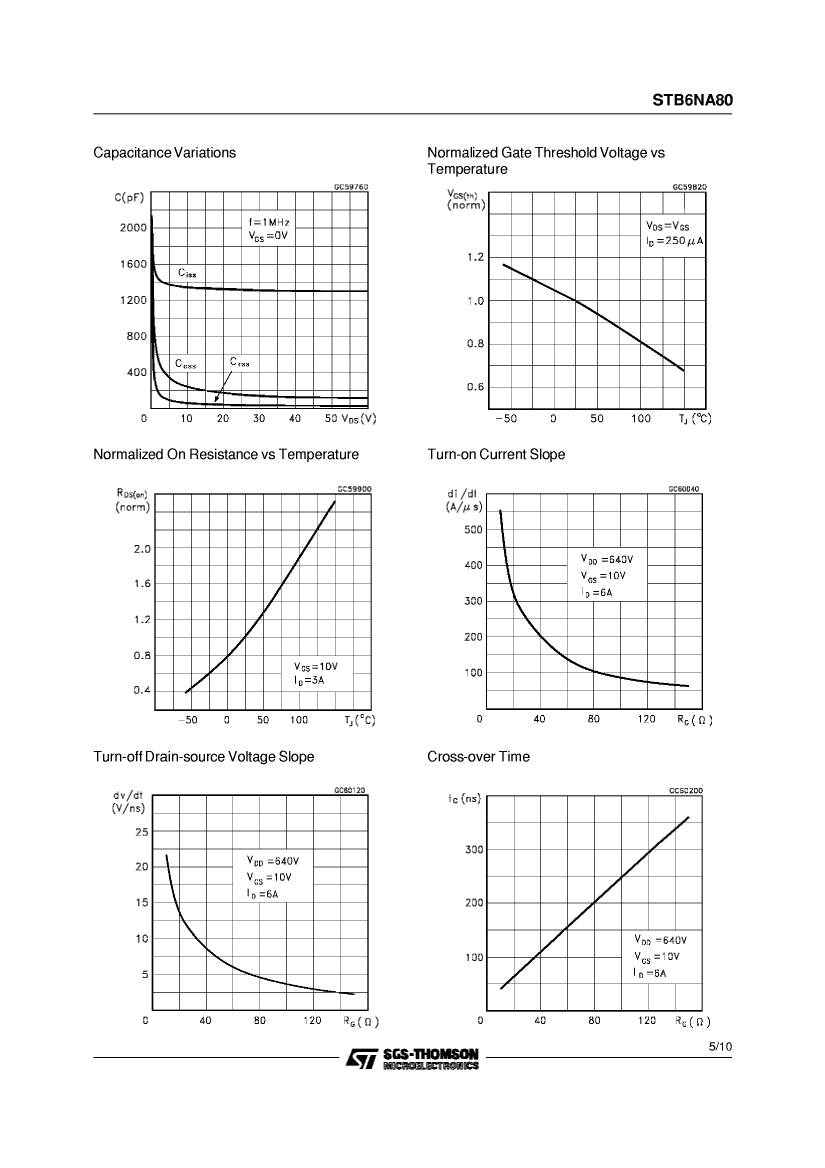

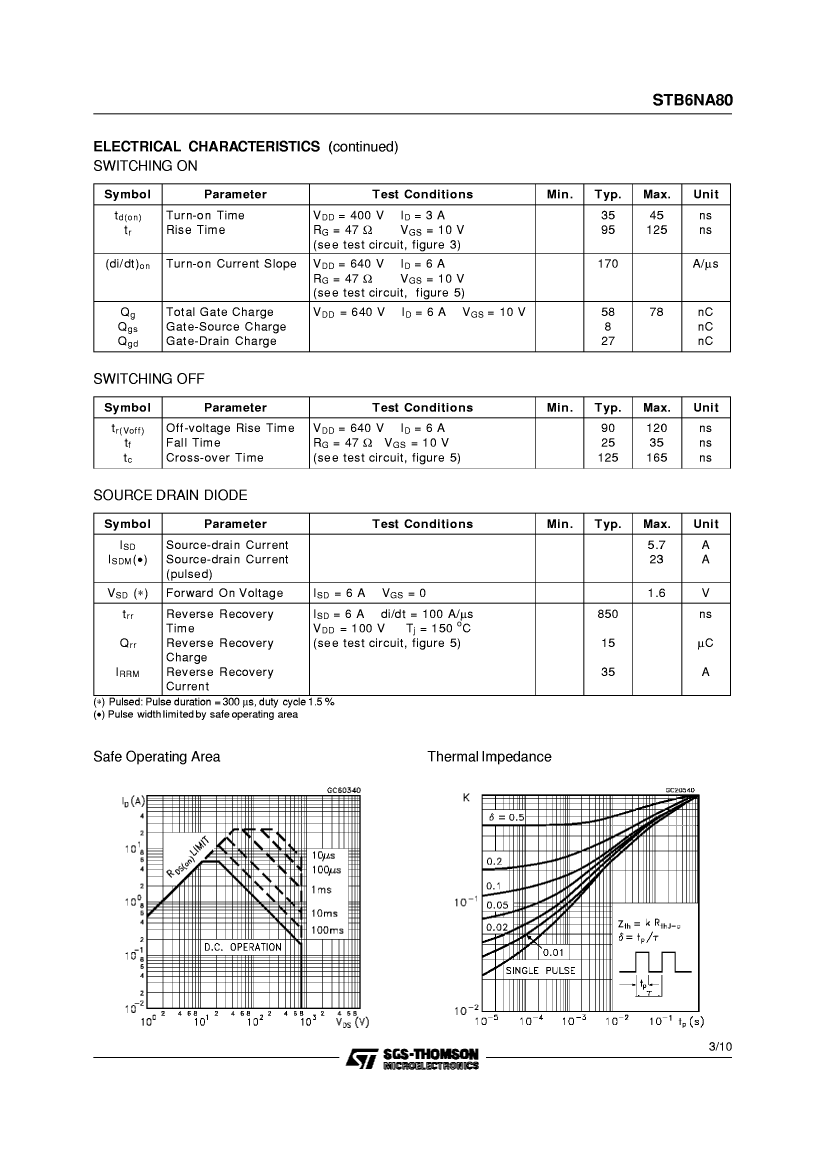

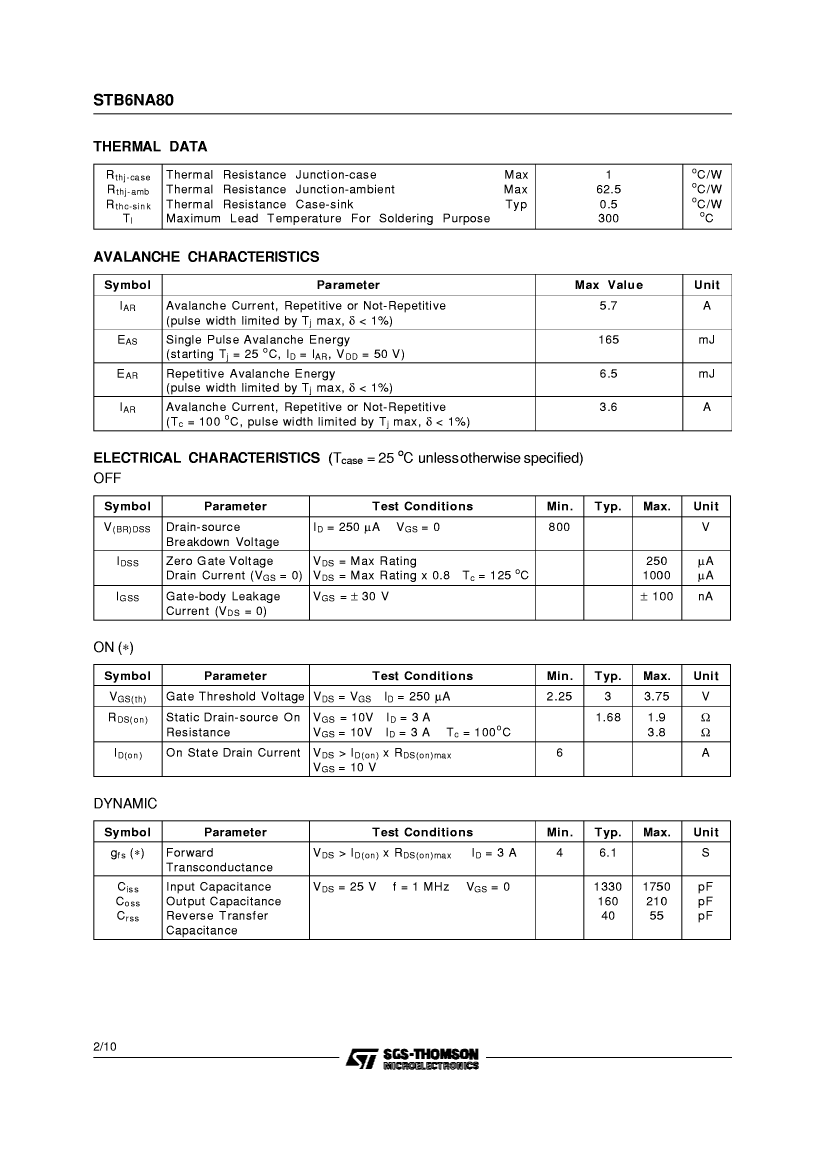

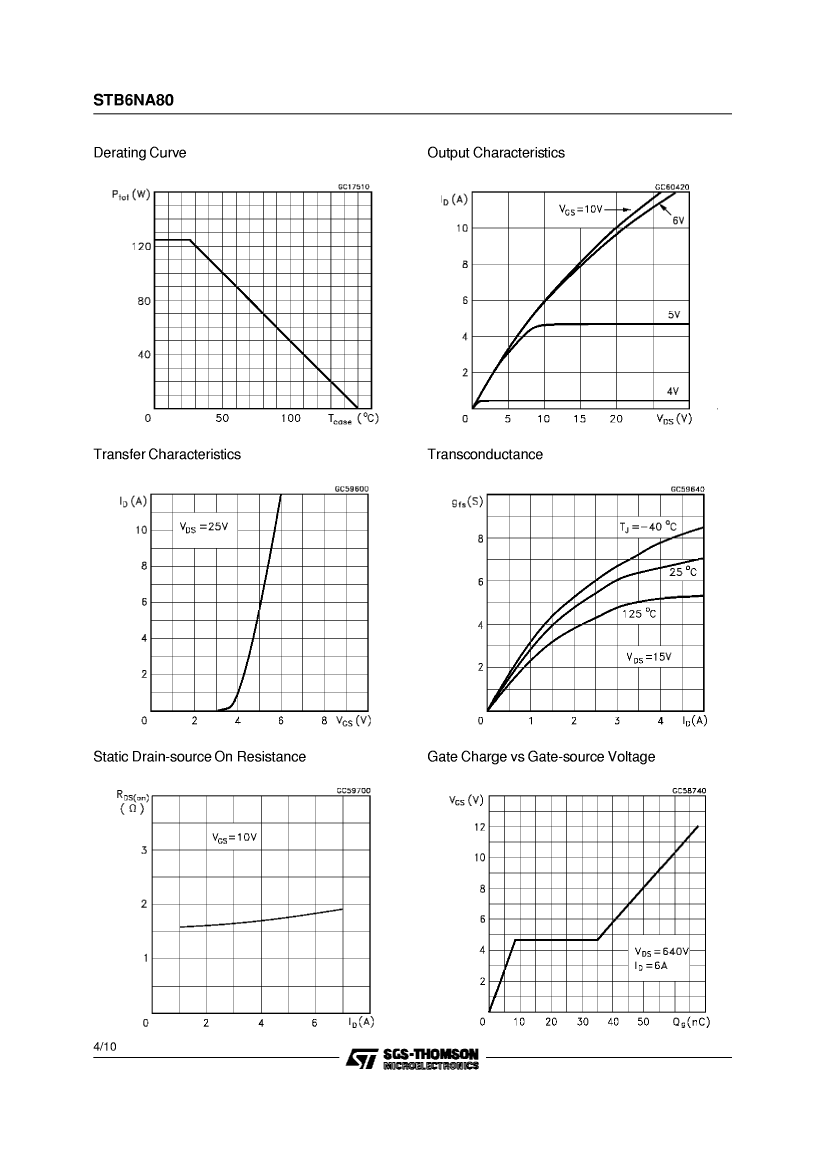

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | D2PAK |
| package instruction | SMALL OUTLINE, R-PSSO-G2 |
| Contacts | 4 |
| Reach Compliance Code | not_compliant |
| Avalanche Energy Efficiency Rating (Eas) | 165 mJ |
| Shell connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 800 V |
| Maximum drain current (Abs) (ID) | 5.7 A |
| Maximum drain current (ID) | 5.7 A |
| Maximum drain-source on-resistance | 1.9 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 code | TO-263AB |
| JESD-30 code | R-PSSO-G2 |
| JESD-609 code | e3 |
| Number of components | 1 |
| Number of terminals | 2 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | N-CHANNEL |
| Maximum power dissipation(Abs) | 125 W |
| Maximum pulsed drain current (IDM) | 23 A |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal surface | Matte Tin (Sn) |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
