SH203-B10
General Information
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
SH203-B10
2CDS213001R0105
4016779631303

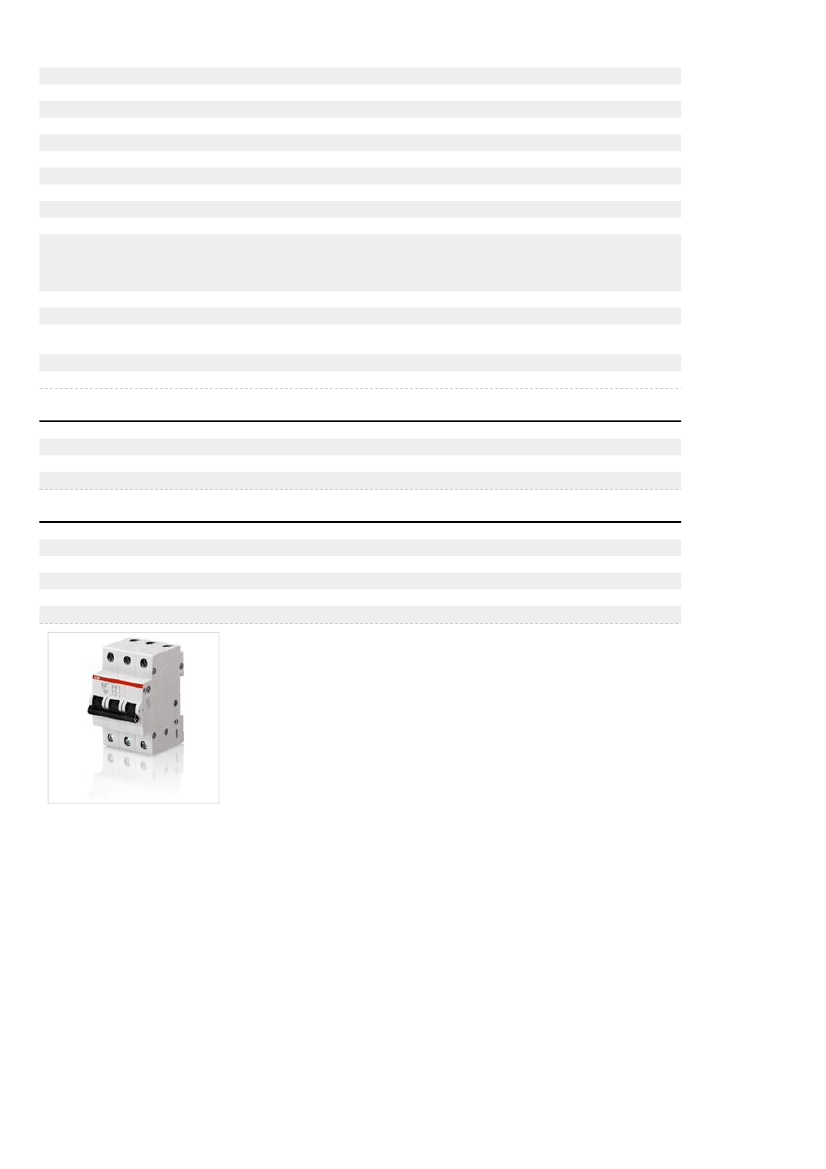

Miniature Circuit Breaker - SH200 - 3P - B - 10 A
Compact Home SH200 miniature circuit breakers are current limiting. They have two different
tripping mechanisms, the delayed thermal tripping mechanism for overload protection and
the electromechanic tripping mechanism for short circuit protection. They are available in
different characteristics (B,C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking
capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the
product range SH200 comply with IEC/EN 60898-1, allowing the use for residential
applications.
Categories
Products
»
Low Voltage Products and Systems
»
Modular DIN Rail Products
»
Miniature Circuit Breakers MCBs
Ordering
Minimum Order Quantity:
Customs Tariff Number:
EAN:
1 piece
85362010
4016779631303
Dimensions
Product Net Depth:
Product Net Height:
Product Net Weight:
Product Net Width:
69 mm
85 mm
0.375 kg
52.5 mm
Container Information
Package Level 1 Width:
Package Level 1 Length:
Package Level 1 Height:
Package Level 1 Gross Weight:
Package Level 2 EAN:
Package Level 1 Units:
92 mm
58 mm
80 mm
0.4 kg
4016779990851
1 piece
Environmental
Ambient Air Temperature:
Resistance to Shock acc. to IEC
60068-2-27:
Resistance to Vibrations acc. to IEC
5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
60068-2-6:
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Operation -25 ... +55 °C
Storage -40 ... +70 °C
25g / 2 shocks / 13 ms
Technical
Number of Poles:
Tripping Characteristic:
Rated Current (I
n
):
Rated Operational Voltage:
Power Loss:
Rated Insulation Voltage (U
i
):
Operational Voltage:
Rated Frequency (f):
Rated Short-Circuit Capacity (I
cn
):
Energy Limiting Class:
Overvoltage Category:
Pollution Degree:
Rated Impulse Withstand Voltage
3
B
10 A
acc. to IEC 60898-1 400 V AC
6.3 W
at Rated Operating Conditions per Pole 2.1 W
acc. to IEC/EN 60664-1 440 V
Maximum (Incl. Tolerance) 440 V AC
Minimum 12 V AC
50 Hz
60 Hz
(400 V AC) 6 kA
3
III
2
4 kV
(U
imp
):
Dielectric Test Voltage:
Housing Material:
Actuator Type:
Contact Position Indication:
Degree of Protection:
Remarks:
Electrical Endurance:
Mechanical Endurance:
Terminal Type:
Screw Terminal Type:
Connecting Capacity:
Tightening Torque:
Recommended Screw Driver:
Mounting on DIN Rail:
Mounting Position:
Standards:
(6.2 kV @ sea level)
(5.0 kV @ 2000 m)
50 / 60 Hz, 1 min: 2 kV
Insulation Group II, RAL 7035
Insulation group II, black, sealable
ON / OFF
IP20
IP40 in enclosure with cover
20000 AC cycle
20000 cycle
Screw Terminals
Cage Terminal
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
2 N·m
Pozidriv 2
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Any
IEC/EN 60898-1
Certificates and Declarations (Document Number)
Instructions and Manuals:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
RoHS Information:
2CSC400003B0202
2CSC400003B0202
2CDK400607D2703
2CDK400003K0201
Classifications
ETIM 4:
ETIM 5:
ETIM 6:
eClass:
UNSPSC:
Object Classification Code:
EC000042 - Miniature circuit breaker (MCB)
EC000042 - Miniature circuit breaker (MCB)
EC000042 - Miniature circuit breaker (MCB)
7.0 27141901
39121614
F
