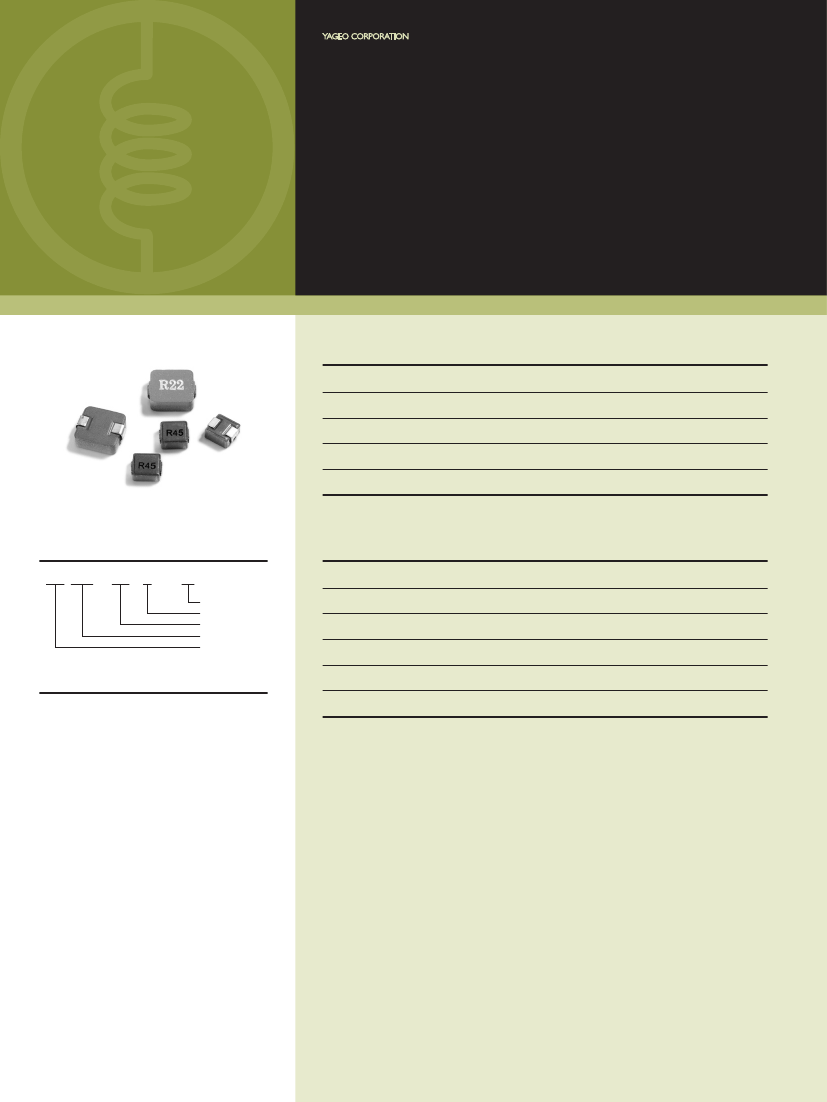

YAGEO CORPORATION
DIP / SMD INDUCTORS
SMD Power Inductors
SLH Series
FEATURES
Halogen Free products
Shielded construction
Lowest DCR/μH, in this package size
Handles high transient current spikes without saturation
No air-gap inside but filled with magnetic powder
PRODUCT IDENTIFICATION
SLH 0630
-
1R0
M
-
APPLICATIONS
High current POL converters
HF
Halogen Free
Tolerance
Inductance
Dimensions
Product Symbol
Low profile, high current power supply
Battery powered devices
DC/DC converters in distributed power systems
DC/DC converter for Field Programmable Gate Array (FPGA)
Harsh environments including moisture, chemicals and salt spray
■
Tolerance: J = ±5%, K = ±10%, L = ±15%, M = ±20%,
P = ±25%, N = ±30%, Y = min
23
SHAPES AND DIMENSIONS
SLH 0630/0650
A
Unit: mm
SLH 1040/1235
A
SLH 1250/1265
A
XXX
XXX
XXX
B
D
B
B
Land Pattern
a
Land Pattern
a
b
c
Land Pattern
a
b
C
E
C
c
D
c
b
C
d
D
d
TYPE
SLH0630
SLH0650
SLH1040
SLH1235
SLH1250
SLH1265
A
6.86 ± 0.381
6.86 ± 0.381
11.5
+0
B
6.47 ± 0.254
6.47 ± 0.254
10.3
12.9
+0
+0
C
3.0
+0
5.0
+0
4.0
3.5
+0
+0
D
3.18
3.18 ± 0.30
2.2 ± 0.30
2.3 ± 0.30
2.3 ± 0.30
2.3 ± 0.30
E
1.27 ± 0.30
1.27 ± 0.30
a
7.37
7.37
13
13.8
13.76
13.76
b
3.71
3.71
6
8.1
7.87
7.87
c
3.4
3.4
4.0
+0
3.3
5.0
5.0
d
3.0 ± 0.3
3.0 ± 0.3
4.7 ± 0.3
4.7 ± 0.3
13.2 ± 0.38
13.2 ± 0.50
13.2 ± 0.50
12.9
+0
12.9
+0
5.0
+0
6.5
+0
ELECTRICAL CHARACTERISTICS
SLH0630
PART NO.
SLH0630-R10M
SLH0630-R15M
SLH0630-R20M
SLH0630-R22M
SLH0630-R33M
SLH0630-R47M
SLH0630-R68M
SLH0630-R82M
SLH0630-1R0M
SLH0630-1R5M
SLH0630-2R2M
SLH0630-3R3M
SLH0630-4R7M
SLH0630-6R8M
SLH0630-8R2M
SLH0630-100M
INDUCTANCE
(µH) ±20%
0.10
0.15
0.20
0.22
0.33
0.47
0.68
0.82
1.00
1.50
2.20
3.30
4.70
6.80
8.20
10.00
DC RESISTANCE (m
Ω
)
Typical
Max.
1.50
1.90
2.40
2.50
3.50
4.00
5.00
6.70
9.00
14.00
18.00
28.00
37.00
54.00
64.00
102.00
1.70
2.50
3.00
2.80
3.90
4.20
5.50
8.50
10.00
15.00
20.00
30.00
40.00
60.00
68.00
105.00
Isat
(A) Max.
60.00
52.00
41.00
40.00
30.00
26.00
25.00
24.00
22.00
18.00
14.00
13.50
10.00
8.00
7.50
7.00
Irms
(A) Max.
32.50
26.00
24.00
23.00
20.00
17.50
15.50
13.00
11.00
9.00
8.00
6.00
5.50
4.50
4.00
3.00
Note:
Inductance test frequency at 100KHz
Isat: DC current at which the inductance drops 30% from its value without current
Irms: The actual current when temperature of coil becomes
ΔT
= 40 °C
24
ELECTRICAL CHARACTERISTIC
SLH0650
PART NO.
INDUCTANCE
(µH) ±20%
0.56
0.68
0.82
1.00
1.50
2.20
3.30
4.80
5.60
6.80
8.20
10.00
DC RESISTANCE (m
Ω
)
Typical
Max.
3.40
4.20
4.60
5.60
8.60
13.00
19.90
28.90
32.70
42.50
43.50
67.90
3.60
4.50
4.90
6.50
9.00
13.60
20.90
30.30
34.40
44.60
45.60
71.30
Isat
(A) Max.
12.00
11.50
13.00
15.00
12.00
10.00
8.00
7.00
7.00
5.50
5.50
4.50
Irms
(A) Max.
20.00
18.00
16.50
13.00
12.00
10.00
8.00
6.50
6.00
5.50
5.50
4.50
SLH0650-R56M
SLH0650-R68M
SLH0650-R82M
SLH0650-1R0M
SLH0650-1R5M
SLH0650-2R2M
SLH0650-3R3M
SLH0650-4R7M
SLH0650-5R6M
SLH0650-6R8M
SLH0650-8R2M
SLH0650-100M
ELECTRICAL CHARACTERISTICS
SLH1040
PART NO.
INDUCTANCE
(µH) ±20%
0.19
0.36
0.56
1.00
1.50
2.20
3.30
4.70
5.60
6.80
10.00
DC RESISTANCE (m
Ω
)
Typical
Max.
0.88
1.30
1.70
3.70
5.30
8.20
10.80
15.00
17.60
21.20
33.20
0.95
1.40
1.80
4.10
5.80
9.00
11.80
16.50
19.30
23.50
36.50
Isat
(A) Max.
90.00
60.00
49.00
36.00
27.50
25.50
18.60
17.00
16.00
13.50
12.00
Irms
(A) Max.
40.00
31.50
27.50
17.50
15.00
12.00
10.00
9.50
8.50
8.00
6.80
SLH1040-R19M
SLH1040-R36M
SLH1040-R56M
SLH1040-1R0M
SLH1040-1R5M
SLH1040-2R2M
SLH1040-3R3M
SLH1040-4R7M
SLH1040-5R6M
SLH1040-6R8M
SLH1040-100M
Note:
Inductance test frequency at 100KHz
Isat: DC current at which the inductance drops 30% from its value without current
Irms: The actual current when temperature of coil becomes
ΔT
= 40 °C
25
ELECTRICAL CHARACTERISTIC
SLH1250
PART NO.
INDUCTANCE
(µH) ±20%
0.10
0.22
0.33
0.47
0.56
0.68
0.82
1.00
1.50
2.20
3.30
4.70
5.60
6.80
7.80
8.20
10.00
DC RESISTANCE (m
Ω
)
Typical
Max.
0.53
0.64
0.85
1.10
1.30
1.50
2.00
2.14
3.40
4.60
7.70
12.80
14.00
15.40
17.20
18.90
21.40
0.60
0.80
1.10
1.30
1.50
1.70
2.30
2.65
4.10
5.50
9.20
15.00
16.50
18.50
20.50
22.50
25.50
Isat
(A) Max.
118.00
110.00
80.00
65.00
55.00
54.00
53.00
50.00
48.00
32.00
32.00
27.00
22.00
21.00
18.00
18.00
16.00
Irms
(A) Max.
55.00
51.00
42.00
38.00
36.00
34.00
31.00
29.00
23.00
20.00
15.00
12.00
11.50
11.00
10.00
9.50
9.00
SLH1250-R10M
SLH1250-R22M
SLH1250-R33M
SLH1250-R47M
SLH1250-R56M
SLH1250-R68M
SLH1250-R82M
SLH1250-1R0M
SLH1250-1R5M
SLH1250-2R2M
SLH1250-3R3M
SLH1250-4R7M
SLH1250-5R6M
SLH1250-6R8M
SLH1250-7R8M
SLH1250-8R2M
SLH1250-100M
Note:
Inductance test frequency at 100KHz
Isat: DC current at which the inductance drops 30% from its value without current
Irms: The actual current when temperature of coil becomes
ΔT
= 40 °C
26

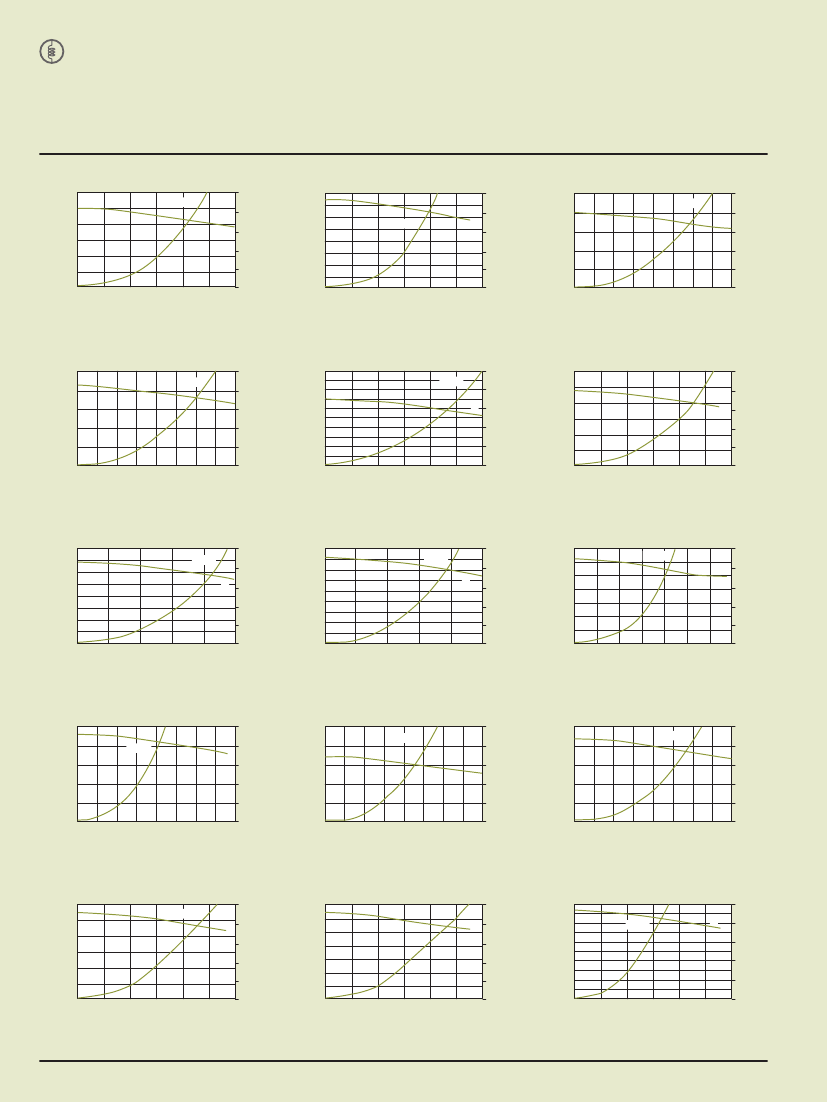

TYPICAL ELECTRICAL CHARACTERISTICS
SLH0630-R10M
0.12
0.10
0.08
0.06
0.04
0.02
0.00
0
10
20
30
40
50
60
INDUCTANCE
(µH)
(µH)
(µH)
(µH)
INDUCTANCE
INDUCTANCE
INDUCTANCE
INDUCTANCE
SLH0630-R15M
ΔT
°C
L
100
TEMPERATURE
SLH0630-R20M
100
TEMPERATURE
60
40
20
0
ΔT
°C
L
60
40
20
0.15
0.10
0.05
0.00
0
5
10
15
20
25
30
35
40
60
40
20
0
(°C)
(°C)
(µH)
(°C)
0
10
20
30
40
50
60
0
DC CURRENT (AMPS)
DC CURRENT (AMPS)
DC CURRENT (AMPS)
SLH0630-R22M
0.25
0.20
0.15
0.10
0.05
0.00
0
5
10
15
20
25
30
35
40
ΔT
°C
L
100
TEMPERATURE
SLH0630-R33M
0.50
0.45
0.40
0.35
0.30
0.25
0.20
(µH)
0.15
0.10
0.05
0.00
INDUCTANCE
SLH0630-R47M
100
ΔT
°C
L
TEMPERATURE
0.60
0.50
0.40
0.30
0.20
0.10
0.00
0
5
10
15
INDUCTANCE
L
60
40
20
0
60
40
20
60
40
20
20
25
30
0
(°C)
(°C)
(µH)
(°C)
0
5
10
15
20
25
30
0
DC CURRENT (AMPS)
DC CURRENT (AMPS)
DC CURRENT (AMPS)
SLH0630-R68M
0.80
0.70
0.60
0.50
0.40
0.30
(µH)
0.20
0.10
0.00
100
ΔT
°C
L
TEMPERATURE
SLH0630-R82M
0.90
0.80
0.70
0.60
0.50
0.40
0.30
(µH)
0.20
0.10
0.00
INDUCTANCE
SLH0630-3R3M
100
ΔT
°C
L
TEMPERATURE
3.50
3.00
INDUCTANCE
ΔT
°C
L
100
TEMPERATURE
(°C)
(°C)
(°C)
TEMPERATURE
TEMPERATURE
80
60
40
20
80
60
40
20
2.50
2.00
1.50
0.50
0.00
0
2
4
6
8
10
12
80
60
40
20
14
0
(°C)
(°C)
(µH)
1.00
0
5
10
15
20
25
0
0
5
10
15
20
25
0
DC CURRENT (AMPS)
DC CURRENT (AMPS)
DC CURRENT (AMPS)
SLH0630-R100M
10.0
8.00
6.00
4.00
2.00
0.00
0
1
2
3
4
5
6
7
8
ΔT
°C
100
TEMPERATURE
SLH1040-5R6M
7.50
6.00
4.50
3.00
1.50
0.00
0
5
10
15
20
L
ΔT
°C
INDUCTANCE
SLH1040-6R8M
100
TEMPERATURE
7.50
6.00
4.50
3.00
1.50
0.00
0
2
4
6
8
INDUCTANCE
80
L
60
40
20
0
80
60
40
20
0
ΔT
°C
L
100
80
60
40
20
(°C)
(µH)
(°C)
(µH)
10
12
14
16
0
DC CURRENT (AMPS)
DC CURRENT (AMPS)
DC CURRENT (AMPS)
SLH1250-R56M
0.60
0.50
0.40
0.30
0.20
0.10
0.00
0
10
20
30
40
50
60
ΔT
°C
L
100
TEMPERATURE
SLH1250-R68M
0.70
0.60
0.50
0.40
0.30
0.10
0.00
0
10
20
30
40
50
60
INDUCTANCE
SLH1250-4R7M
ΔT
°C
L
100
TEMPERATURE
80
60
40
20
0
80
60
40
20
0
(°C)
(µH)
0.20
(°C)
5.00
4.50
4.00
3.50
3.00
2.50
2.00
(µH)
1.50
1.00
0.50
0.00
INDUCTANCE
100
ΔT
°C
L
80
60
40
20
0
5
10
15
20
25
30
0
DC CURRENT (AMPS)
DC CURRENT (AMPS)
DC CURRENT (AMPS)
TEMPERATURE
80
80
ΔT
°C
100
80
TEMPERATURE
80
0.16
0.14
0.12
0.10
0.08
0.06
(µH)
0.04
0.02
0.00
INDUCTANCE
0.25
0.20
ΔT
°C
INDUCTANCE
100
80
L
80
