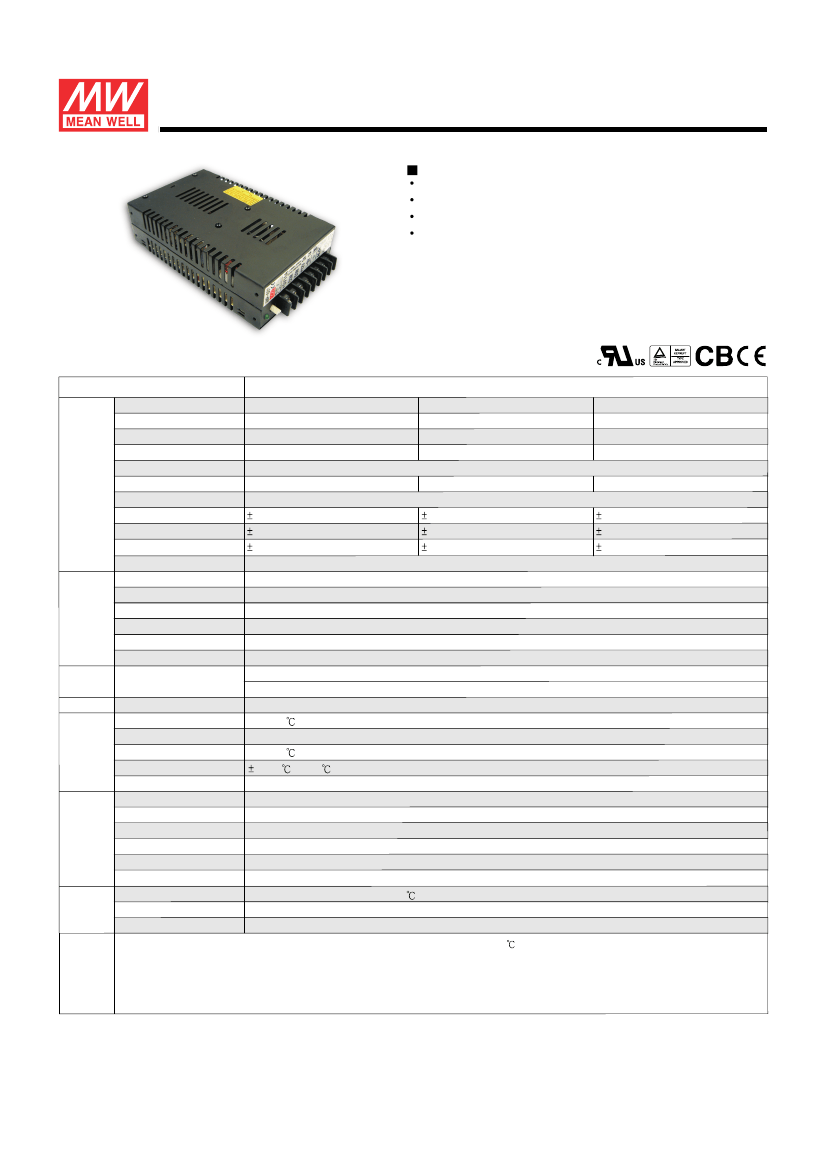

104W Triple Output Switching Power Supply
Features :
Universal AC input/Full range
MWP-606(A)
Protections:Short circuit/Over load
Cooling by free air convection
2 years warranty
SPECIFICATION
MODEL
OUTPUT NUMBER
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE, HOLD TIME
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT
PROTECTION OVER LOAD
FUNCTION
OPERATING DISPLAY
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
MWP-606(A)
CH1
5V
15A
3 ~ 15A
104W
120mVp-p
8.0%
1.0%
6.0%
124 ~ 370VDC
60mVp-p
10%
1.0%
8.0%
CH1: 4.75 ~ 5.5V
2.0%
0.5%
1.0%
200ms, 50ms, 16ms at full load
88 ~ 132VAC/176 ~ 264VAC selected by switch
47 ~ 63Hz
75%
2.6A/115VAC
1.3A/230VAC
COLD START 20A/115VAC
40A/230VAC
<0.5mA / 240VAC
105 ~ 150% rated output power
Protection type : Fold back current limiting, recovers automatically after fault condition is removed
Double color LED correct Range: Green(5~5.4Vref.); Wrong Range: Red
-10 ~ +60
20 ~ 90% RH non-condensing
-20 ~ +85
0.05%/
, 10 ~ 95% RH
(0 ~ 50
) on +5V output
CH2
12V
2A
0.2 ~ 4A
CH3
-5V
1A
0.1 ~ 1A
RIPPLE & NOISE (max.)
Note.2
50mVp-p
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 Approved
I/P-O/P:1.5KVAC
I/P-FG:1.5KVAC
O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG :100M Ohms/500VDC
SAFETY & ISOLATION RESISTANCE
EMI CONDUCTION & RADIATION
Compliance to EN55022 (CISPR22) Class B
EMC
(Note 4)
Compliance to EN61555-2,-3
HARMONIC CURRENT
Compliance to IEC801-2,3,4, Light industry level, criteria A
EMS IMMUNITY
MTBF
348.3K hrs min. MIL-HDBK-217F (25 )
DIMENSION
OTHERS
180*110*50mm (L*W*H)
203*115*50mm(L*W*H) with terminal & fixed iron
PACKING
NOTE
0.9Kg; 16pcs/15.4Kg/0.95CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
File Name:MWP-606(A)-SPEC 2004-12-01
