MPL-6-15B52 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> MPL-6-15B52

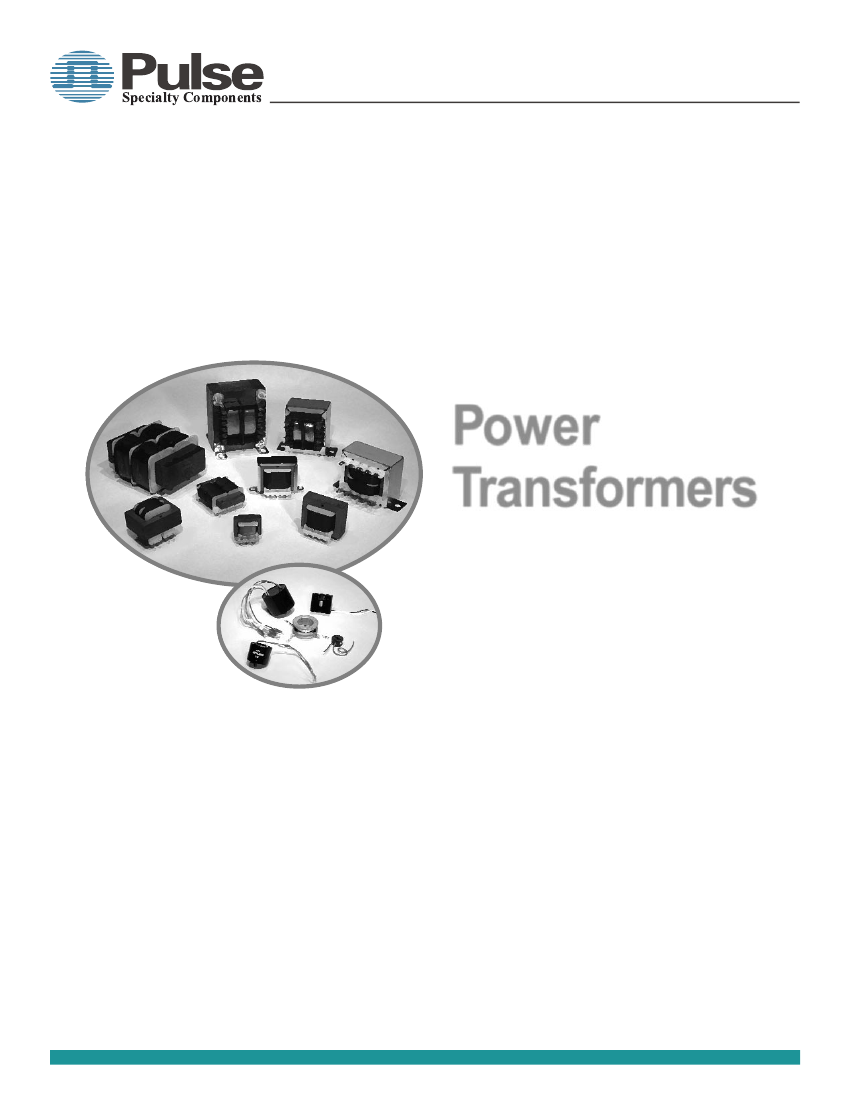

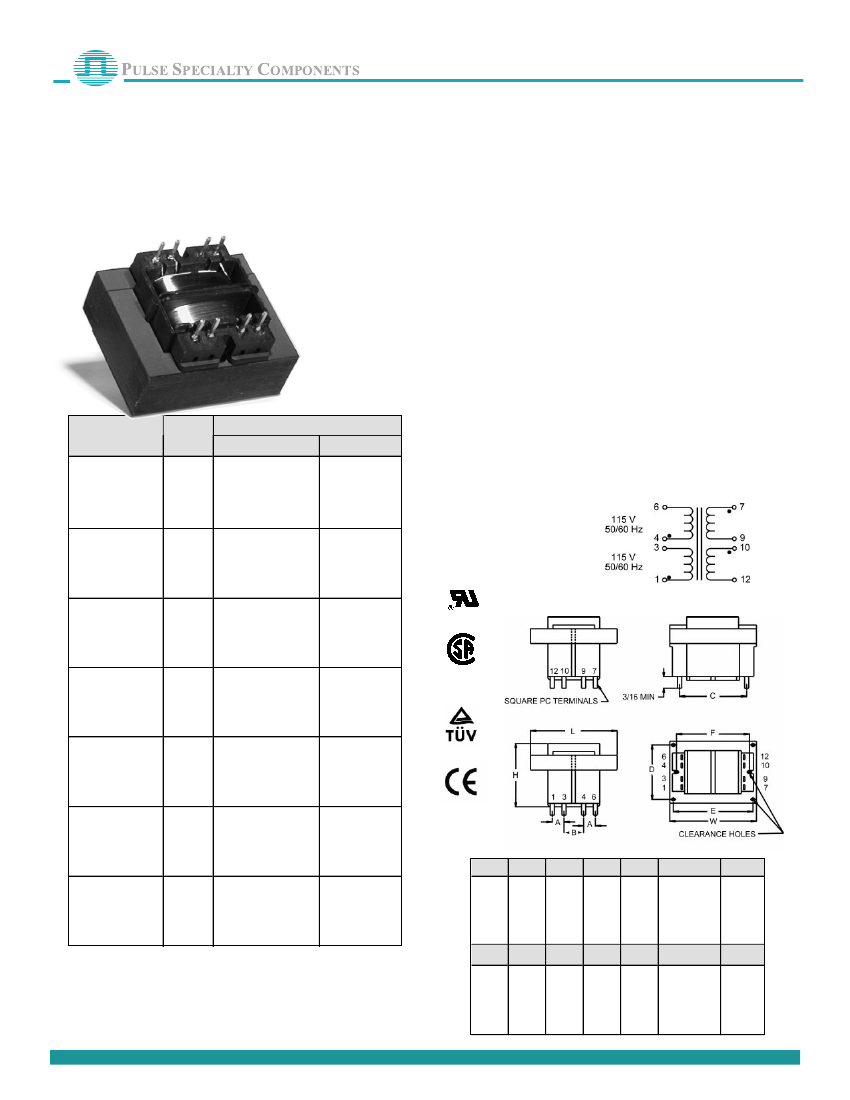

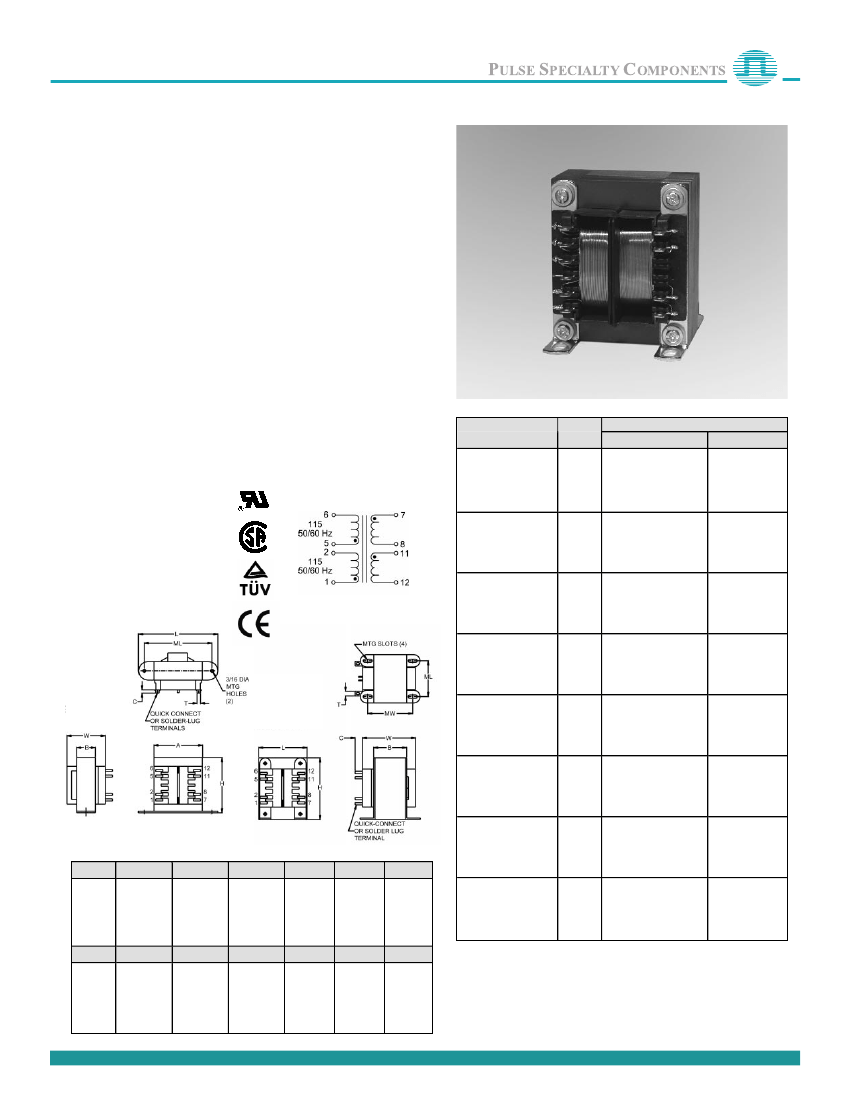

MPL-6-15B52: DescriptionSplit Bobbin Power Transformer, 1.1VA; CategoryPower management transformer; File Size1MB，16 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

MPL-6-15B52 Overview

Split Bobbin Power Transformer, 1.1VA

MPL-6-15B52 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Certification	UL; CSA
Center click function 1	NO
Center click function 2	NO
high	21.59 mm
Insulation voltage	1500 V
length	47.244 mm
Manufacturer's serial number	MPL
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	2
Output current 1	0.135 A
Output current 2	0.135 A
Output voltage 1	15 V
Output voltage 2	5 V
physical size	47.244mm X 39.624mm X 21.59mm
main rating	DUAL 115V
surface mount	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
VA rating	1.1 VA
width	39.624 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Specialty Components

Power

Transformers

and Design/Build

Custom Magnetics

Capability

TWO PEARL BUCK COURT

BRISTOL, PA 19007-6812

TEL 215-781-6400

FAX 215-781-6403

www.pulsespecialty.com

MPL-6-15B52 Related Products

	MPL-6-15B52	MPL-6-12B51	MPL-12-15B62	MPL-12-12B61	MPC-Y-15B22	MPC-Y-12B21	MPC-X-15B12	MPC-X-12B11	MPC-V-15B2	MPC-V-12B1
Description	Split Bobbin Power Transformer, 1.1VA	Split Bobbin Power Transformer, 1.1VA	Split Bobbin Power Transformer, 2.4VA	Split Bobbin Power Transformer, 2.4VA	Power Transformer	Power Transformer	Power Transformer	Power Transformer	Power Transformer	Power Transformer
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	unknown	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Center click function 1	NO	NO	NO	NO	YES	YES	YES	YES	YES	YES
Center click function 2	NO	NO	NO	NO	YES	YES	YES	YES	YES	YES
high	21.59 mm	21.59 mm	27.051 mm	27.051 mm	34.925 mm	34.925 mm	41.275 mm	41.275 mm	34.925 mm	34.925 mm
Insulation voltage	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V
length	47.244 mm	47.244 mm	63.5 mm	63.5 mm	41.275 mm	41.275 mm	47.625 mm	47.625 mm	41.275 mm	41.275 mm
Manufacturer's serial number	MPL	MPL	MPL	MPL	MPC	MPC	MPC	MPC	MPC	MPC
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of secondary windings	2	2	2	2	2	2	2	2	2	2
Output current 1	0.135 A	0.135 A	0.27 A	0.27 A	0.835 A	0.835 A	0.36 A	0.36 A	0.18 A	0.18 A
Output current 2	0.135 A	0.135 A	0.27 A	0.27 A	0.13 A	0.15 A	0.05 A	0.06 A	0.03 A	0.035 A
Output voltage 1	15 V	12 V	15 V	12 V	15 V	12 V	15 V	12 V	15 V	12 V
Output voltage 2	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
physical size	47.244mm X 39.624mm X 21.59mm	L1.86XB1.56XH0.85 (inch)	L2.5XB2XH1.065 (inch)	63.5mm X 50.8mm X 27.051mm	41.275mm X 57.15mm X 34.925mm	41.275mm X 57.15mm X 34.925mm	47.625mm X 36.5125mm X 41.275mm	47.625mm X 36.5125mm X 41.275mm	41.275mm X 31.75mm X 34.925mm	41.275mm X 31.75mm X 34.925mm
main rating	DUAL 115V	DUAL 115V	DUAL 115V	DUAL 115V	SINGLE 115V	SINGLE 115V	SINGLE 115V	SINGLE 115V	SINGLE 115V	SINGLE 115V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER	SPLIT BOBBIN POWER TRANSFORMER	SPLIT BOBBIN POWER TRANSFORMER	SPLIT BOBBIN POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER
width	39.624 mm	39.624 mm	50.8 mm	50.8 mm	57.15 mm	57.15 mm	36.5125 mm	36.5125 mm	31.75 mm	31.75 mm
Maker	-	-	-	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
