DINCS-64S-SG30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DINCS-64S-SG30

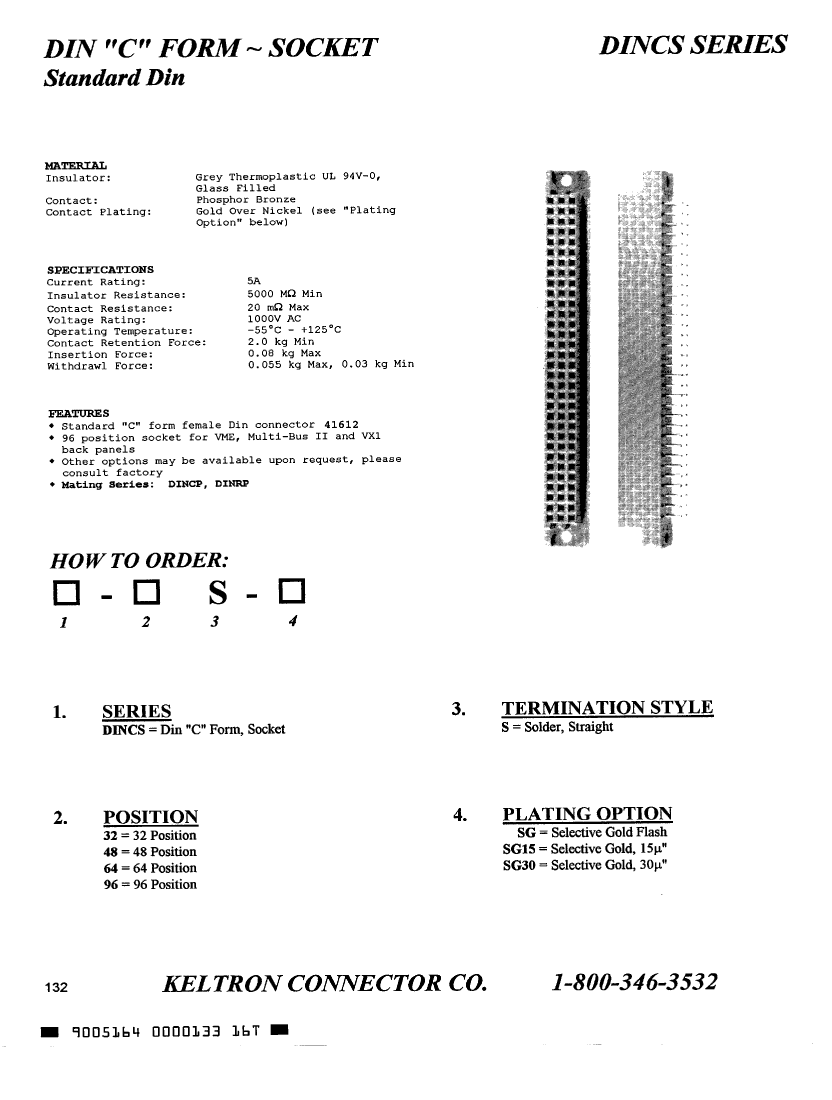

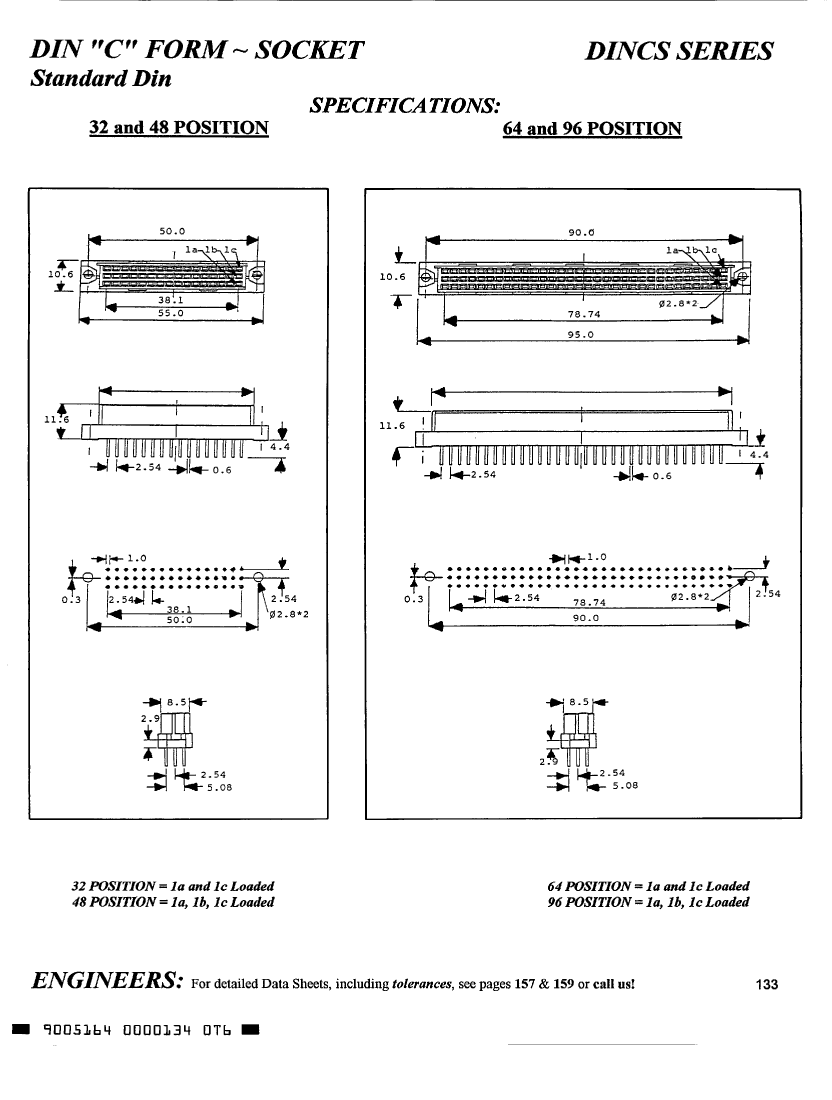

DINCS-64S-SG30: DescriptionBoard Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Plug; CategoryThe connector The connector; File Size123KB，2 Pages; ManufacturerKeltron Connector Company

Download Datasheet Parametric Compare View All

DINCS-64S-SG30 Overview

Board Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Plug

DINCS-64S-SG30 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD "C" FORM
body width	0.417 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
maximum insertion force	.7784 N
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	DINCS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.173 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DINCS-64S-SG30 Related Products

	DINCS-64S-SG30	DINCS-96S-SG	DINCS-96S-SG30	DINCS-96S-SG15
Description	Board Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Plug	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Plug	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Plug	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STANDARD "C" FORM	STANDARD "C" FORM	STANDARD "C" FORM	STANDARD "C" FORM
body width	0.417 inch	0.417 inch	0.417 inch	0.417 inch
subject depth	0.457 inch	0.457 inch	0.457 inch	0.457 inch
body length	3.74 inch	3.74 inch	3.74 inch	3.74 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	.7784 N	.7784 N	.7784 N	.7784 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	DINCS	DINCS	DINCS	DINCS
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,C	A,B,C	A,B,C	A,B,C
PCB row number	3	3	3	3
Number of rows loaded	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	30u inch	FLASH inch	30u inch	15u inch
Rated current (signal)	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.173 inch	0.173 inch	0.173 inch	0.173 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	64	96	96	96
Evacuation force-minimum value	.3058 N	.3058 N	.3058 N	.3058 N
Base Number Matches	1	1	1	1
