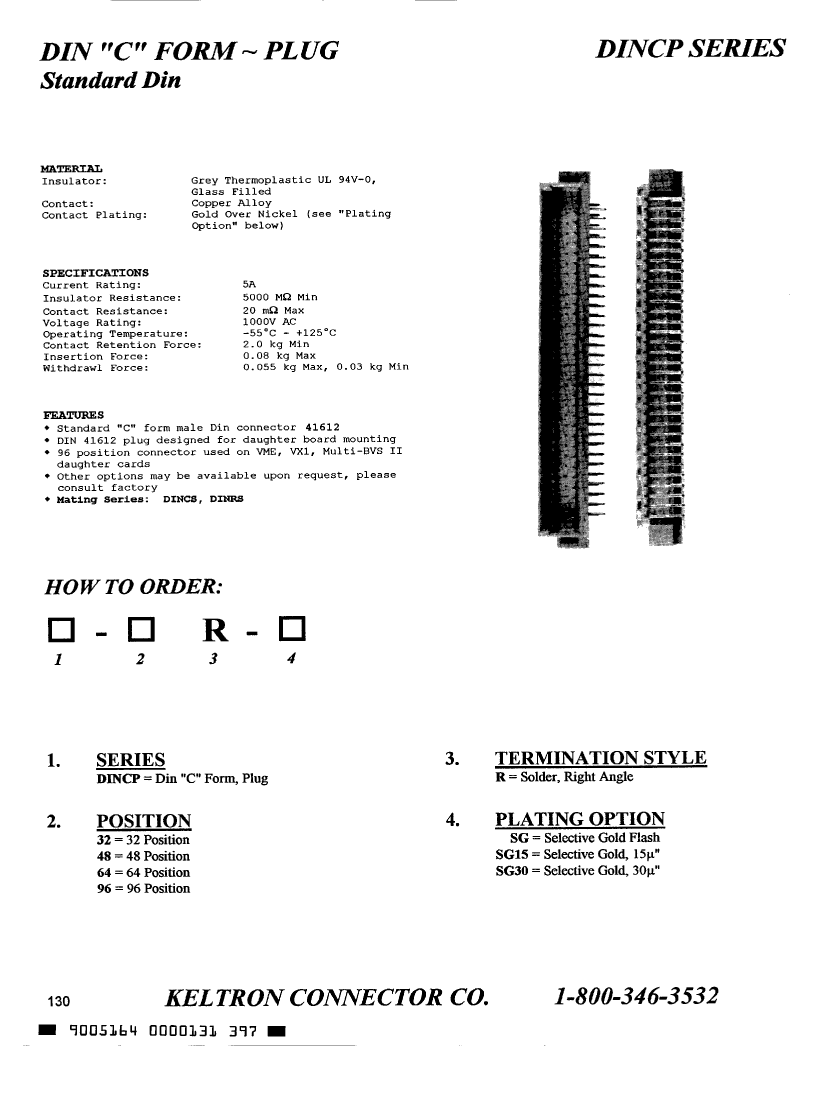

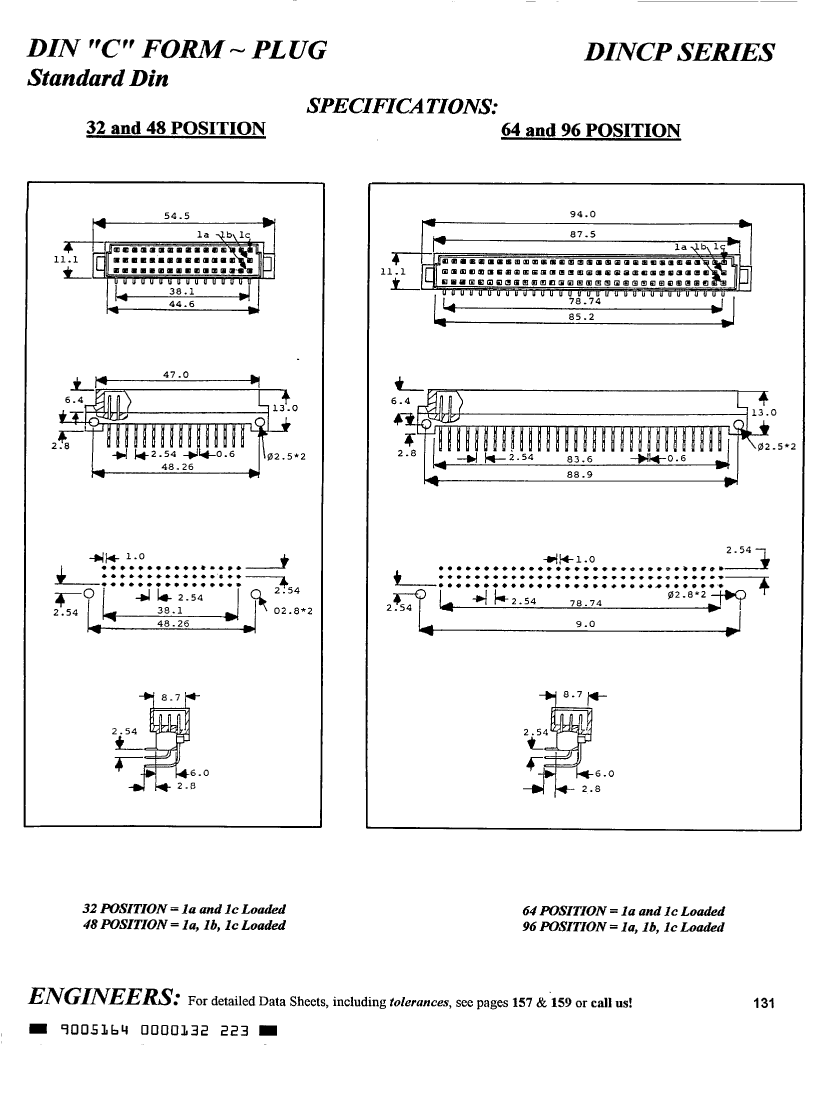

DINCP-48R-SG: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size109KB，2 Pages; ManufacturerKeltron Connector Company

Download Datasheet Parametric Compare View All

DINCP-48R-SG Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle

DINCP-48R-SG Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD "C" FORM
body width	0.437 inch
subject depth	0.512 inch
body length	2.146 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
maximum insertion force	.7784 N
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	DINCP
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DINCP-48R-SG Related Products

	DINCP-48R-SG	DINCP-48R-SG15	DINCP-32R-SG	DINCP-96R-SG15
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle	Board Euro Connector, 32 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STANDARD "C" FORM	STANDARD "C" FORM	STANDARD "C" FORM	STANDARD "C" FORM
body width	0.437 inch	0.437 inch	0.437 inch	0.437 inch
subject depth	0.512 inch	0.512 inch	0.512 inch	0.512 inch
body length	2.146 inch	2.146 inch	2.146 inch	3.701 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	.7784 N	.7784 N	.7784 N	.7784 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	DINCP	DINCP	DINCP	DINCP
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,B,C	A,B,C	A,C	A,B,C
PCB row number	3	3	3	3
Number of rows loaded	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	FLASH inch	15u inch	FLASH inch	15u inch
Rated current (signal)	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	48	48	32	96
Evacuation force-minimum value	.3058 N	.3058 N	.3058 N	.3058 N
Base Number Matches	1	1	1	1
