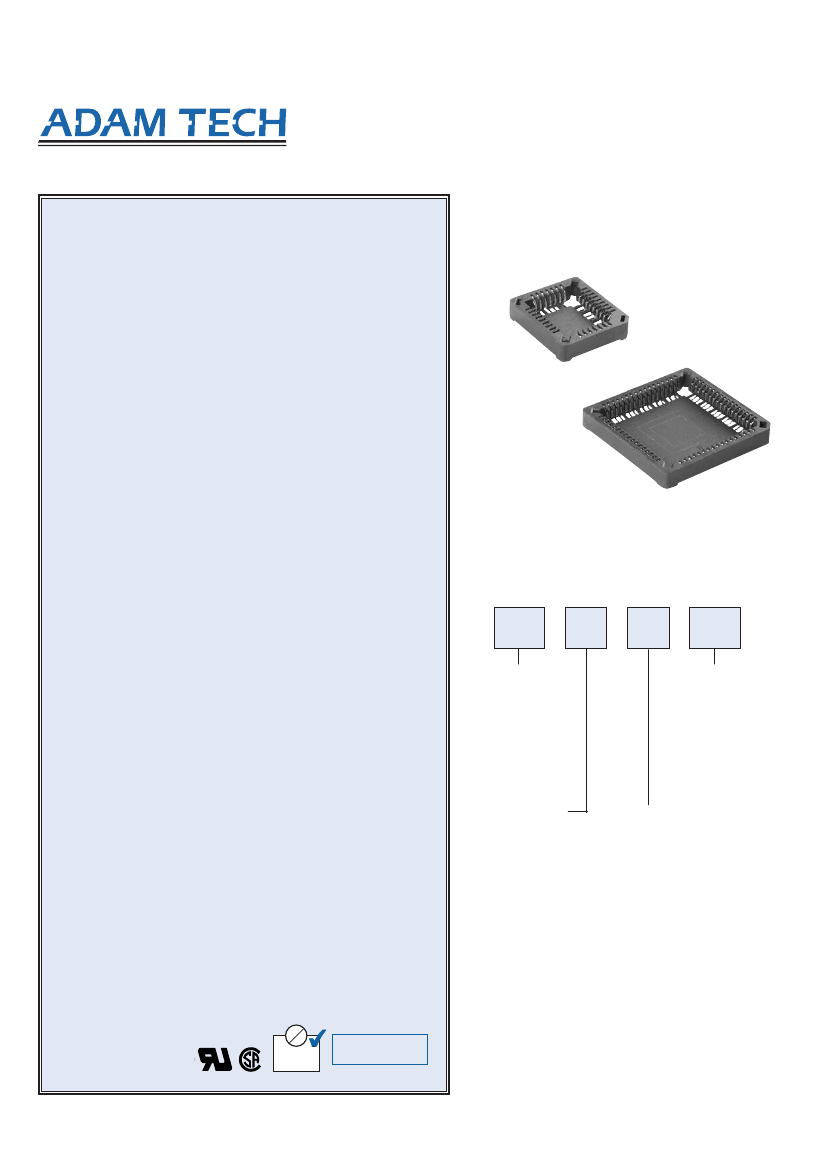

PLCC SOCKETS
Adam Technologies, Inc.
PLASTIC LEADED CHIP CARRIER SOCKET
SURFACE MOUNT
PLCC SERIES
INTRODUCTION:
Adam Tech SMT PLCC Series Sockets are low profile, thin wall
sockets designed to convert plastic leaded chips to a thru-hole PCB
format on a .100" centerline grid. They conform to all applicable EIA
and JEDEC standards. Adam Tech’s superior precision stamped
contact design provides consistent, high retention contacts for all
size chips. Chip exchanges or replacements are easily made with
Adam Tech’s chip remover part no. PLCC-EXT.
FEATURES:
Full range of sizes from 20P ~ 100P
Consistent, uniform high retention contacts
Compatible with wide range of chip sizes
No solder wicking design
Hi Temp PPS insulator
Open frame design for viewable solder joints
MATING PLASTIC LEADED CHIPS:
All EIA / JEDEC compliant PLCC
SPECIFICATIONS:
Material:
Standard Hi-Temp insulator: PPS, Glass reinforced, rated UL94V-0
Insulator Color: Brown
Contacts: Phosphor Bronze
Contact Plating:
Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 30 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 6.35 oz max.
Withdrawal force: 1.0 oz min
Temperature Rating:
Operating temperature: -55°C to +105°C
Soldering process temperature: 260°C
PACKAGING:
Anti-ESD plastic tubes
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
ORDERING INFORMATION
PLCC
SERIES
INDICATOR
PLCC
= Plastic
Leaded
Chip
Carrier
Socket
68
AT
SMT
CONTACT
CONFIGURATION
SMT
= Low profile body,
surface mount leads
CONTACTS
20, 28, 32,
44, 52, 68, 84
PLATING
AT
= Tin-plated
AG
= Gold-plated
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
OPTIONS:
Add designator(s) to end of part number
P
= With polarizing pegs
TR
= Tape and reel packaging
186
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
