TUC11-350-48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TUC11-350-48

TUC11-350-48: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,; CategoryPower/power management The power supply circuit; File Size162KB，2 Pages; ManufacturerSemiconductor Circuits Inc

Download Datasheet Parametric Compare View All

TUC11-350-48 Overview

DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,

TUC11-350-48 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	20 V
Nominal input voltage	48 V
JESD-30 code	R-XSMA-X5
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	UNSPECIFIED
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	18 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

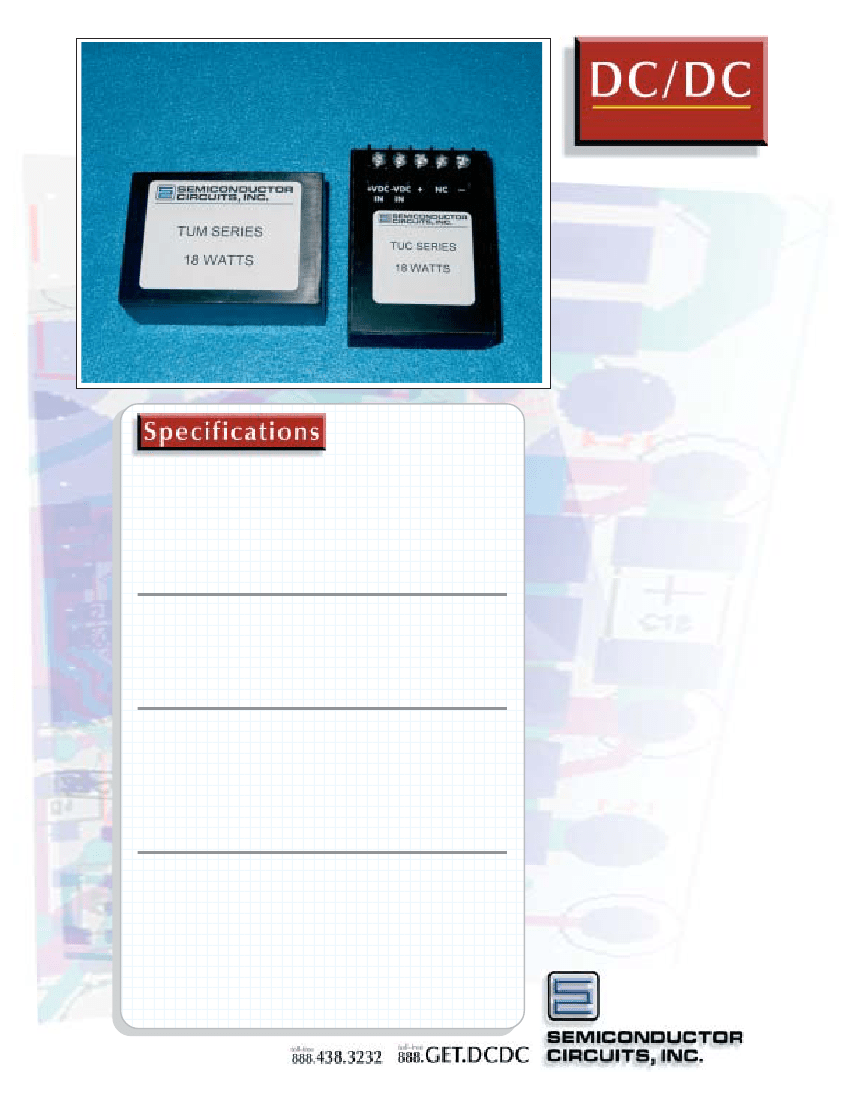

Preview

Download Datasheet

View All

765432121098765432109876543210987654321

ENVIRONMENTAL

GENERAL

OUTPUT

INPUT

All specifications are typical at nominal line and full load at 25°C unless

otherwise noted and are subject to change without notice.

Voltage Tolerance

Ripple and Noise

Short Circuit Protection

Temperature Coefficient

Regulation:

Line

Load

Efficiency

I/O Isolation

Switching Frequency

Operating Temperature

Storage Temperature

Cooling

Filtering

Reverse Polarity Protected

Voltage Range

TUM/TUC Series

0.5%

1.0%

77% (typ)

500 Vdc

100khz (typ)

-25°C to +71°C No Derating

-25°C to +105°C

Free-air Convection

± 1%

50mV pk-pk

Continuous Power Cycle

0.02% / °C

9-36Vdc

20-72Vdc

All Models

To Nominal Input Current

External Fuse Required

4:1 ultra wide input range

9-36 Vdc

20-72 Vdc

100kHz switching frequency

Continuous short circuit

protection

Six-sided shielding

These units are ideally suited for

telecommunications and applications

having a widely varying input voltage

such as automotive test equipment,

process control, minicomputers, and

geosurvey equipment.

Applications

he 18-Watt TUC/TUM Series

operates over an ultra wide input

range of 9-36 Vdc or 20-72 Vdc.

Efficiencies of 77% are typical over

varying load conditions of 25% to

100%. Additional features include input

reverse polarity protection, short circuit

protection with auto restart, overvoltage

protection, and an operating tempera-

ture range of –25°C to +71°C with no

derating.

Single Outputs

18 Watts

TUC11-350-48 Related Products

	TUC11-350-48	TUC13-120-18	TUM11-350-48	TUM13-120-48	TUM12-150-48	TUM12-150-18	TUC12-150-18	TUM11-350-18	TUC11-350-18	TUM13-120-18
Description	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	36 V	72 V	72 V	72 V	36 V	36 V	36 V	36 V	36 V
Minimum input voltage	20 V	9 V	20 V	20 V	20 V	9 V	9 V	9 V	9 V	9 V
Nominal input voltage	48 V	18 V	48 V	48 V	48 V	18 V	18 V	18 V	18 V	18 V
JESD-30 code	R-XSMA-X5	R-XSMA-X5	R-XDMA-P5	R-XDMA-P5	R-XDMA-P5	R-XDMA-P5	R-XSMA-X5	R-XDMA-P5	R-XSMA-X5	R-XDMA-P5
Maximum load regulation	1%	1%	1%	1%	1%	1%	1%	1%	1%	1%
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5	5	5	5
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	5.05 V	15.15 V	5.05 V	15.15 V	12.12 V	12.12 V	12.12 V	5.05 V	5.05 V	15.15 V
Minimum output voltage	4.95 V	14.85 V	4.95 V	14.85 V	11.88 V	11.88 V	11.88 V	4.95 V	4.95 V	14.85 V
Nominal output voltage	5 V	15 V	5 V	15 V	12 V	12 V	12 V	5 V	5 V	15 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	UNSPECIFIED	UNSPECIFIED	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	UNSPECIFIED	PIN/PEG	UNSPECIFIED	PIN/PEG
Terminal location	SINGLE	SINGLE	DUAL	DUAL	DUAL	DUAL	SINGLE	DUAL	SINGLE	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	18 W	18 W	18 W	18 W	18 W	18 W	18 W	18 W	18 W	18 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maker	-	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc
