M20x1.5 or 1/2" NPT
revision for dwg #
1PB-1005E13
rev
ch.no.
-
11/6/2007
-
description
original design
date
revised by
Philipp E.
93 mm
[3.7 in]
72.5 mm
[2.9 in]
78 mm
[3.1 in]
180 mm
[7.1 in]
3x
n
30 mm
[1.2 in]
2 contact blocks can be used with an
illuminated operator. 4 conctact blocks
can be used with any non-illuminated
operator.
This Drawing is the property of
R
unless otherwise specified:
all dimensions are in millimeters
third angle projection
titel

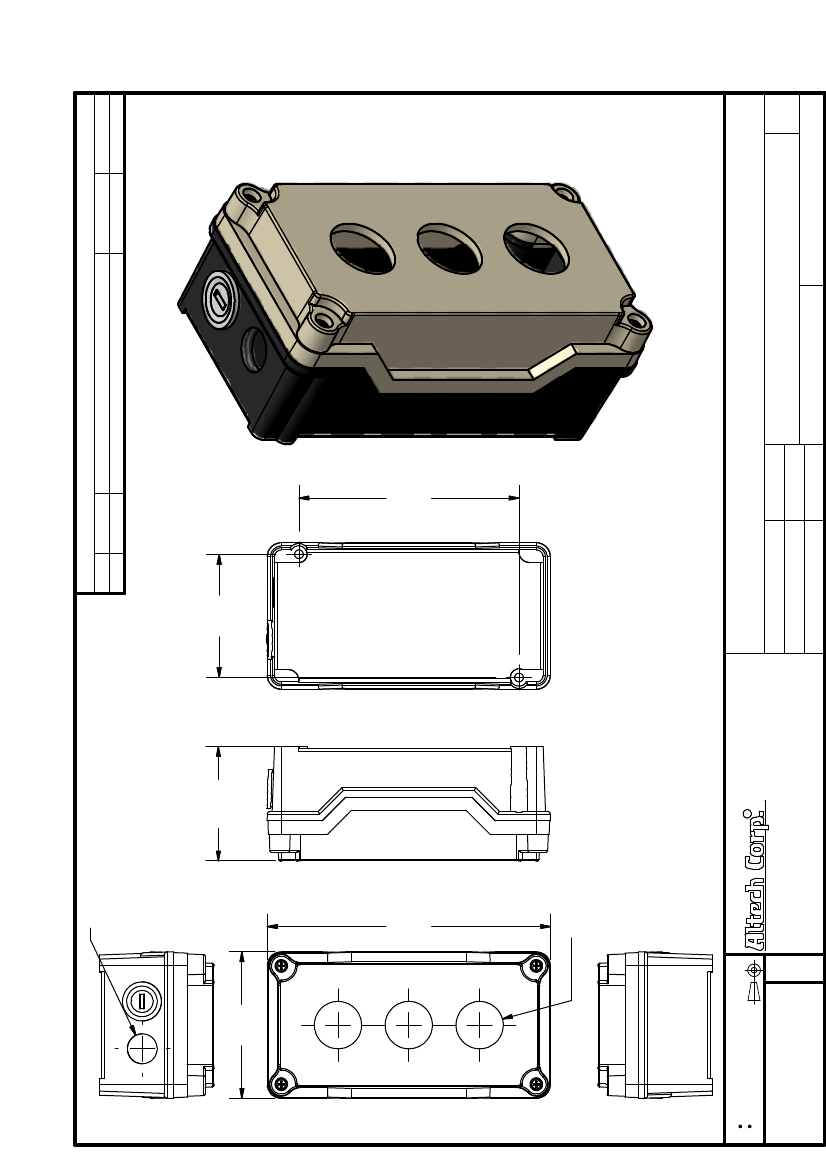

30 mm Aluminum Gravity Die Cast Enclosure 1005E13 (cable entry thread size:
2xM20) and 1007E13(cable entry thread size: 2x1/2"-14 NPT)
11/6/2007
11/6/2007
11/6/2007
140 mm
[5.5 in]
drawing no.:
rev.:
tolerance
XX
XX.X
XX.XX
ALL
=
=
=
=
±
0.5 mm
±
0.2 mm
−
mm
±
1 mm
35 Royal Road
Flemington, NJ 08822-6000
(908) 806-9400
Fax (908) 806-9490
1PB-1005E13
-
M
E
T
R
I
C
and is a confidential
disclosurelent without
consideration other than the
borrower’s agreement that it
shall not be reproduced,
copied, lent or disposed of
directly or indirectly nor
used for any purpose other
than that for which it is
specifically furnished.
drawn by:
Philipp Ernstberger
checked by:
Laszlo Gyorgypal
released by:
Laszlo Gyorgypal
scale:
-
sheet:
1
of:
1
