revision for dwg #
1PB-2009A13
rev
ch.no.
-
11/6/2007
-
description
original design
date
revised by
Philipp E.
M20x1.5 or 1/2" NPT
93 mm
[3.7 in]
87.5 mm
[3.4 in]
78 mm
[3.1 in]
90 mm
[3.5 in]
n
22 mm
[.9 in]
This Drawing is the property of
R
unless otherwise specified:
all dimensions are in millimeters
third angle projection
titel

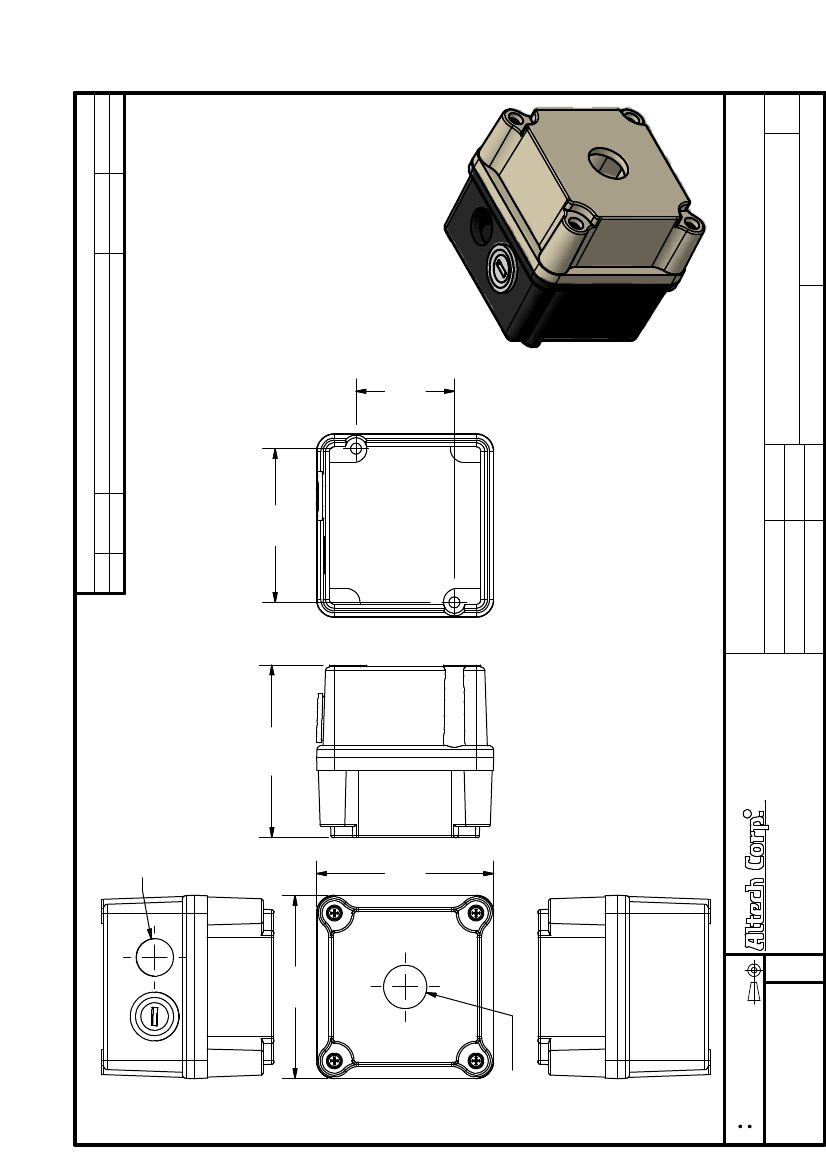

22 mm Aluminum Gravity Die Cast Enclosure 2009A13 (cable entry thread size:
2xM20) and 2016A13(cable entry thread size: 2x1/2"-14 NPT)
11/6/2007
drawing no.:
50 mm
[2.0 in]
rev.:
tolerance
XX
XX.X
XX.XX
ALL
=
=
=
=
±
0.5 mm
±
0.2 mm
−
mm
±
1 mm
35 Royal Road
Flemington, NJ 08822-6000
(908) 806-9400
Fax (908) 806-9490
1PB-2009A13
-
M
E
T
R
I
C
and is a confidential
disclosurelent without
consideration other than the
borrower’s agreement that it
shall not be reproduced,
copied, lent or disposed of
directly or indirectly nor
used for any purpose other
than that for which it is
specifically furnished.
drawn by:
Philipp Ernstberger
checked by:
Laszlo Gyorgypal
released by:
Laszlo Gyorgypal
scale:
-
sheet:
1
of:
1
