15-47-2507 datasheet, PDF - EEWORLD Datasheet

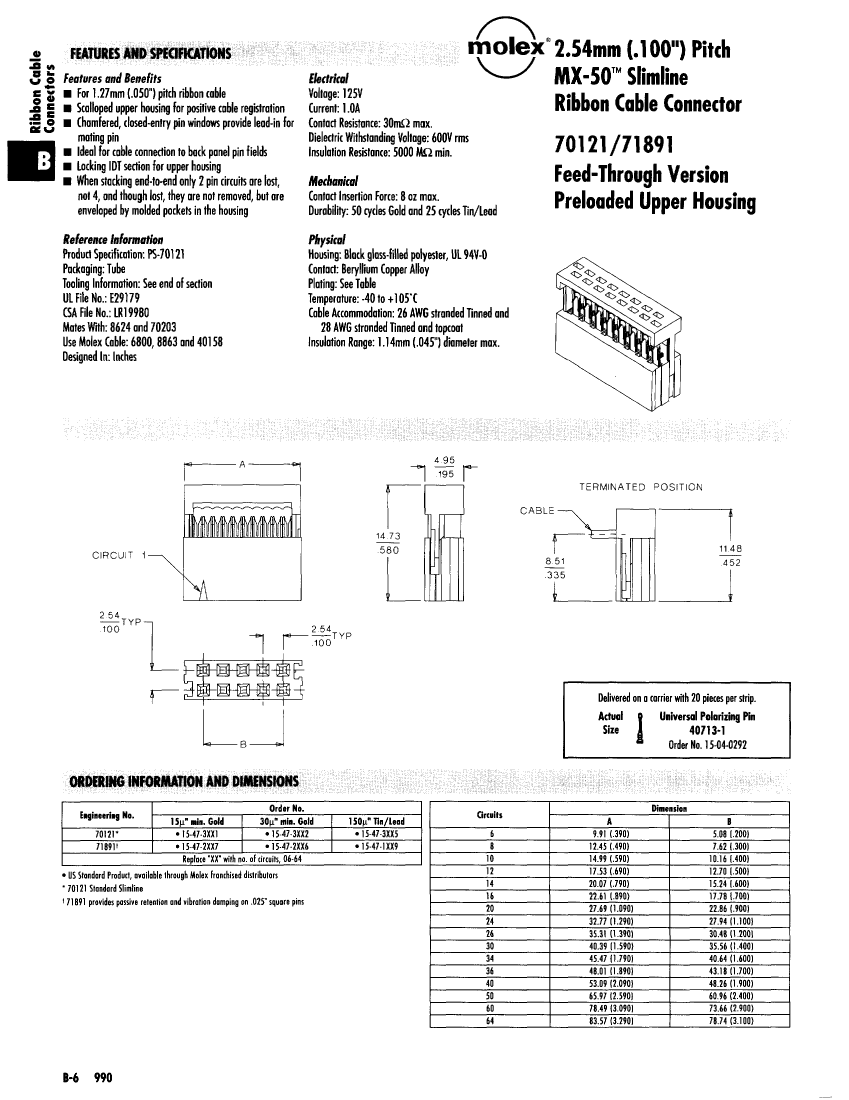

15-47-2507: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

15-47-2507 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	MX-50, POLARIZED
body width	0.195 inch
subject depth	0.452 inch
body length	2.59 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Minimum insulation diameter	0.045 inch
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	71891
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	50
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
