revision for dwg #
1PB-2ALPxLB-yyy
rev
ch.no.
-
11/1/2007
1
3
8
5
6
-
description
original design
date
revised by
Philipp E.
37 mm
[1.5 in]
Up to
four
switch contacts can be installed.
61 mm
[2.4 in]
5
85 mm
[3.4 in]
7
4
2
18 mm
[.7 in]
ITEM DESCRIPTION
max. 6 mm
[.25 in]
37 mm
[1.5 in]
50 mm
[2.0 in]
74 mm
[2.9 in]
98 mm
[3.9 in]
For maintained action use Cat. No.
2PPM
* = Selector Switch is supplied with mounting bracket, bulb holder
and LED (ITEM 1,2,3,4 and 5)
** = Switch Contacts must be ordered separatly
yyy
=
Voltage
012
=
12V AC/DC
024
=
24V AC/DC
048
=
48V AC/DC
110
=
110V AC/DC
230
=
230V AC
230D
=
230V DC
titel
CAT. NO.
2ALP1LB-yyy
2ALP3LB-yyy
2ALP4LB-yyy
LED Illuminated Metal
1*
2ALP5LB-yyy
Selector Switch
2ALP6LB-yyy
2ALP7LB-yyy
2ALP8LB-yyy
2* Mounting Bracket
2BRK
3* LED Bulb
MCB9xzzz
4* Mounting Bracket Screws
incl. in 2BRK
5* Blub Holder
2LHB
6 Panel
-
7 Maintained Action mechanisim 2PPM
S1
S2
8** Switch Contacts
S3
S4
COLOR
MIN. QTY. MAX. QTY.
White
1
1
Green
1
1
Red
1
1
Amber
1
1
Blue
1
1
Clear
1
1
Yellow
1
1
-
1
1
-
1
1
-
2
2
-
1
1
-
-
-
Black
1
1
Green
1
4
Red
1
4
Green/Gray
1
4
Red/Gray
1
4
This Drawing is the property of
R
unless otherwise specified:
all dimensions are in millimeters
third angle projection

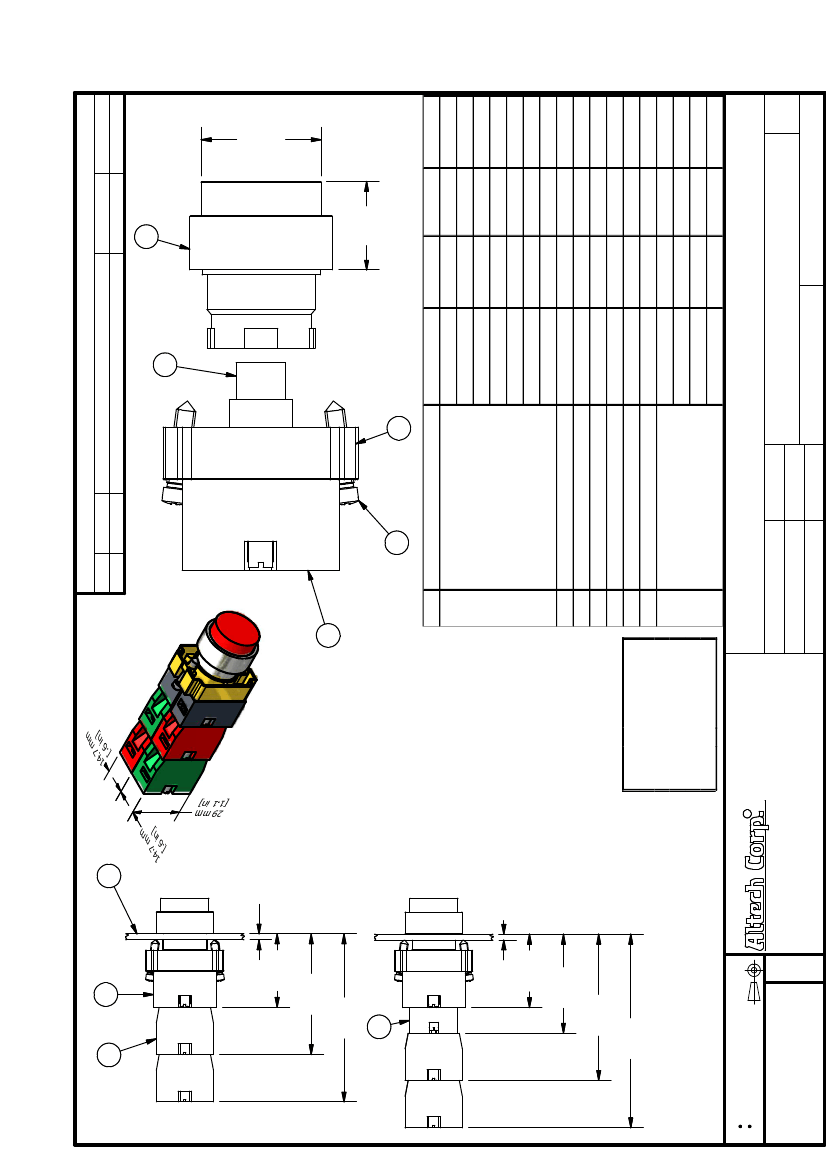

22 mm LED Illuminated Metal Projecting Operators 2ALPxLB-yyy
(x=color, yyy=voltage)
11/1/2007
11/1/2007
11/1/2007
drawing no.:
tolerance
XX
XX.X
XX.XX
ALL
=
=
=
=
±
0.5 mm
±
0.2 mm
−
mm
±
1 mm
24.4 mm
[1.0 in]
max. 6 mm
[.25 in]
rev.:
35 Royal Road
Flemington, NJ 08822-6000
(908) 806-9400
Fax (908) 806-9490
1PB-2ALPxLB-yyy
-
M
E
T
R
I
C
and is a confidential
disclosurelent without
consideration other than the
borrower’s agreement that it
shall not be reproduced,
copied, lent or disposed of
directly or indirectly nor
used for any purpose other
than that for which it is
specifically furnished.
drawn by:
Philipp Ernstberger
checked by:
Laszlo Gyorgypal
released by:
Laszlo Gyorgypal
scale:
-
sheet:
1
of:
1
