SP9129 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SP9129

SP9129: DescriptionWide Band Low Power Amplifier, 10MHz Min, 1500MHz Max, FP-4; CategoryWireless rf/communication Radio frequency and microwave; File Size75KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

SP9129 Overview

Wide Band Low Power Amplifier, 10MHz Min, 1500MHz Max, FP-4

SP9129 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	6 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

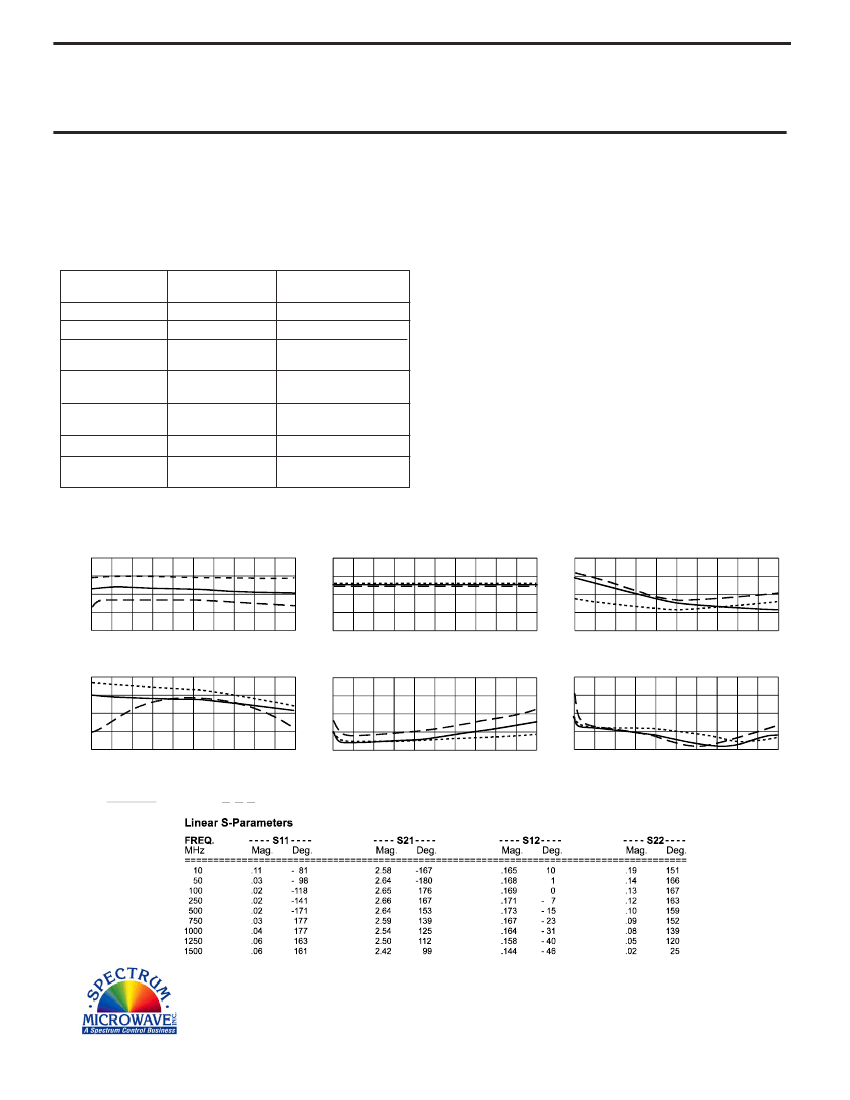

RF AMPLIFIER

MODEL

TM9129

Features

High Output Power: +20 dBm Typical

Environmental Screening Available

Operating Temp. -55 ºC to +85 ºC

Available as:

TM9129, 4 Pin TO-8 (T4)

TN9129, 4 Pin Surface Mount (SM3)

FP9129, 4 Pin Flatpack (FP4)

BX9129, Connectrized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+48 dBm (Typ.)

Second Order Two Tone Intercept Point.........+42 dBm (Typ.)

Third Order Two Tone Intercept Point.............+34 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

10-1500 MHz

+20

-15

<1.5:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10-1500 MHz

6.0 Min.

+19 Min.

-13.0 Min.

2.0:1 Max.

9.5* Max.

+15

100 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

* Noise Figure will be Greater Below 40 MHz

Typical Performance Data

Start 10 MHz

Gain (dB)

Reverse Isolation (dB)

Start 10 MHz

Stop 1500 MHz

Start 40 MHz

Noise Figure (dB)

- 10

- 20

- 30

- 40

Stop 1500 MHz

1 dB Comp. (dBm)

+23

+22

+21

+20

+19

Start 10 MHz

Stop 1500 MHz

2.0

1.5

1.0

Start 10 MHz

Input VSWR

2.0

1.5

1.0

Stop 1500 MHz

Start 10 MHz

Output VSWR

Stop 1500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

08/05/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
